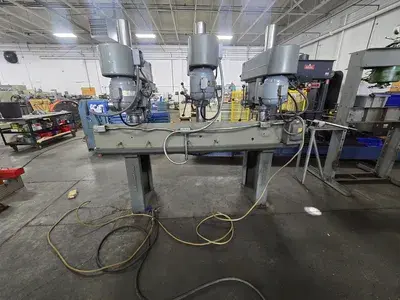

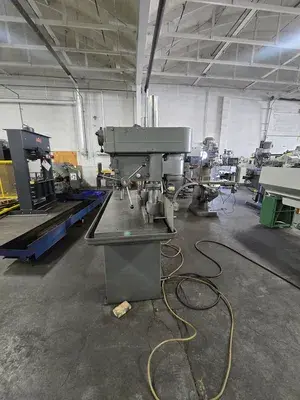

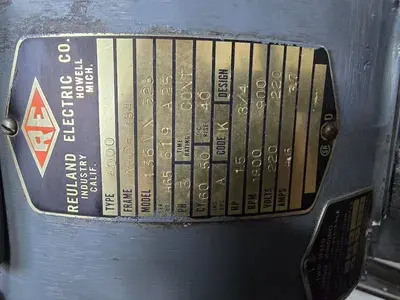

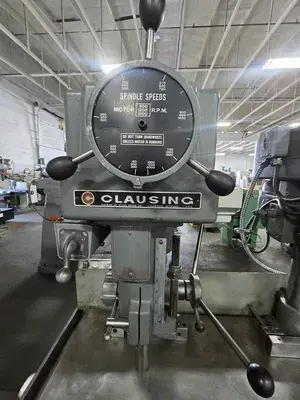

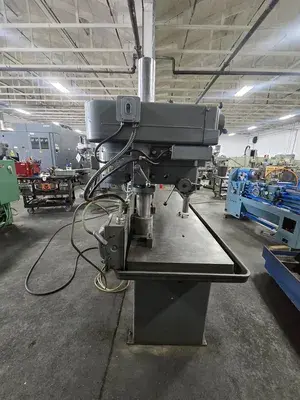

THE CLAUSING MODEL 22VI DRILL PRESS FEATURES A 20-INCH SWING, A DRILL CAPACITY UP TO 1 1/4 INCH DIAMETER (HAND FEED), AND WEIGHS 1700 LBS. IT IS EQUIPPED WITH A NO. 3 MT (MORSE TAPER) SPINDLE WITH 6 1/2 INCHES OF TRAVEL AND A 2 1/2 INCH QUILL DIAMETER. SPINDLE SPEEDS ARE VARIABLE, RANGING FROM 150 TO 2,000 RPM, CONTROLLED BY A VARIABLE-SPEED DRIVE SYSTEM WITH A SHEAVE PULLEY SYSTEM. THE MAXIMUM DISTANCE FROM THE SPINDLE NOSE TO THE TABLE IS APPROXIMATELY 33 INCHES. POWER IS SUPPLIED BY A 1 1/2 HP, TWO-SPEED, THREE-PHASE MOTOR, CURRENTLY WIRED FOR 230V 3 PHASE, BUT CAPABLE OF 220V OR 440V OPERATION. THE UNIT RESTS ON A 24" X 80" ADJUSTABLE TABLE AND HAS A 4-INCH COLUMN DIAMETER. FEATURES INCLUDE A HEAVY-DUTY PRECISION HEAD WITH BALL BEARINGS FOR EXACT ALIGNMENT AND AN ADJUSTABLE DEPTH STOP.
