USED WISCONSIN SDB-436-12G

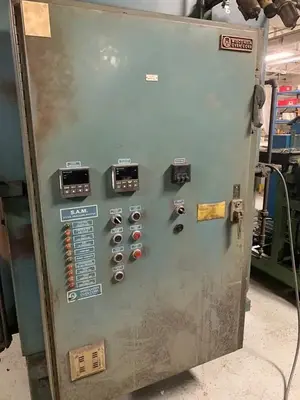

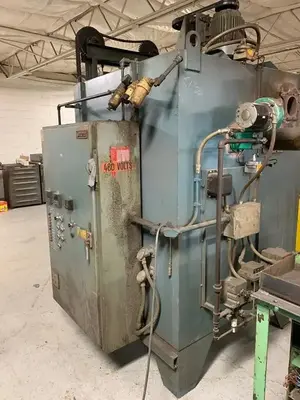

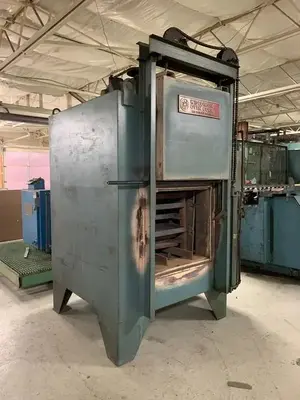

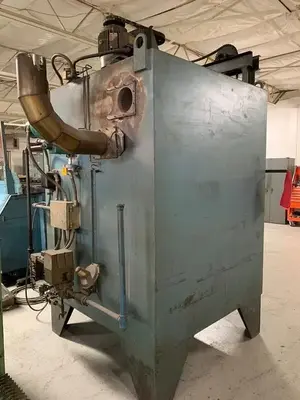

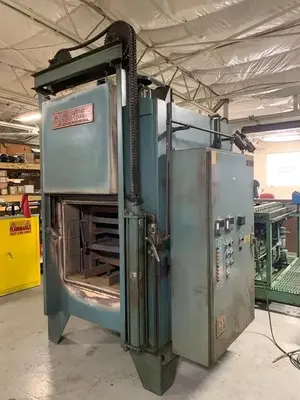

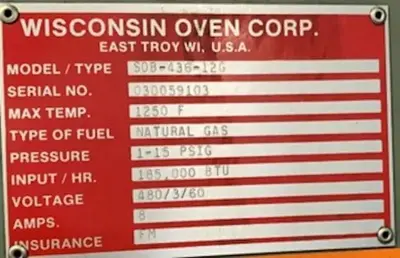

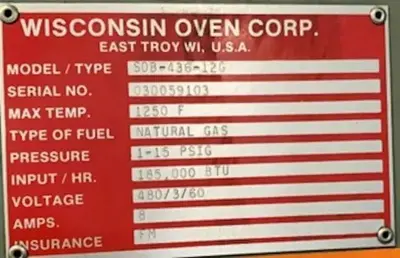

THIS IS A WISCONSIN OVEN MODEL SDB-436-12G BATCH TEMPER, GAS-FIRED FURNACE. IT IS RATED FOR A MAXIMUM TEMPERATURE OF 1250ºF AND FEATURES WORKABLE DIMENSIONS OF 24 INCHES WIDE BY 36 INCHES DEEP BY 18 INCHES HIGH. THE OVERALL UNIT DIMENSIONS ARE 71 INCHES WIDE BY 75 INCHES DEEP BY 104 INCHES HIGH. HEATING IS ACHIEVED VIA GAS-FIRED ECLIPSE BURNERS WITH A RATING OF 185,000 BTU. ELECTRICAL POWER REQUIREMENTS ARE 480 V, 3-PHASE, 60 CYCLE. INTERNAL CIRCULATION IS MANAGED BY A RECIRCULATING FAN RATED AT 28,000 CFM, DRIVEN BY A 3.0 HP MOTOR. THE CONTROL SYSTEM IS MOUNTED ON THE SIDE OF THE FURNACE AND INCLUDES A HONEYWELL DC2001 TEMPERATURE CONTROLLER, A HONEYWELL DC2005 HIGH LIMIT, A TYPE K THERMOCOUPLE, AND AN ATC CYCLE TIMER.
