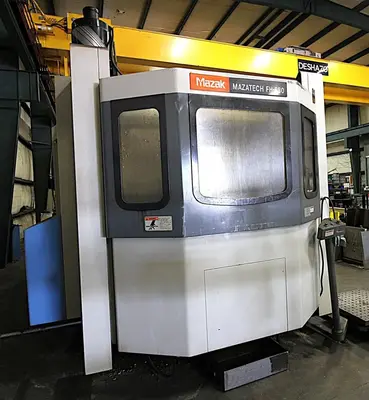

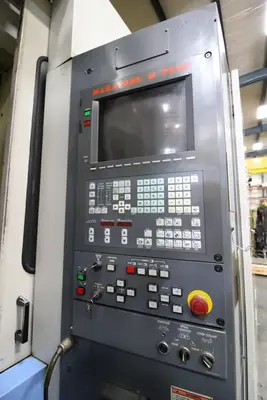

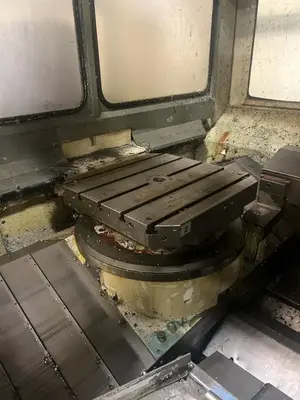

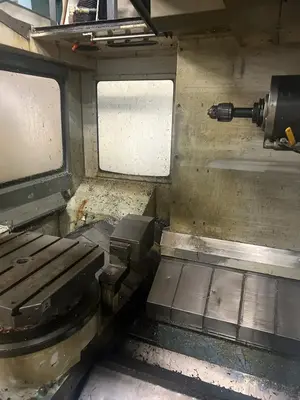

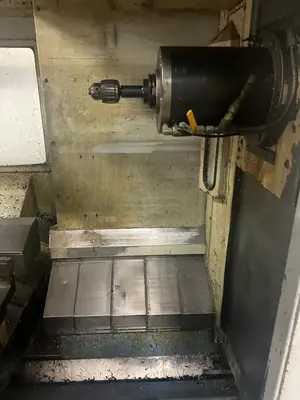

THE MAZAK FH680 HORIZONTAL MACHINING CENTER OPERATES WITH A MAZATROL M PLUS CONTROL SYSTEM AND FEATURES TWO 24.8" X 24.8" PALLETS CAPABLE OF 1-DEGREE INDEXING. ITS WORKING ENVELOPE IS DEFINED BY X, Y, AND Z AXIS TRAVELS OF 41.94", 31.5", AND 32.4", RESPECTIVELY. THE MACHINE'S SPINDLE ACHIEVES SPEEDS UP TO 10,000 RPM, DRIVEN BY A 40 HP MAIN MOTOR AND UTILIZING A CAT-50 TAPER. BOTH THE RAPID TRAVERSE AND MAXIMUM FEED RATES REACH 1,260 IPM. KEY WORKING DISTANCES INCLUDE A SPINDLE NOSE TO TABLE CENTER RANGE OF 7.87" TO 40.35" AND A PALLET TOP TO SPINDLE CENTER RANGE OF 3.93" TO 35.4". IT IS EQUIPPED WITH AN 80-TOOL MAGAZINE, BOASTING A 2.3-SECOND TOOL-TO-TOOL CHANGE TIME. THE MAXIMUM TABLE LOAD CAPACITY IS 3,300 LBS, WITH SUPPORT FOR TOOLS WEIGHING UP TO 66 LBS AND MEASURING UP TO 19.68" IN LENGTH. THE MACHINE HAS A TOTAL OPERATING WEIGHT OF 43,600 LBS AND A FOOTPRINT OF 270" X 134" X 128" (L X W X H).
