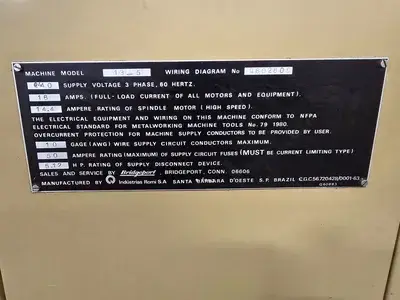

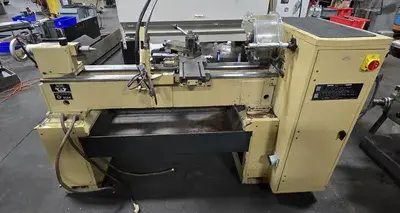

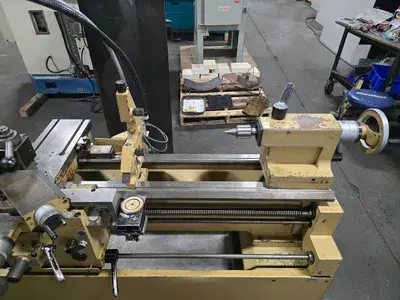

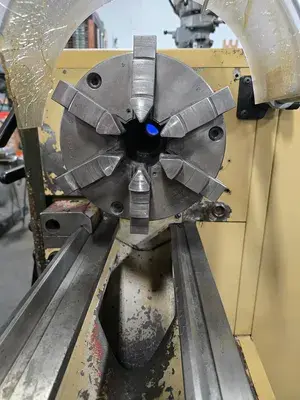

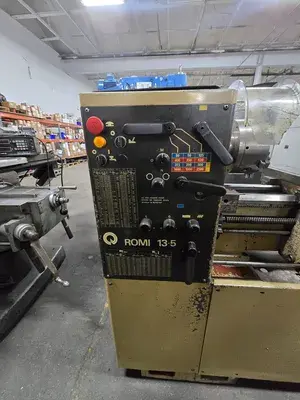

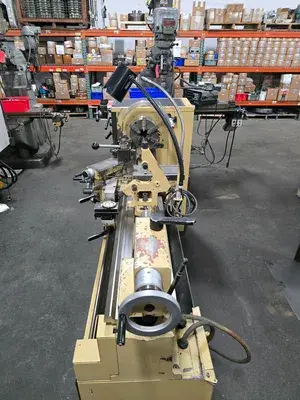

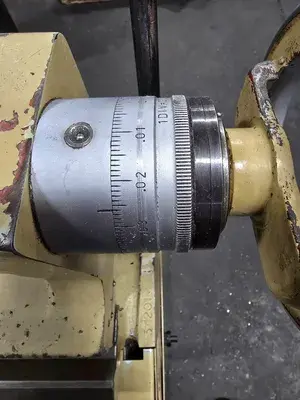

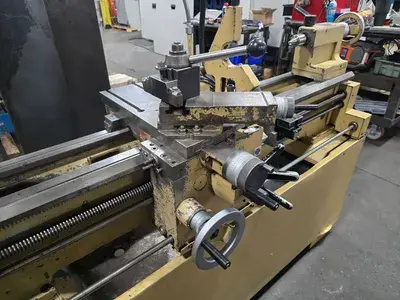

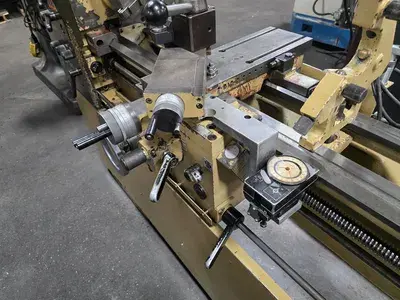

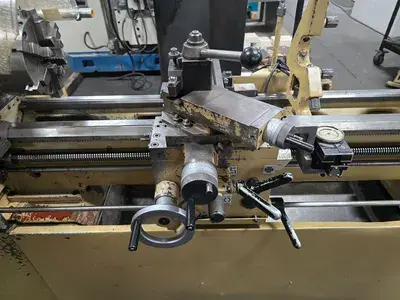

THE BRIDGEPORT ROMI 13-5 LATHE IS A ROBUST MACHINE DESIGNED FOR PRECISION TURNING APPLICATIONS. KEY SPECIFICATIONS INCLUDE A 13-INCH SWING OVER THE WAYS AND A 40-INCH DISTANCE BETWEEN CENTERS. THE SPINDLE FEATURES A 1-3/8-INCH BORE AND IS DRIVEN BY A 5 HP MOTOR, SUPPORTING 12 SPINDLE SPEEDS RANGING FROM 50 TO 2500 RPM. THREADING CAPABILITIES ENCOMPASS BOTH INCH (4–72 TPI) AND METRIC (0.2–7 MM) STANDARDS. THE MACHINE IS EQUIPPED WITH A MORSE TAPER #3 TAILSTOCK WITH 4.75 INCHES OF QUILL TRAVEL. APPROXIMATE DIMENSIONS ARE 76 INCHES (LR) X 30 INCHES (FB) X 51 INCHES (H), WITH AN APPROXIMATE WEIGHT OF 2000 POUNDS. STANDARD EQUIPMENT INCLUDES AN 8-INCH BUCK 6-JAW CHUCK, ALORIS TOOL POST WITH HOLDER, JACOBS CHUCK, THREADING DIAL, MICROMETER CARRIAGE STOP, AND A COOLANT SYSTEM. ELECTRICS ARE RATED FOR 220/440V/3PH/60HZ.
