USED LEBLOND 15 REGAL

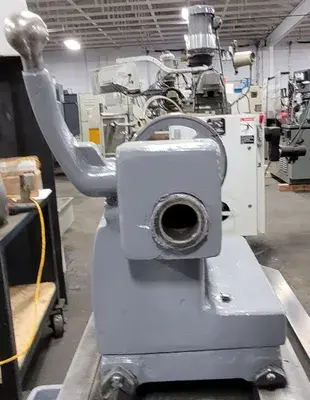

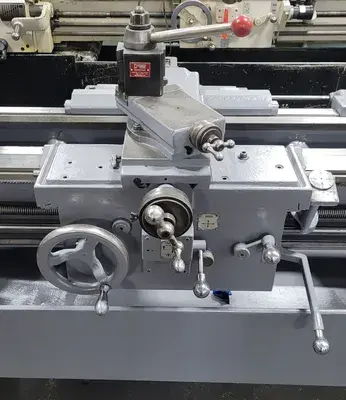

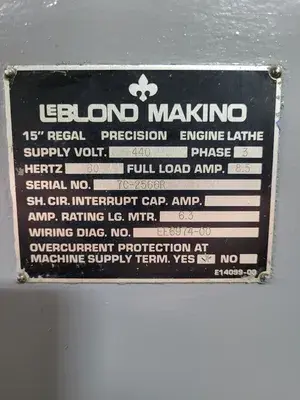

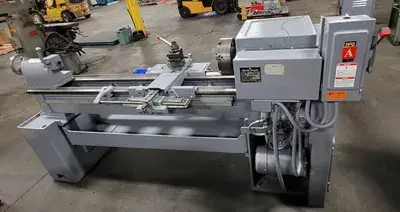

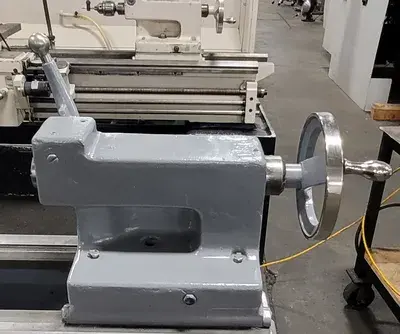

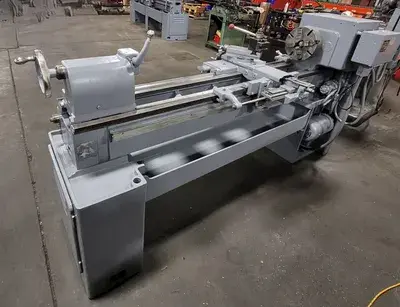

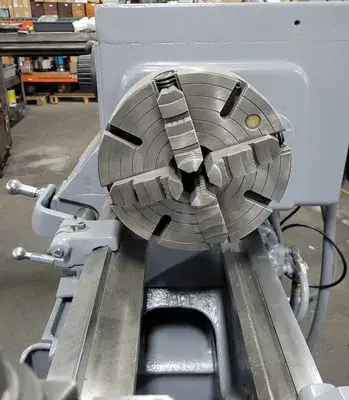

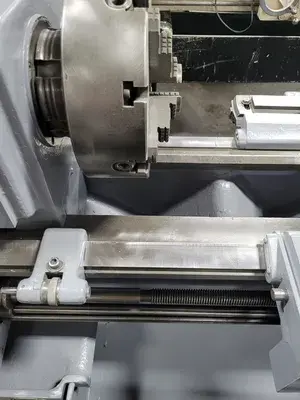

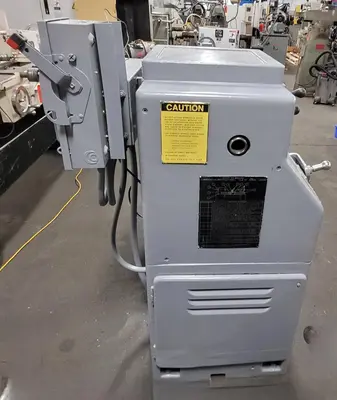

THE LEBLOND 15 REGAL ENGINE LATHE FEATURES A 15-INCH RATED SWING OVER THE BED (15.5-INCH ACTUAL) AND A 9.5-INCH SWING OVER THE CROSS SLIDE. IT IS AVAILABLE WITH A DISTANCE BETWEEN CENTERS THAT VARIES, INCLUDING 30 INCHES, 36 INCHES, OR 54 INCHES. THE SPINDLE SPEEDS ARE MANAGED THROUGH 12 SETTINGS, TYPICALLY RANGING FROM 45 TO 1800 RPM, THOUGH SOME MODELS MAY REACH 60 TO 2400 RPM. THE MACHINE UTILIZES A SPINDLE NOSE TYPE L0 AND HAS A SPINDLE BORE OF APPROXIMATELY 1.5 INCHES. POWER IS SUPPLIED BY A SPINDLE MOTOR RANGING FROM 3 HP UP TO 7.5 HP, OPERATING ON 440V 3 PHASE POWER. KEY MECHANICAL FEATURES INCLUDE A TAILSTOCK WITH A #3MT MORSE TAPER, CROSS SLIDE TRAVEL OF APPROXIMATELY 8.875 INCHES (7-7/8 INCHES), AND COMPOUND TRAVEL OF AROUND 3.875 INCHES (3-7/8 INCHES). THE APPROXIMATE WEIGHT OF THE LATHE IS 3,000 POUNDS.
