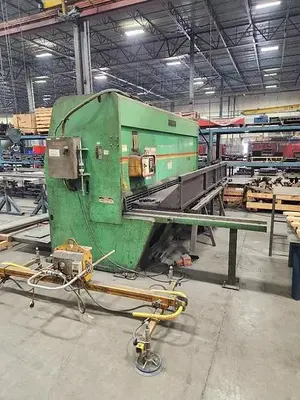

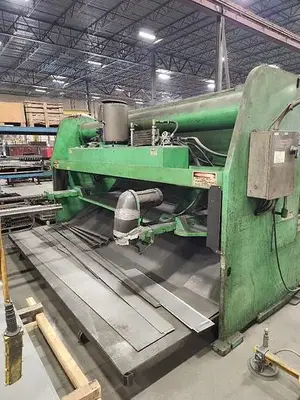

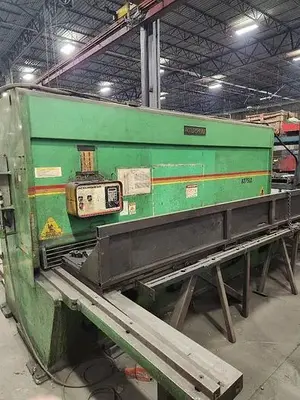

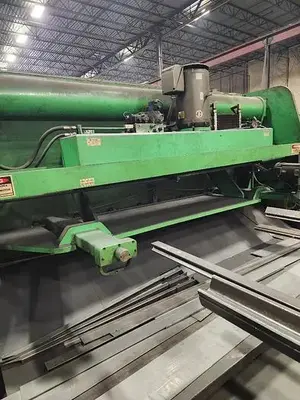

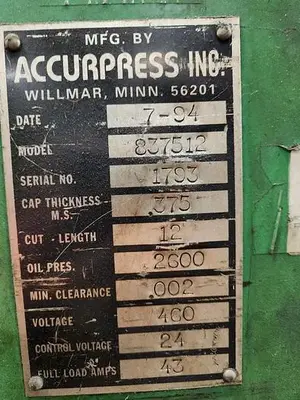

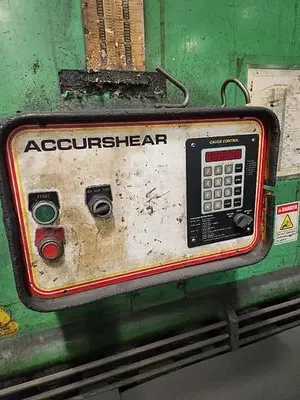

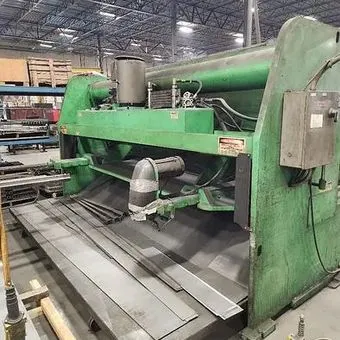

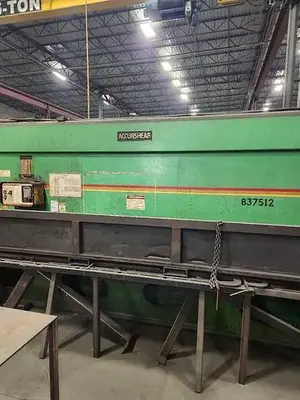

THIS ACCURPRESS MODEL 837512 IS AN ACCURSHEAR HYDRAMECHANICAL POWER SQUARING SHEAR USED FOR FABRICATING AND PRESSING APPLICATIONS. THIS MACHINE IS SPECIFIED WITH A NOMINAL SHEARING CAPACITY OF 12 FEET BY 3/8 INCH (0.375") AND UTILIZES A HYDRAULIC SYSTEM. THE SHEAR'S FUNCTIONALITY IS SUPPORTED BY A LENGTH OF KNIFE MEASURING 12'2" AND KNIFE DIMENSIONS OF 1" X 3". ESSENTIAL OPERATIONAL FEATURES INCLUDE A 36-INCH FRONT OPERATED POWER BACK GAUGE AND THE ACCURSHEAR LED DISPLAY CONTROL. IT IS ALSO EQUIPPED WITH A SQUARING ARM FEATURING FRONT SUPPORTS AND REQUIRES NO PIT FOR GAP CORRECTION. THE SHEAR IS POWERED BY A 20 HP MOTOR REQUIRING A 460/3/60 ELECTRICAL SYSTEM. TECHNICAL SPECIFICATIONS INCLUDE A MINIMUM CLEARANCE OF .002", A DEPTH OF GAP OF 12 INCHES, AND AN OPERATING OIL PRESSURE OF 2600 PSI. THE OVERALL DIMENSIONS ARE 157 INCHES IN LENGTH, 85 INCHES IN DEPTH, AND 90 INCHES IN HEIGHT, WITH AN APPROXIMATE WEIGHT OF 27,000 LBS.
