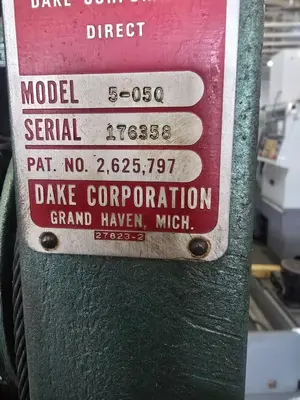

USED DAKE 5-050

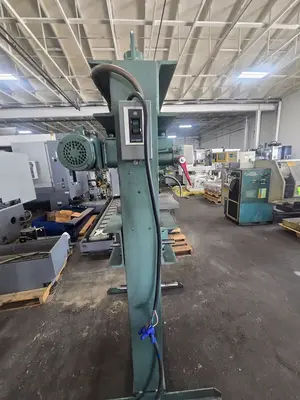

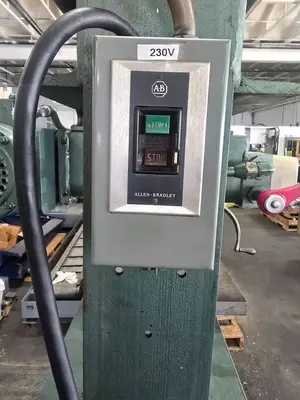

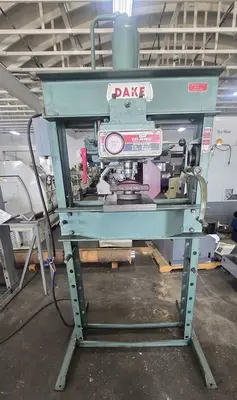

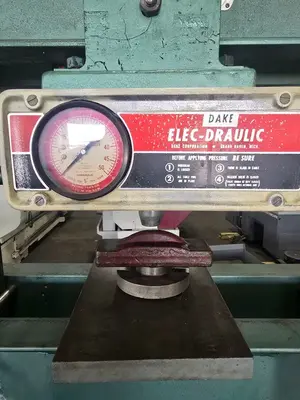

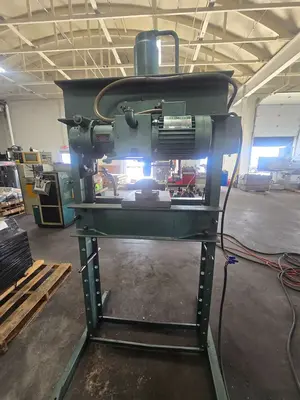

THIS DAKE 5-050 ELEC-DRAULIC H FRAME PRESS IS AN ELECTRIC-HYDRAULIC, SINGLE-ACTING PRESS WITH A 50-TON CAPACITY AND A 2 HORSEPOWER MOTOR, OPERATING ON 220V/440V, 3-PHASE POWER AT 1,800 RPM. IT FEATURES A RAM ADVANCE SPEED OF 40 IPM AND A PRESSING SPEED OF 7 IPM, WITH A RAM TRAVEL OF 10 INCHES. THE WORKING RANGE PROVIDES A MINIMUM RAM-TO-TABLE DISTANCE OF 5 INCHES UP TO A MAXIMUM OF 40 INCHES. THE MACHINE IS CONSTRUCTED WITH A WIDTH BETWEEN UPRIGHTS OF 32-3/4 INCHES AND A WIDTH BETWEEN TABLE CHANNELS OF 7-1/4 INCHES. THE MOVABLE WORK-HEAD HAS A HORIZONTAL TRAVEL OF 14-3/8 INCHES AND IS ROLLER MOUNTED ON BALL BEARINGS FOR OFF-CENTER WORK. THE PRESS'S FOOTPRINT IS 43-1/2 INCHES BY 36 INCHES, WITH A HEIGHT OF 87 INCHES AND AN OPERATIONAL WEIGHT OF 1,320 LBS. OPERATIONAL FEATURES INCLUDE VARIABLE RAM SPEED FOR PRECISE PRESSURE CONTROL, RAPID RAM RETURN, A STROKE INDICATOR FOR ACCURATE RAM CONTROL, AND A SAFETY RELIEF VALVE FOR OVERLOAD PROTECTION. THE ADJUSTABLE TABLE IS MANAGED BY A SELF-LOCKING HOIST. STANDARD EQUIPMENT INCLUDES THE FRAME, TWO FORGED STEEL V-BLOCKS, A FLAT RAM NOSE, A PRESSURE GAUGE, A SELF-LOCKING TABLE HOIST, A WORKHEAD, TWO STEEL TABLE PLATES, A V-RAM NOSE, A STROKE INDICATOR, AND A SAFETY RELIEF VALVE.
