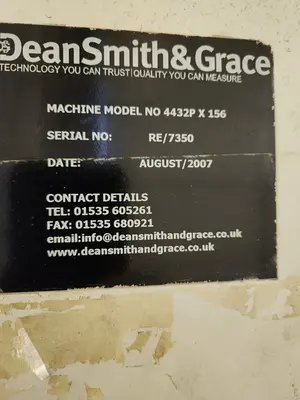

USED 2007 DEAN SMITH & GRACE 4432P X 156

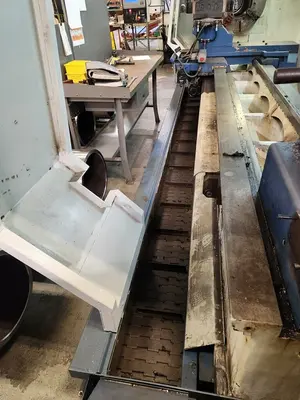

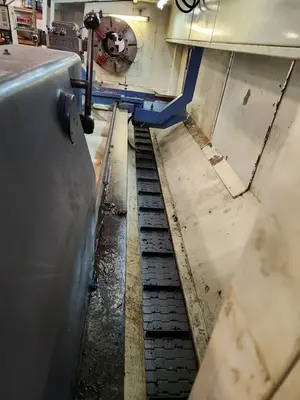

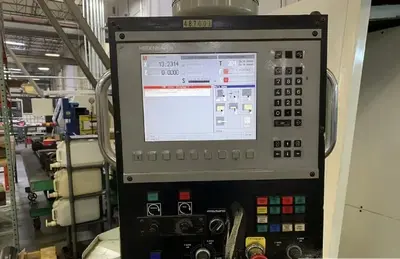

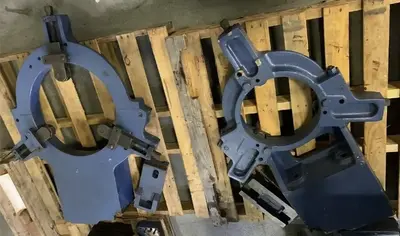

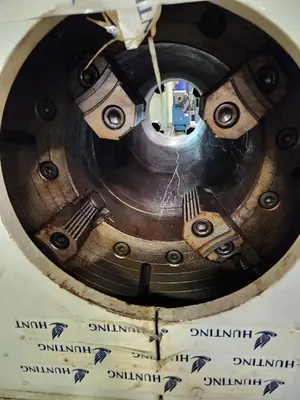

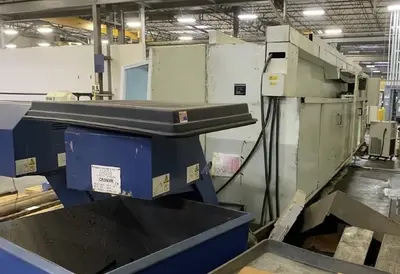

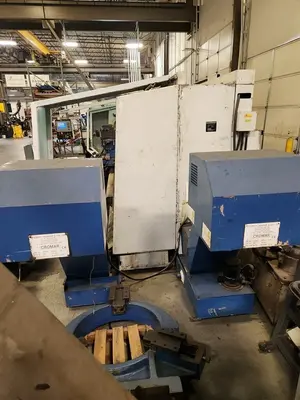

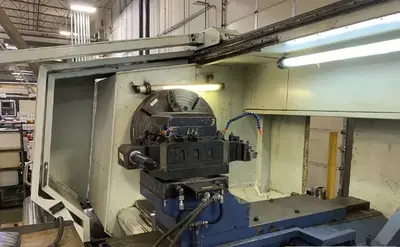

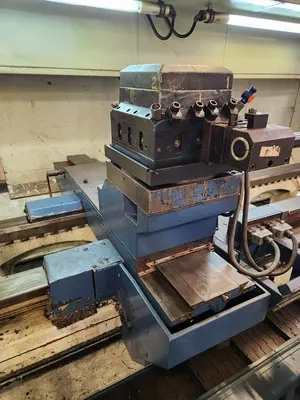

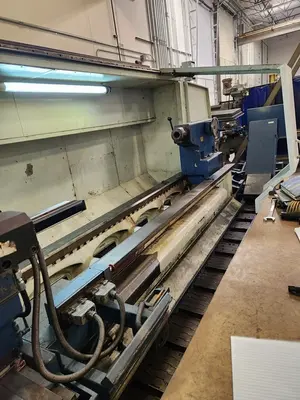

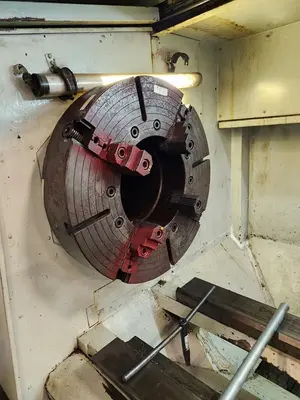

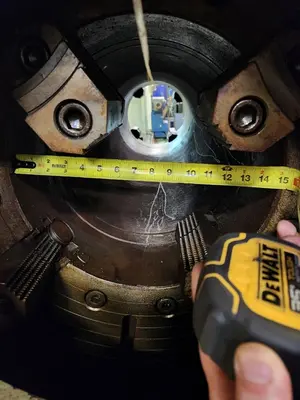

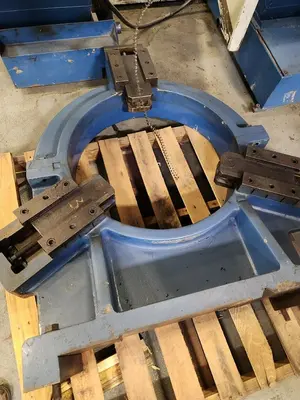

THE 2007 DEAN SMITH & GRACE 4432P X 156 IS A 2-AXIS CNC HOLLOW SPINDLE LATHE CONTROLLED BY A HEIDENHAIN 4110 MANUAL PLUS CNC SYSTEM. THIS MACHINE OFFERS A SUBSTANTIAL MAXIMUM SWING OF 44 INCHES AND A MACHINING LENGTH (DISTANCE BETWEEN CENTERS) OF 156 INCHES. THE MAXIMUM SWING OVER THE CROSS SLIDE, OR TURNING DIAMETER, IS 32 INCHES. IT FEATURES A LARGE 15-INCH SPINDLE BORE AND IS EQUIPPED WITH 31-INCH FRONT AND REAR CHUCKS. POWER IS SUPPLIED BY A 50 HP (34KW) MOTOR, ALLOWING FOR AN INFINITELY VARIABLE SPEED RANGE OF 12 TO 1,500 RPM. THE LATHE INCLUDES A HYDRAULIC AUTOMATIC 4 POSITION SOUTER TURRET TOOLPOST, A TAILSTOCK, AND THREE STEADY RESTS FOR ENHANCED CAPABILITY. A FRONT AND REAR SWARF CHIP CONVEYOR IS ALSO INTEGRATED. THE MACHINE OPERATES ON 400V 3 PHASE POWER.
