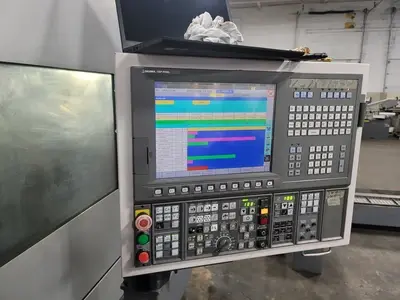

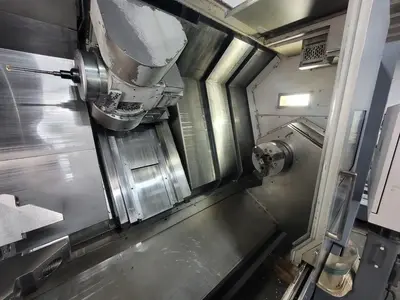

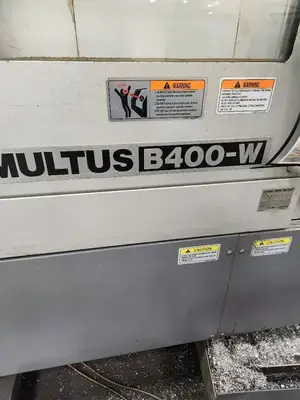

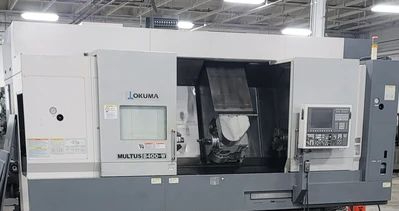

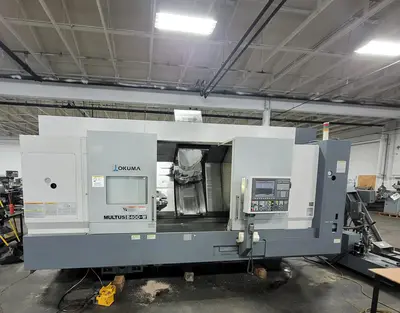

THE OKUMA MULTUS B400W MULTI-AXIS CNC TURNING CENTER IS A HIGH-PERFORMANCE MULTI-TASKING MACHINE INTEGRATING TURNING, MILLING, DRILLING, AND TAPPING CAPABILITIES. IT IS CONTROLLED BY THE SOPHISTICATED OSP-P200L SYSTEM AND FEATURES 8 AXES, INCLUDING ADVANCED MULTI-AXIS FUNCTIONALITY AND A B-AXIS HEAD TILT RANGE OF -30° TO 195° WITH 0.001° INDEX.

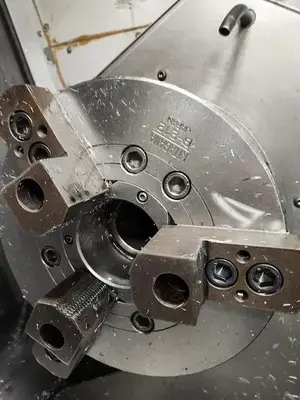

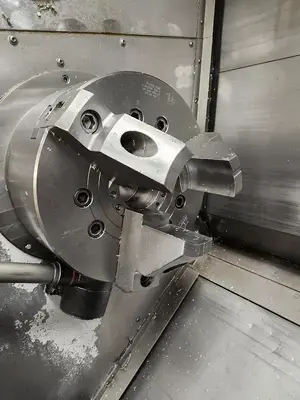

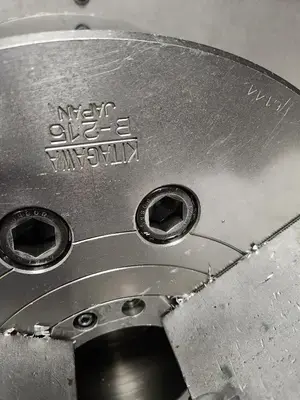

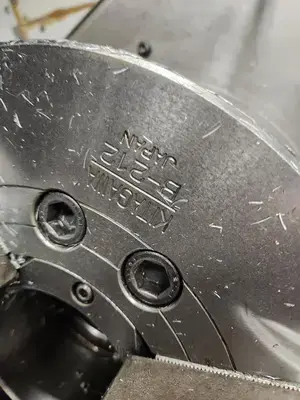

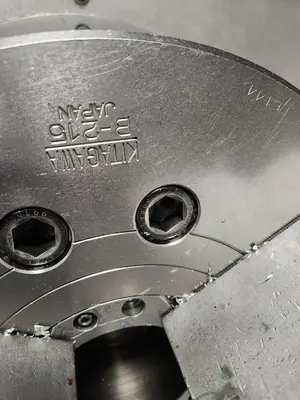

KEY SPECIFICATIONS INCLUDE A 27.95" SWING, A 26.37" TURNING DIAMETER, AND TRAVELS OF 27.17" (X), 9.06" (Y), 60.83" (Z), AND 61.06" (W). THE MAIN SPINDLE DELIVERS 40 HP AND 3,000 RPM, EQUIPPED WITH A 15" KITAGAWA B215 CHUCK, WHILE THE SUB-SPINDLE PROVIDES 3,800 RPM WITH A 12" KITAGAWA B212 CHUCK. THE MACHINE IS FURNISHED WITH A 40-TOOL CAPACITY AUTOMATIC TOOL CHANGER, LIVE TOOLING (10,000 RPM, 27 HP), COOLANT-THRU-SPINDLE, AND RENISHAW PROBING. INTEGRATED MACHINING CAPABILITIES, ROBUST DESIGN, AND THERMAL STABILITY TECHNOLOGY ENSURE HIGH PRECISION AND EFFICIENCY. THE UNIT'S DIMENSIONS ARE 227" X 107" X 118", WITH A WEIGHT OF 31,250 POUNDS.
