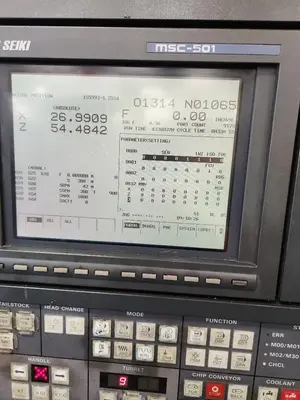

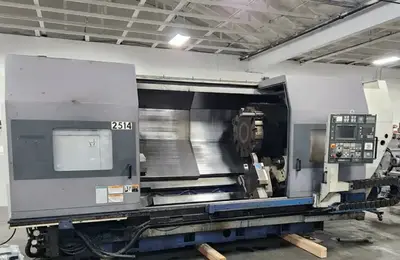

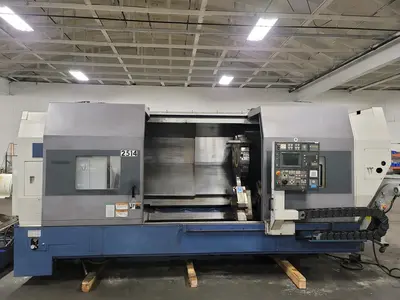

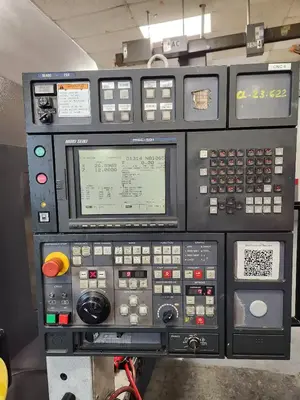

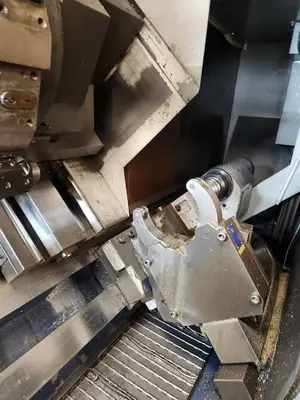

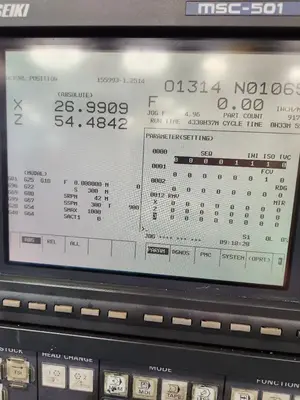

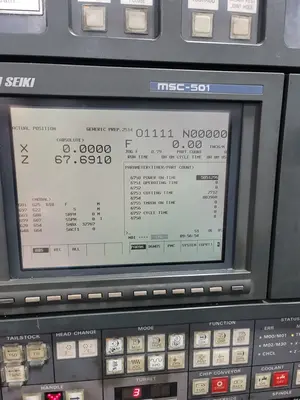

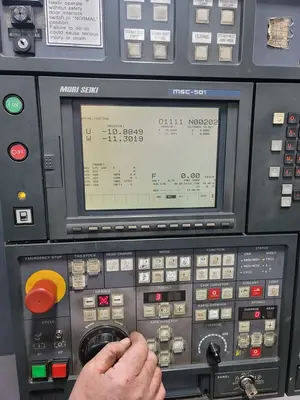

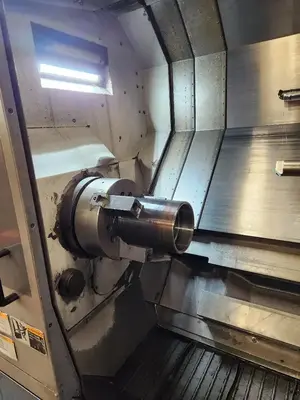

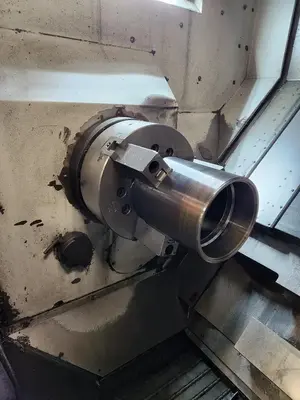

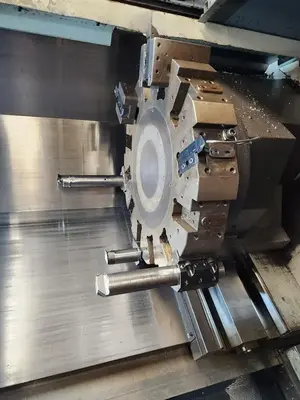

THE MORI SEIKI SL400B/2000 IS A POWERFUL CNC LATHE UTILIZING A MORI MSC-501 CONTROL SYSTEM. IT OFFERS A 27.95-INCH SWING OVER THE BED AND A MAXIMUM TURNING DIAMETER OF 24.4 INCHES. DESIGNED FOR SIGNIFICANT CAPACITY, IT PROVIDES AN 86.4-INCH DISTANCE BETWEEN CENTERS WITH Z-AXIS TRAVEL MEASURING 78.74 INCHES AND X-AXIS TRAVEL AT 13.58 INCHES. THE MACHINE IS EQUIPPED WITH A 15-INCH CHUCK AND AN A2-11 SPINDLE NOSE, CAPABLE OF HANDLING A 4.33-INCH BAR CAPACITY THROUGH THE SPINDLE. A 50 HP SPINDLE DRIVE MOTOR DELIVERS SPEEDS RANGING FROM 30 TO 3,000 RPM ACROSS TWO GEAR RANGES. TOOL CHANGES ARE MANAGED BY A 12-POSITION TURRET. RAPID TRAVERSE RATES ARE SPECIFIED AT 787.4 IPM FOR THE X-AXIS AND 944.8 IPM FOR THE Z-AXIS. KEY COMPONENTS INCLUDE A TAILSTOCK, A CHIP CONVEYOR, AND AN LNS STEADY REST WITH A 35MM TO 250MM RANGE. THE TOTAL MACHINE DIMENSIONS ARE 20' L X 103" W X 108" H, WITH AN APPROXIMATE WEIGHT OF 31,000 LBS.
