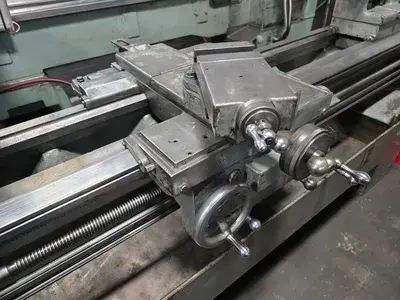

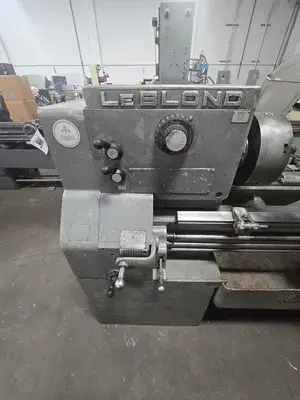

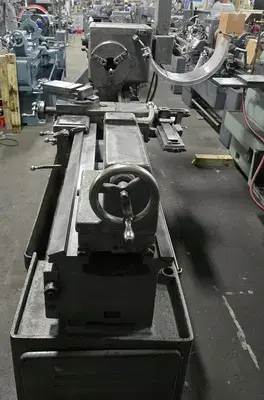

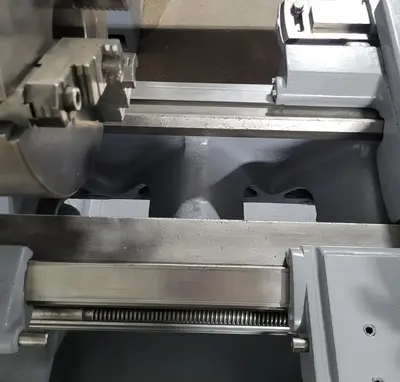

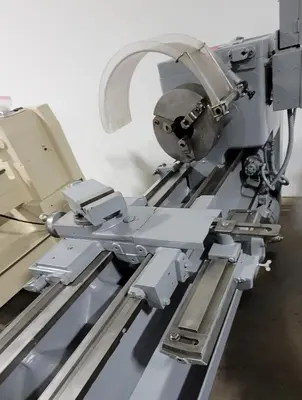

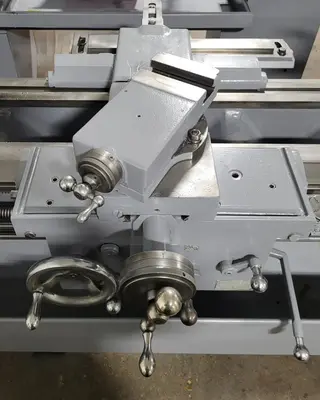

USED LEBLOND 19 REGAL

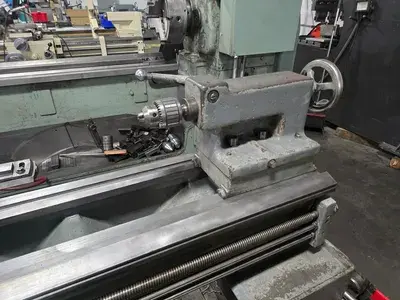

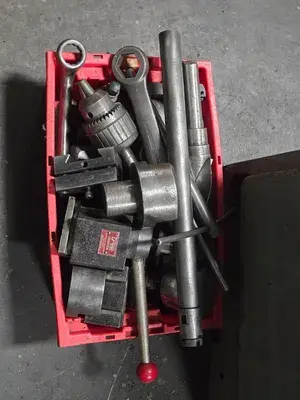

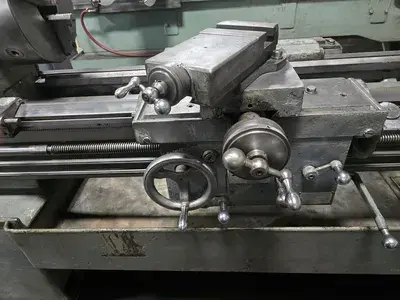

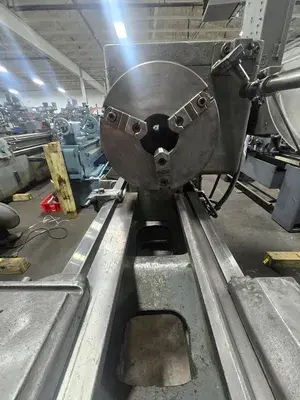

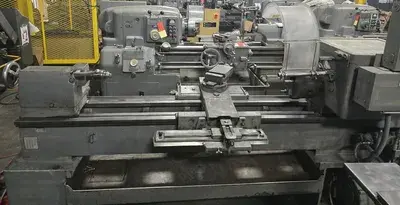

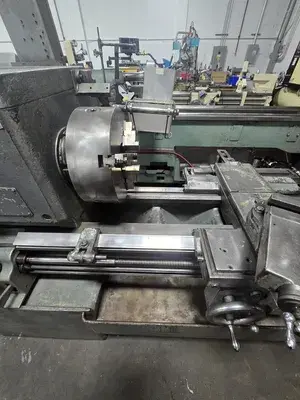

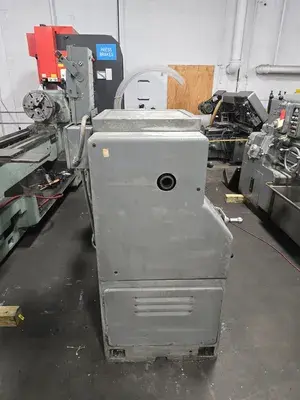

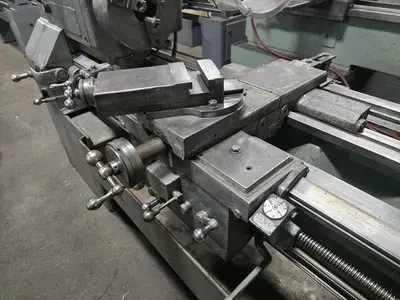

THE LEBLOND 19" X 54" REGAL SERVO SHIFT LATHE IS AN ENGINE LATHE FEATURING A SWING OVER BED OF APPROXIMATELY 19" TO 20" AND A DISTANCE BETWEEN CENTERS OF 54". THE SWING OVER THE CROSS SLIDE IS APPROXIMATELY 13". IT IS POWERED BY A 7.5 HP MOTOR AND INCLUDES A SPINDLE WITH A BORE RANGING FROM 1.75" TO 3" (VARIES). SPINDLE SPEEDS ARE MANAGED THROUGH 12 SPEEDS, RANGING FROM 40 TO 1600 RPM. THE LATHE OFFERS 48 FEEDS (E.G., 0.0023 TO 0.132 IPR) AND 48 THREADS (E.G., 2 TO 112 TPI). STANDARD ACCESSORIES INCLUDE A TAPER ATTACHMENT, A TAILSTOCK, A DORIAN TOOLPOST WITH HOLDERS, A TAILSTOCK CHUCK, AND A 12" 3-JAW BISON CHUCK. THE MACHINE IS WIRED FOR 480V 3 PHASE AND HAS APPROXIMATE DIMENSIONS OF 10' X 5' X 5' WITH A WEIGHT OF APPROXIMATELY 3400 LBS.
