USED DAKE 805076-2

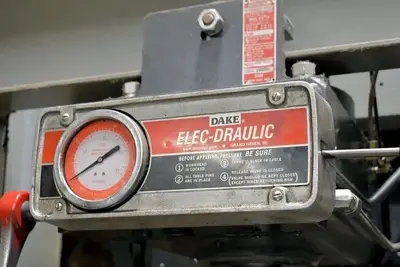

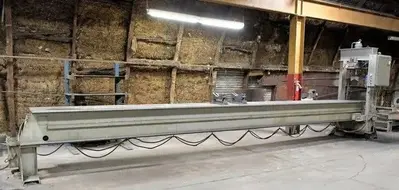

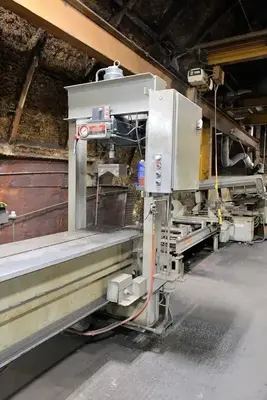

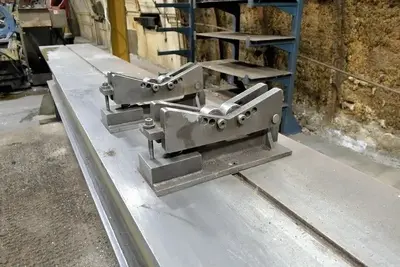

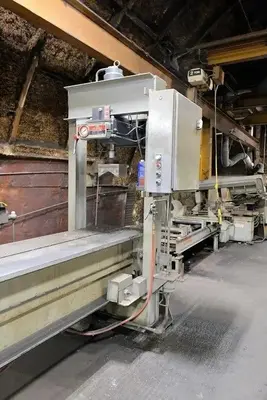

THIS 75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC STRAIGHTENING PRESS, MODEL 905076-2, FEATURES A TONNAGE CAPACITY OF 75 TON AND A STROKE LENGTH OF 10". THE MACHINE IS POWERED BY A 2 HP/1745 RPM MOTOR, UTILIZING A 230-460/3/60 ELECTRICAL SYSTEM. IT IS EQUIPPED WITH A POWER COLUMN TRAVERSE, A 2 HP ELEC-DRAULIC WORKHEAD, VARIABLE RAM SPEED, AND THREE ADJUSTABLE WORK SUPORTS. RAM SPEEDS ARE SPECIFIED AT 5 IPM FOR PRESSING AND 28 IPM FOR ADVANCING. CATALOG SPECIFICATIONS DETAIL A 30" DISTANCE BETWEEN HOUSINGS, AND A WORKTABLE MEASURING 312" (26') IN LENGTH BY 24" IN WIDTH. THE OVERALL MACHINE DIMENSIONS ARE 29' IN LENGTH BY 55" IN WIDTH, WITH AN OVERALL HEIGHT OF 102".
