USED 2005 BRIDGEPORT-HARDINGE SERIES 1

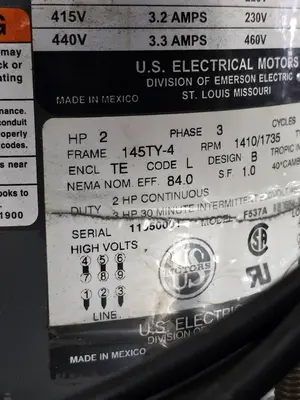

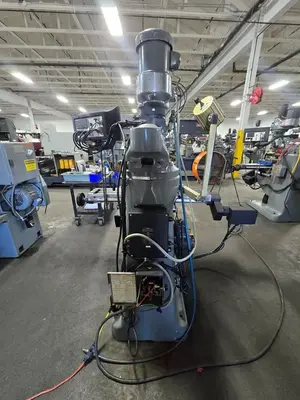

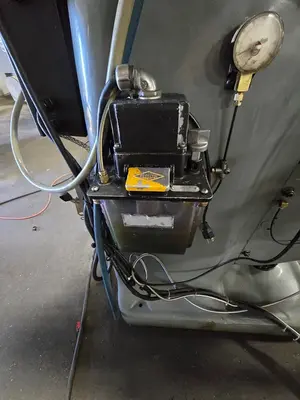

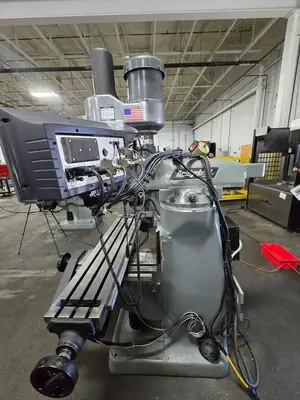

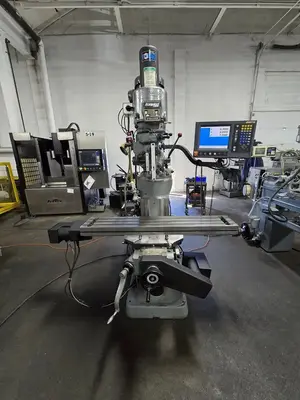

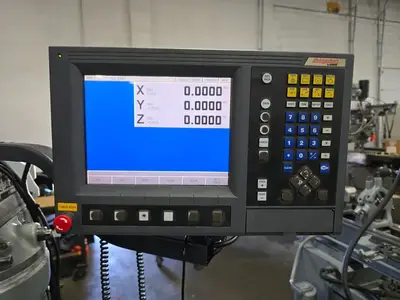

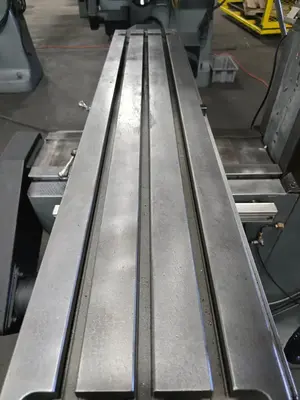

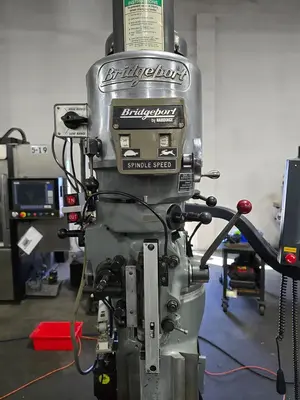

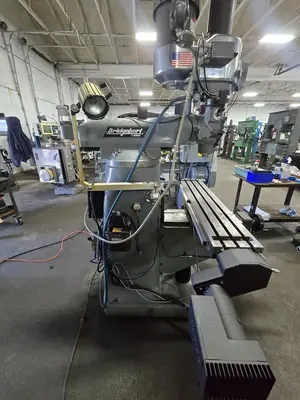

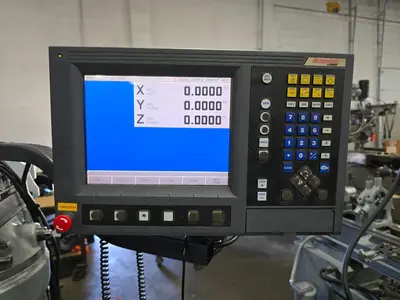

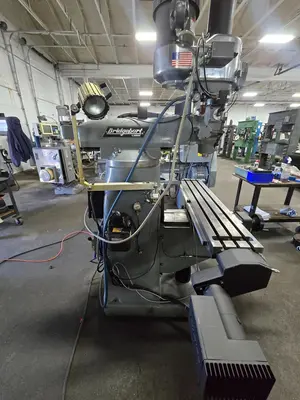

THIS 2005 BRIDGEPORT HARDINGE SERIES 1 CNC VERTICAL MILLING MACHINE, ALSO NOTED AS MODEL 2J, IS EQUIPPED WITH AN ACU-RITE MILLPWR MP2 2-AXIS CNC CONTROL AND 3-AXIS DRO. THE MACHINE FEATURES A TABLE SIZE OF 9 INCHES BY 48 INCHES, WITH MACHINE TRAVELS (X/Y) MEASURING 35 INCHES AND 12 INCHES. THE Z-AXIS TRAVEL IS 5 INCHES, AND THE KNEE TRAVEL IS 16 INCHES. THE SPINDLE USES AN R8 TAPER AND OPERATES WITHIN A SPEED RANGE OF 60 TO 4200 RPM, POWERED BY A 2 HP VARIABLE SPEED HEAD. OTHER FEATURES INCLUDE A KURT POWER DRAW BAR, POWER/MANUAL QUILL, CHROME WAYS, BIJUR LUBE, AND R8 COLLETS. ELECTRICAL SPECIFICATIONS ARE 230/460 VOLT, 3 PHASE, CURRENTLY WIRED FOR 230V. THE MACHINE HAS AN APPROXIMATE WEIGHT OF 2500.00 LBS AND MAIN UNIT DIMENSIONS OF 65.00 INCHES IN LENGTH, 60.00 INCHES IN WIDTH, AND 84.00 INCHES IN HEIGHT. THE MILLPWR CONTROL SUPPORTS CONVERSATIONAL, MENU-PROMPTED PROGRAMMING FOR FEATURES SUCH AS LINES, ARCS, AND BOLT HOLE PATTERNS, AND PROVIDES POSITIONING FEEDBACK VIA HIGH-RESOLUTION GLASS SCALES.
