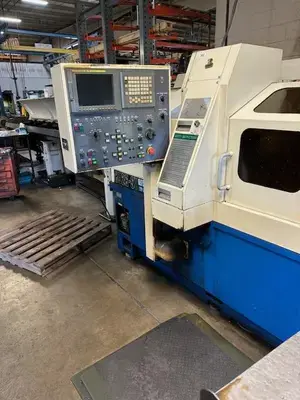

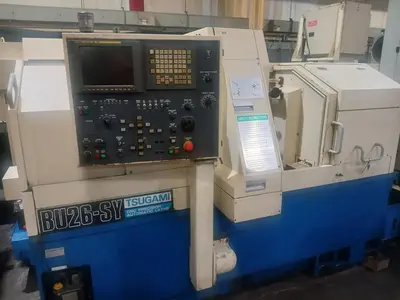

THE TSUGAMI BU-26SY CNC SWISS GANG SLIDE/TURRET LATHE IS ENGINEERED FOR COMPLEX MACHINING OPERATIONS, FEATURING A 1" BAR CAPACITY AND DRIVEN BY A FANUC 18ITB2 CNC CONTROL. THIS 8-AXIS MACHINE INCLUDES A MAIN SPINDLE WITH 7.3 HP AND A TOP SPEED OF 6000 RPM, OFFERING FULL C-AXIS INDEXING CAPABILITY. THE SUB-SPINDLE MATCHES THE 1" BAR CAPACITY, WITH A SPEED RANGE OF 200–5000 RPM AND 5-DEGREE INDEXING RESOLUTION.

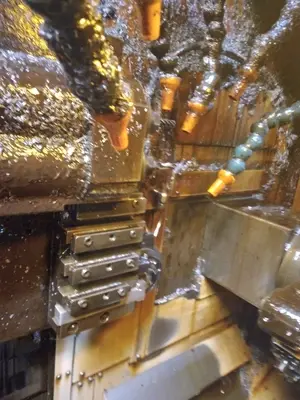

THE MACHINE IS EQUIPPED WITH AN 8-STATION TURRET (3-AXIS) AND AN INDEPENDENT GANG TOOL SLIDE, PERMITTING SIMULTANEOUS FRONT AND BACK WORKING. STANDARD AXES INCLUDE X1, Z1, C1, Y1, X2, Z2, Y2, AND AN OPTIONAL Z3 AXIS, FACILITATING VERSATILITY IN MACHINING. THE LIVE TOOL MOTOR OFFERS 15.0 HP WITH A SPEED OF 5000 RPM. DIMENSIONS ARE 133" X 83" X 101", WITH A TOTAL WEIGHT OF 12,100 LBS. THIS MODEL IS A SWISS-TYPE MACHINE DESIGNED FOR PRECISION AND FLEXIBILITY.
