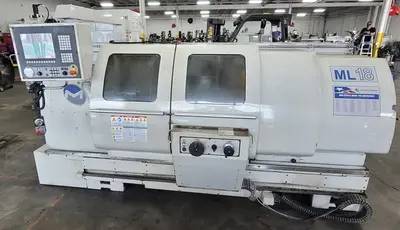

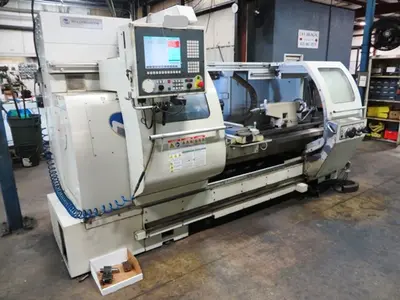

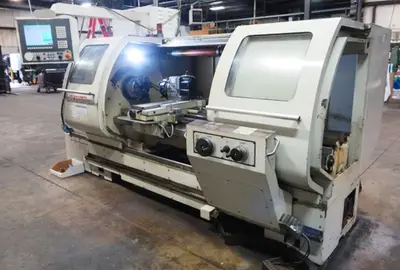

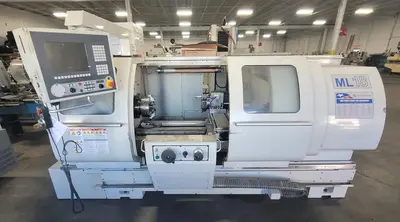

USED 2010 MILLTRONICS ML18

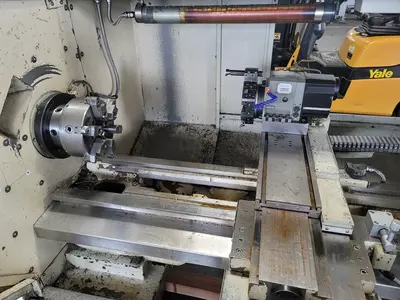

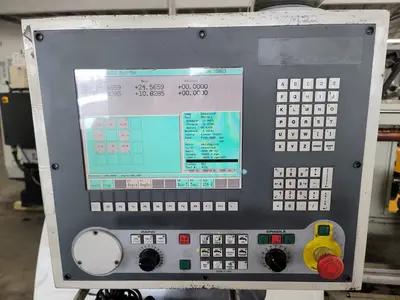

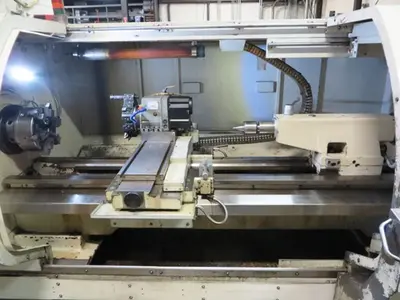

THE 2010 MILLTRONICS ML18/60 IS A CNC COMBINATION LATHE FEATURING A 19-INCH SWING, A 60-INCH MACHINING LENGTH, AND A 19-INCH TURNING DIAMETER. THIS 2-AXIS MACHINE IS EQUIPPED WITH A 24 HP AC SPINDLE MOTOR THAT PROVIDES 255 FT-LBS OF TORQUE. THE SPINDLE BORE IS 2.56 INCHES, AND THE SPINDLE SPEED RANGE IS 100 TO 2,600 RPM. IT INCLUDES A 10-INCH 6-JAW CHUCK, A TAILSTOCK, AND AN 8-STATION AUTOMATIC ELECTRO-MECHANICAL TURRET. THE CONTROL SYSTEM IS A MILLTRONICS 7200 CNC. TRAVEL CAPACITIES INCLUDE A 12-INCH X-AXIS AND A 63.5-INCH Z-AXIS. ADDITIONAL SPECIFICATIONS NOTE A D1-6 SPINDLE NOSE, 27.9-INCH SWING OVER GAP, AND 12.75-INCH GAP DISTANCE. THE MACHINE OPERATES ON 220V 3 PHASE 50/60HZ AND HAS PHYSICAL DIMENSIONS OF 138 INCHES BY 72 INCHES BY 80 INCHES, WITH A WEIGHT OF 8500 LBS. IT IS NOT EQUIPPED WITH LIVE TOOLING OR A SUB-SPINDLE BUT DOES FEATURE A CARD READER AND NETWORK CABLE FOR PROGRAM TRANSFER.
