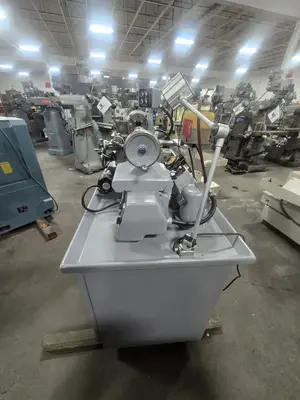

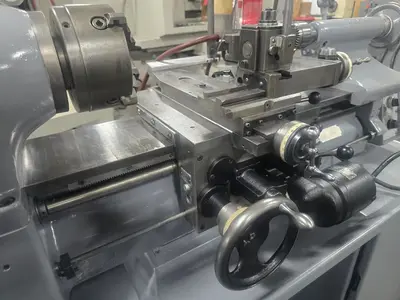

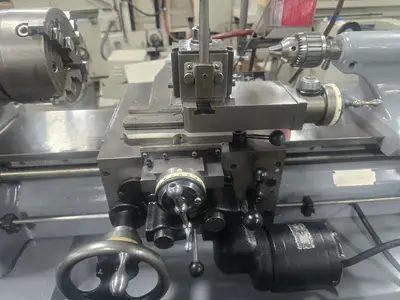

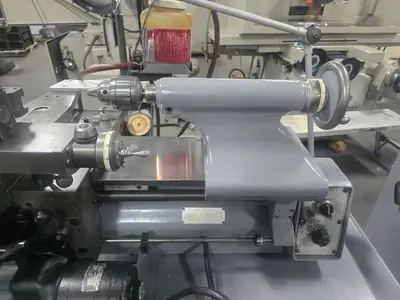

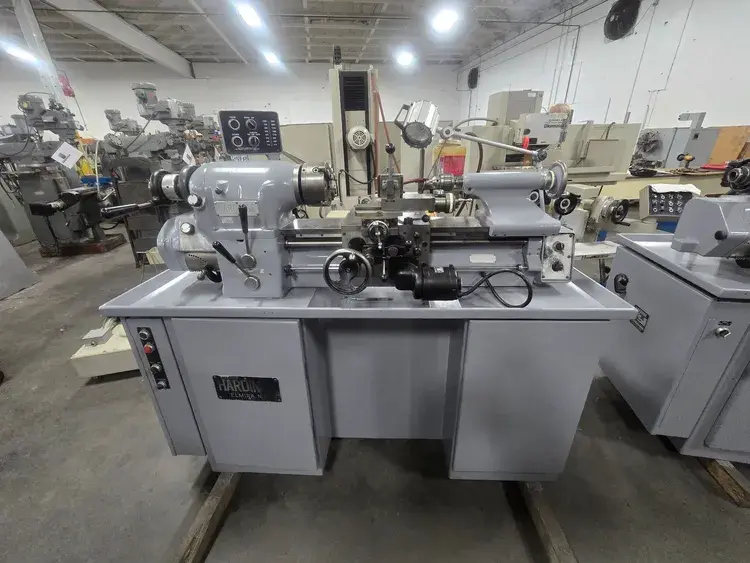

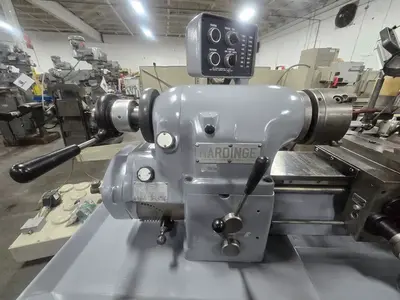

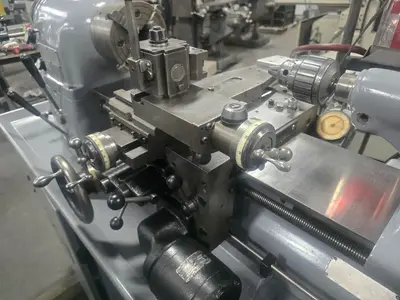

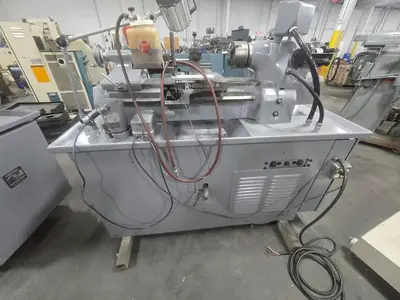

THE HARDINGE HLV-H WIDE BED TOOL ROOM LATHE FEATURES A MAXIMUM SWING OVER THE BED OF 11″, A MAXIMUM SWING OVER THE CARRIAGE OF 9″, AND A MAXIMUM SWING OVER THE CROSS SLIDE OF 5.75″. THE COMPOUND SLIDE TRAVEL IS 3″. THE DISTANCE BETWEEN CENTERS IS 18″ WITH THE TAILSTOCK FLUSH AND 20″ WITH THE TAILSTOCK OVERHUNG. IT IS EQUIPPED WITH A 1.5 HP VARIABLE SPEED MOTOR OPERATING ON 208 VOLTS / 60 HERTZ / 3 PHASE POWER, OFFERING SPINDLE SPEEDS VARIABLE FROM 125 TO 3000 RPM. THE SPINDLE HAS A 1.25″ BORE AND A HARDINGE TAPERED NOSE. THE TAILSTOCK SPINDLE HAS A 3.75″ TRAVEL AND A NO. 2 MORSE TAPER. FEED SPECIFICATIONS INCLUDE A POWER FEED RANGE OF 0.25 IPM TO 7 PM, A LONGITUDINAL FEED RATE OF 0.31 IPM TO 7 IPM, AND A CROSS FEED RATE OF 0.18 IPM TO 4 IPM. THE OVERALL MACHINE DIMENSIONS ARE 6 FT. X 3 FT. X 5 FT.
