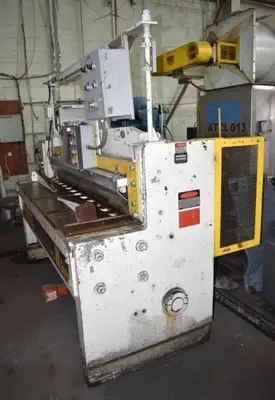

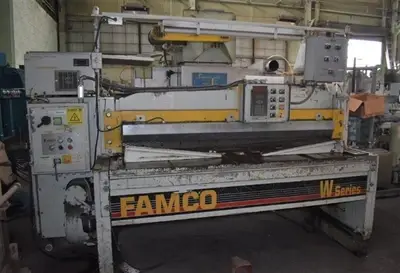

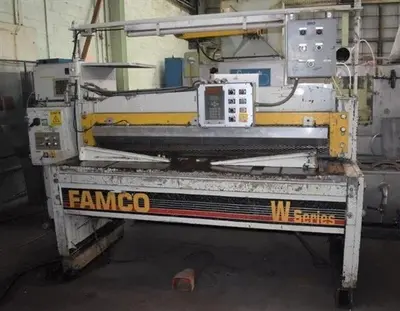

USED 1996 FAMCO E13754-272

THE FAMCO MECHANICAL POWER SQUARING SHEAR, MODEL E13754-272, SERIES W, IS ENGINEERED FOR PRECISE MATERIAL PROCESSING. THIS MECHANICAL SHEAR OFFERS A NOMINAL SHEARING CAPACITY OF 6 FEET BY 0.250 INCHES, WITH ENHANCED CAPACITIES UP TO 0.437 INCHES FOR ALUMINUM AND 0.187 INCHES FOR STAINLESS STEEL. KEY SPECIFICATIONS INCLUDE A MAXIMUM CUTTING WIDTH OF 73 INCHES, A 74-INCH BLADE LENGTH, AND A FIXED RAKE OF 7/16 INCH PER FOOT. DRIVEN BY A 10 HP MOTOR, THE MACHINE OPERATES AT A SPEED OF 65 STROKES PER MINUTE (SPM). STANDARD EQUIPMENT FEATURES A FRONT-OPERATED MOTORIZED BACK GAUGE WITH DIGITAL CONTROL, A SHEET STACKER, TWO FRONT SUPPORTS, AND CONTROLS FOR SINGLE/CONTINUOUS STROKE OPERATION. THE OVERALL DIMENSIONS ARE 110 INCHES LONG BY 84 INCHES DEEP, WITH AN OVERALL HEIGHT OF 51 INCHES. THE MACHINE WEIGHS APPROXIMATELY 10,000 POUNDS.
