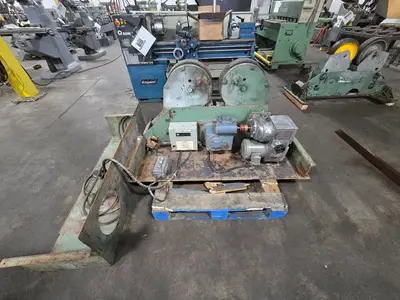

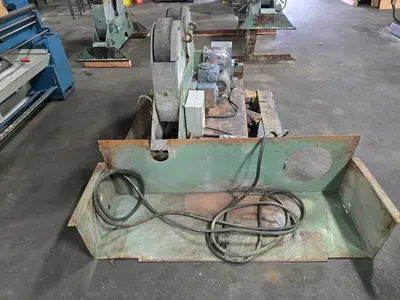

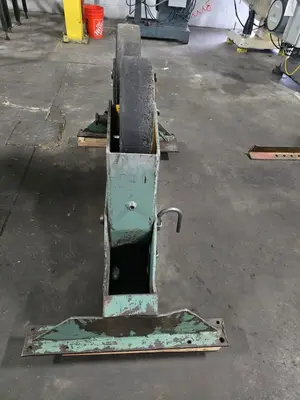

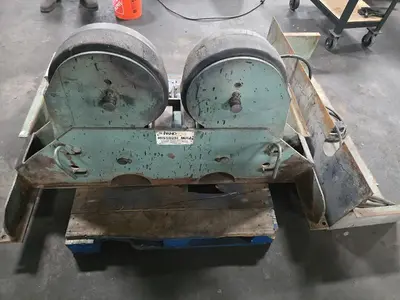

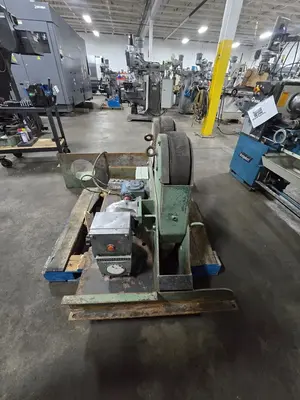

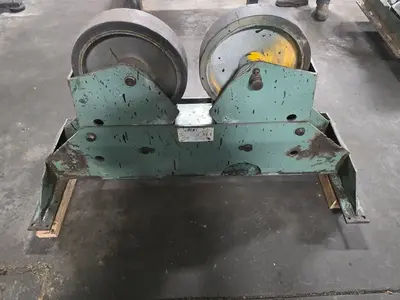

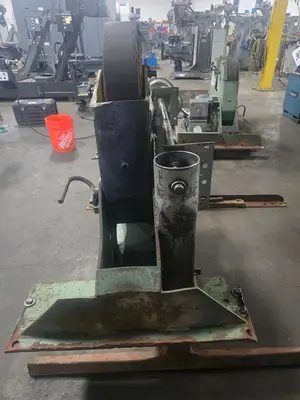

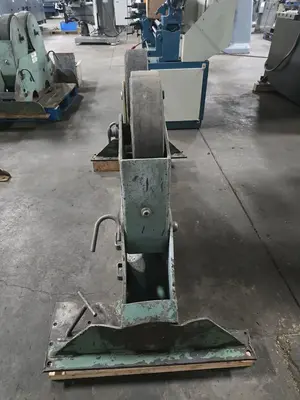

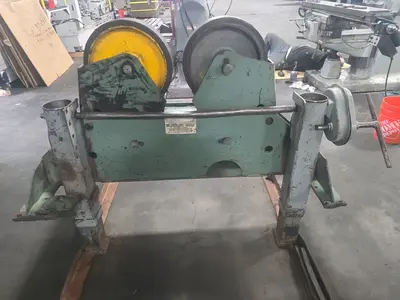

USED PANDJIRIS MM-15/5-T

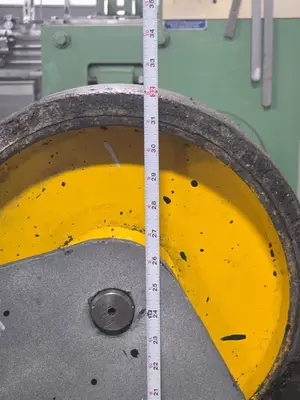

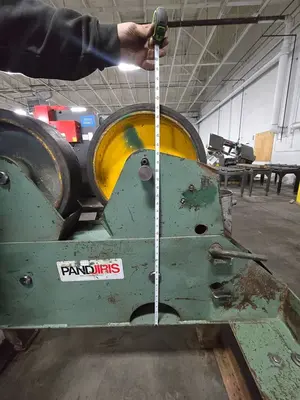

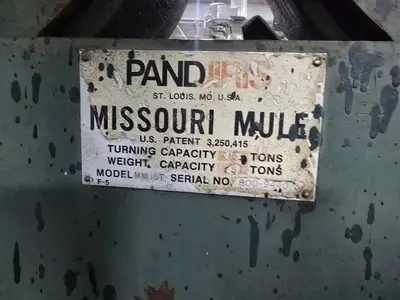

THE PANDJIRIS MM-15/5-T TURNING ROLLS ARE PROVIDED AS A SET OF THREE POWER ROLLS FOR FABRICATING AND WELDING APPLICATIONS. THE POWER ROLL UNIT HAS A CAPACITY OF 15 TONS FOR TURNING AND 5 TONS FOR SUPPORT, OPERATING ACROSS A SPEED RANGE OF 2.1 TO 63.5 IPM. TECHNICAL SPECIFICATIONS INCLUDE A TURNING CAPACITY OF 30,000 LBS, A LOAD CAPACITY OF 10,000 LBS, AND A TRACTIVE EFFORT OF 1,385 LBS. THIS EQUIPMENT IS ENGINEERED TO HANDLE A PIPE DIAMETER RANGE OF 4 INCHES THROUGH 144 INCHES. THE DESIGN INCORPORATES A UNIQUE DRIVE ROLL CONNECTION THAT IS POSITIVELY DRIVEN BY SPUR GEARS, ENSURING A CONSTANT CENTERLINE OF OPERATION WHILE REQUIRING LESS FLOOR SPACE AND ACCOMMODATING VARYING TANK DIAMETERS. THE ROLL SYSTEM FEATURES A 1 HP MOTOR HORSE POWER RATING, A 16-INCH WHEEL DIAMETER, AND A 4-INCH COMBINED WHEEL FACE. CONTROL IS MANAGED BY ELECTRONIC VARIABLE SPEED CONTROLS THAT ARE INFINITELY VARIABLE, ACCESSIBLE VIA A FIELD CHANGEABLE PLUG-IN HAND PENDANT WITH FORWARD-STOP-REVERSE-WELD/RAPID BUTTONS AND A SPEED POTENTIOMETER ON 25 FEET OF CABLE.
