USED BRIDGEPORT EZ-TRAK-DX

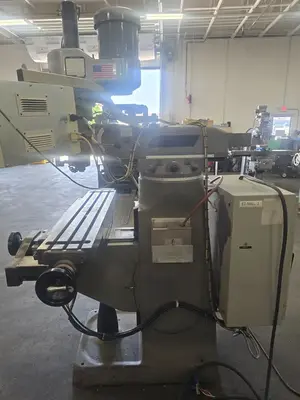

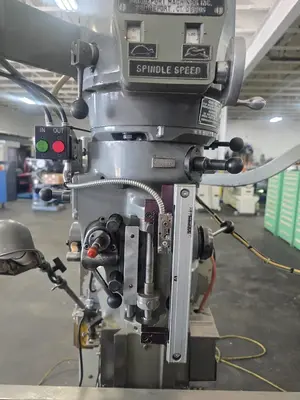

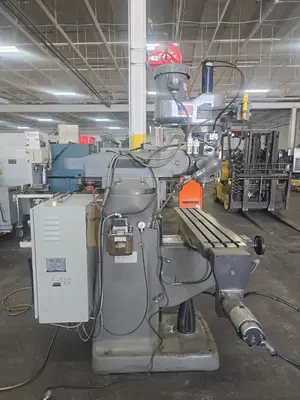

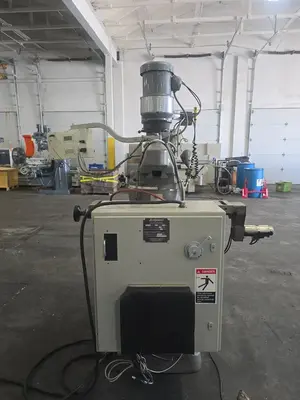

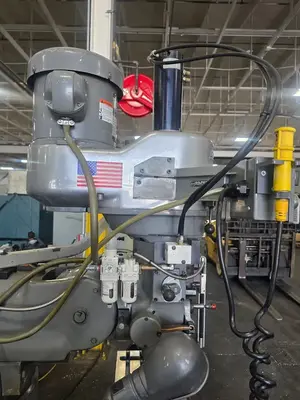

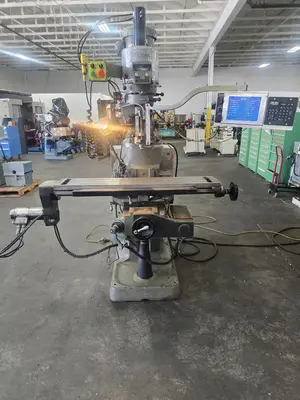

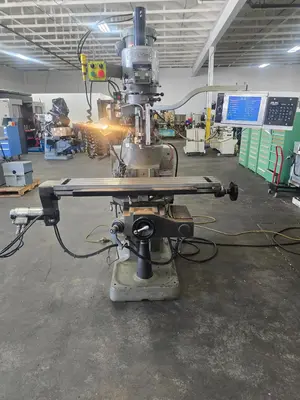

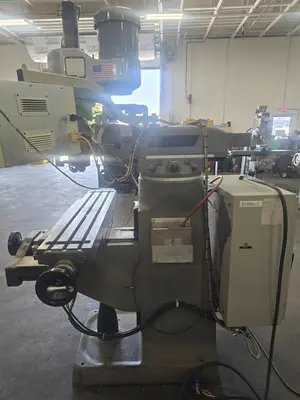

THIS IS A BRIDGEPORT SERIES 1 EZ TRAK DX VERTICAL CNC MILL FEATURING A 9" X 48" TABLE. THE MACHINE OFFERS A LONGITUDINAL (X-AXIS) TRAVEL OF 33.5 INCHES AND A CROSS (Y-AXIS) TRAVEL OF 12 INCHES. VERTICAL TRAVEL OF THE KNEE IS 14 INCHES, WITH AN ADDITIONAL QUILL TRAVEL OF 5 INCHES AND RAM TRAVEL OF 12 INCHES. THE MILL UTILIZES AN R8 TAPER SPINDLE DRIVEN BY A 2 HP/1735 RPM MOTOR. SPINDLE SPEEDS ARE INFINITELY VARIABLE, RANGING FROM 60 TO 4200 RPM. AVAILABLE SPINDLE QUILL FEEDS INCLUDE 0.0015", 0.003", AND 0.006". THE POSITIONING SPEED FOR THE X AND Y AXES IS 100 INCHES PER MINUTE, WITH A FEED RATE RANGE SPANNING FROM 0.1 TO 100 INCHES PER MINUTE. THE THROAT DEPTH ADJUSTS FROM 6-3/4" TO 18-3/4", AND THE DISTANCE FROM THE TABLE TO THE SPINDLE NOSE RANGES FROM 2-1/2" TO 18-1/4". ELECTRICAL REQUIREMENTS ARE 230V/460V, 3 PHASE, 60 CYCLES, WITH A CURRENT WIRING FOR 230V. APPROXIMATE DIMENSIONS ARE 70" X 77" X 87" HIGH, AND THE APPROXIMATE WEIGHT IS 3,000 LBS.
