USED 2022 AUTOMEC CNC 600 HD

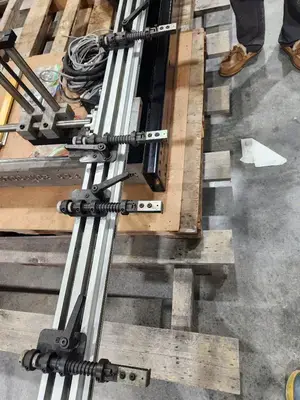

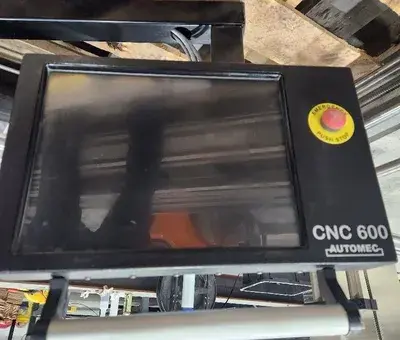

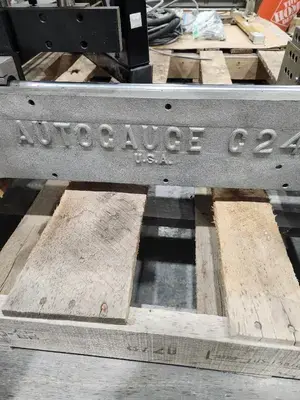

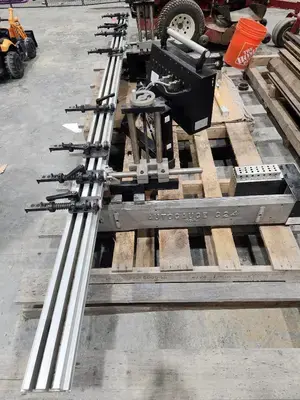

THE AUTOMEC CNC 600 HD FEATURES A CNC 600 CONTROL WITH A 15-INCH TOUCH SCREEN, OFFERING DEPTH MODE, ANGLE MODE, A TOOL LIBRARY, PROGRAMMABLE DELAY/RETRACT BETWEEN BENDS (0-19 SEC.), USB SUPPORT, AND UNLIMITED JOB STORAGE. THE SYSTEM INCLUDES A CATEGORY 1 RAM AXIS FOR CINCINNATI CB AND A G24 MODEL HD MECHANICAL BACKGAUGE. THE G24 BACKGAUGE HAS A HOLDING FORCE OF 400 LBS., 24 INCHES OF GAUGE TRAVEL, 2 DRIVES, AND A REPEATABILITY OF ± 0.002 INCHES. ITS SPECIFICATIONS INCLUDE A WEIGHT OF 350 LBS., OVERALL HEIGHT OF 26 INCHES, OVERALL DEPTH OF 42 INCHES, AND AN OVERALL WIDTH OF 77 FEET. THE SYSTEM UTILIZES (2) GF-8 FINGER TYPES WITH AN EXTRA PAIR, A GAUGE BAR LENGTH OF 11 FEET, AND A POSITIONING SPEED OF 600 IPM. AC POWER REQUIREMENTS FOR THE GAUGING SYSTEM ARE 105 TO 125VAC, 60HZ AT 7 AMPS ON AN ISOLATED LINE.
