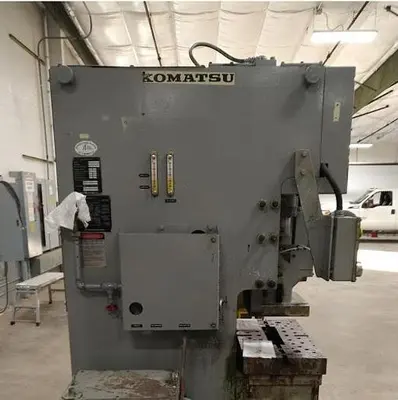

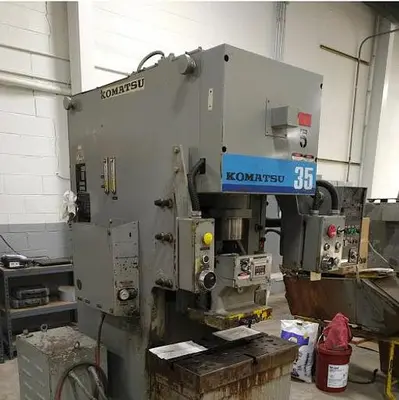

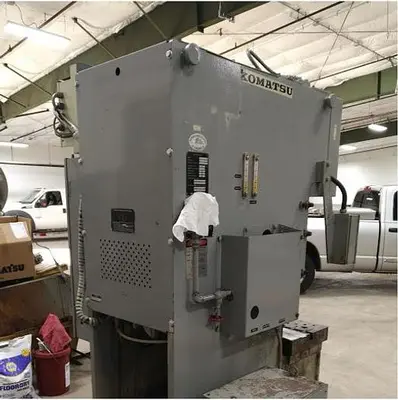

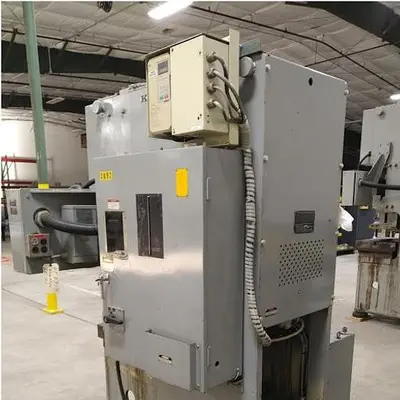

USED 1987 KOMATSU OBS35-3

The 1987 KOMATSU OBS35-3 is a used O.B.I. & Gap Frame press featuring a 35-ton capacity. This reliable piece of industrial equipment operates with a stroke of 1.57 inches and offers an adjustable stroke rate ranging from 120 to 240 strokes per minute, providing flexibility for various press operations. The shut height, measuring 8.27 inches from the bolster to the slide, allows for efficient handling of materials.

For versatility in different applications, the slide adjustment is set at 2.17 inches. The press boasts a slide area of 13.78 inches by 11.81 inches and a bolster area measuring 27.56 inches by 15.75 inches with a thickness of 3.39 inches, catering to a range of tooling sizes and workpiece dimensions. Its robust construction and quality design by Komatsu, a well-regarded manufacturer in industrial equipment, ensure durability and stable performance for your pressing needs.

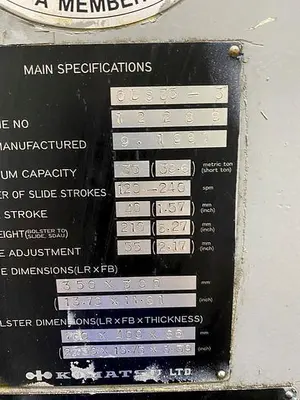

Conditon: Used
Stroke: 1.57"
Strokes per minute: 120 - 240
Shut height, bolster to slide sdau: 8.27"
Slide adjustment: 2.17"
Slide area: 13.78" x 11.81
Bolster area: 27.56" x 15.75" x 3.39" THICK
