USED 1977 PACIFIC 400D8-54

The 1977 PACIFIC 400D8-54 is a used hydraulic straight side press offering a capacity of 400 tons, making it suitable for demanding industrial applications. This press has a specific rated piercing capacity of up to 260 tons, all while maintaining a robust structure with a bed size of 54" x 99" and a ram size of 54" x 96". These dimensions, coupled with a generous 99.5" distance between the frames, allow for versatile operation tailored to various press tasks.

This machine features a stroke length of 30", with a maximum shut height of 36" open and a minimum shut height of 6". The additional 12" stroke on the three-plate cushion, capable of handling up to 165 tons total, extends its versatility for different material requirements. The cushion's construction of 4150 pin material and 1 3/8 diameter knockout rods with a 2.5" stroke enhances durability and precision.

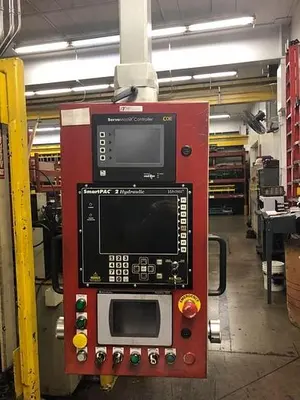

Included in this machine is the Wintriss die protection system that ensures operational safety and prolongs the tool life. The standard feed height is adjustable at 8.0" ± 3, and the equipment is designed with user convenience in mind, featuring a junction box mounted on the lower right corner of the die for easy connection to the Wintriss system.

Conditon: Used
Capacity: 400 TONS
Rated piercing capacity: 260 TONS MAX
Bed size: 54" x 99"
Ram size: 54" x 96"
Distance between frame: 99.5"
Stroke: 30"
Shut height max: 36" OPEN
Shut height min: 6"
