X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 15" Display
Heidenhein Linear Scales X, Y, Z
Ext-Data I/O
Inverse Time
Auto TLM
Spline
Sync. Mill Tapping
G00 Slope Comp.
Scale Feed Back
Variable 600 Sets
Cylinder
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
Auto Pecking
Tool Center Point Control
Program Memory Expansion
Work POS. ERR. COMP.
5-Axis Spline

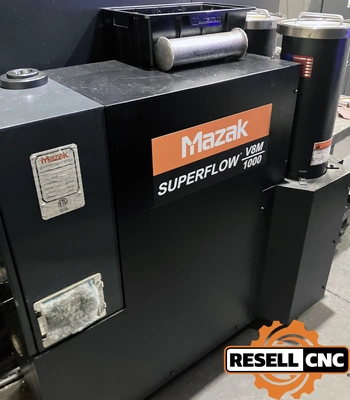

Additional Machine Specs: Mazak Superflow V8M Pump
(2) 39" Square Pallets
Consep Chip Conveyor System
Coolant Washdown at Operator and Pallet Load Stations
Renishaw NC4 Laser Tool Measurement
B-Axis, 150 Degree (Contouring) -30 Deg. TO 120 Deg., 30 RPM
C-Axis .001 Deg., 8 RPM
Work Piece Dimensions: 49.21" x 49.21"
Milling Spindle Speed 10,000 RPM / 2 Windings
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

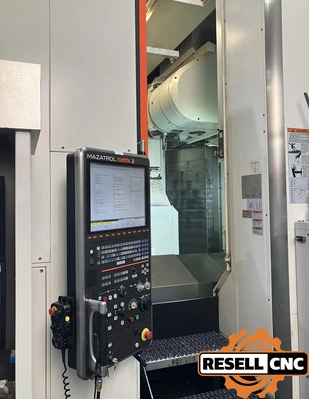

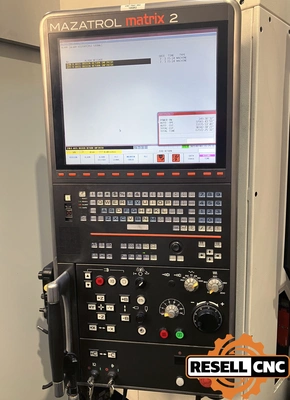

Control Make Model: Mazatrol Matrix 2 CNC Control
Control Options: Color Monitor, G-Code, High Speed Machining, Inch/Metric Conversion, Manual Pulse Generator / Pendant, Rotation and Scaling, EIA/ISO Code Input Function
Coolant Psi: 1000.0

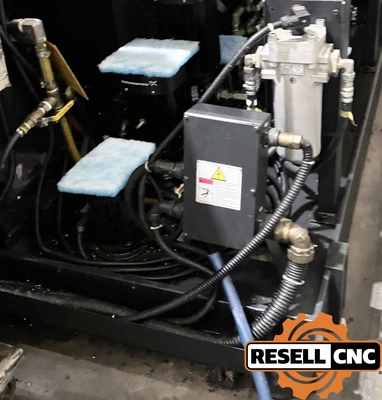

Coolant Type S: High Pressure Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Pallet Changer, Tool Eye
Max Table Pallet Load: 4784.0
Max Tool Diameter: 5.31
Max Tool Diameter Adjacent: 10.24
Max Tool Length: 19.69
Max Tool Weight: 66.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw H/V OMP60 Probe
Programmable Tailstock: false
Rapid Traverse: 1653
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 50
Spindle Speed: 500.0
Spindle Taper Type: CAT#50
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount

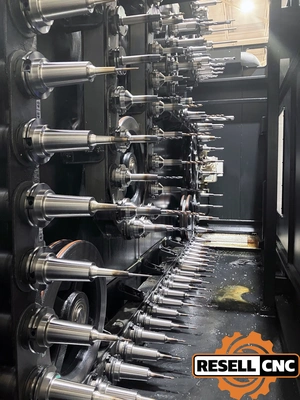

Tool Magazine Capacity: 120.0
Twin Turret: false
Vertical Table Pallet Size: 39.4" x 39.4
X Travel: 73.82
Y Axis: false
Y Travel: 41.73
Z Travel: 52.95
