X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

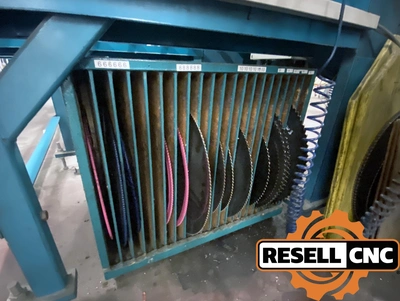

Additional Machine Specs: Blade Diameter: 17.7"
Cutting Capacity: 90°
Round: Ø 6.3"
Square: 5.9" × 5.9"
Rectangular: 9.4" × 3.3"
Mitre Range: ±30° (CNC-Controlled Swing)
Material Feed Stroke: 59", Repeatable for Long Bar
Shortest Remnant: 3.9"

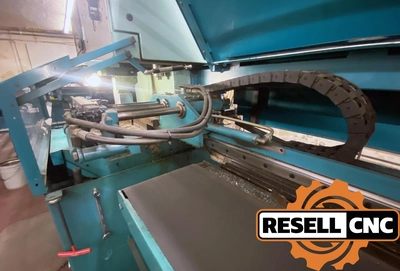

Feed system: Servo-Driven Ball Screw w/ Incremental Encoder
Cutting Head: Hydraulic Up-Stroke
Cycle Rate: ~250–300 cuts/hour (w/ Bundle Loader on Small Parts)

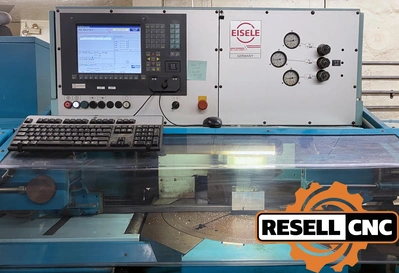

Controller: Beckhoff PC-based CNC, DOS or Early Windows UI

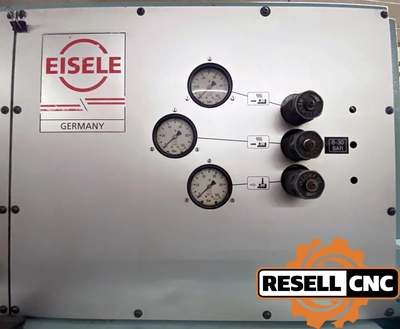

Pneumatics: 6 bar (90 psi) Clean Air
Coolant: Flood System w/ 80 L Tank

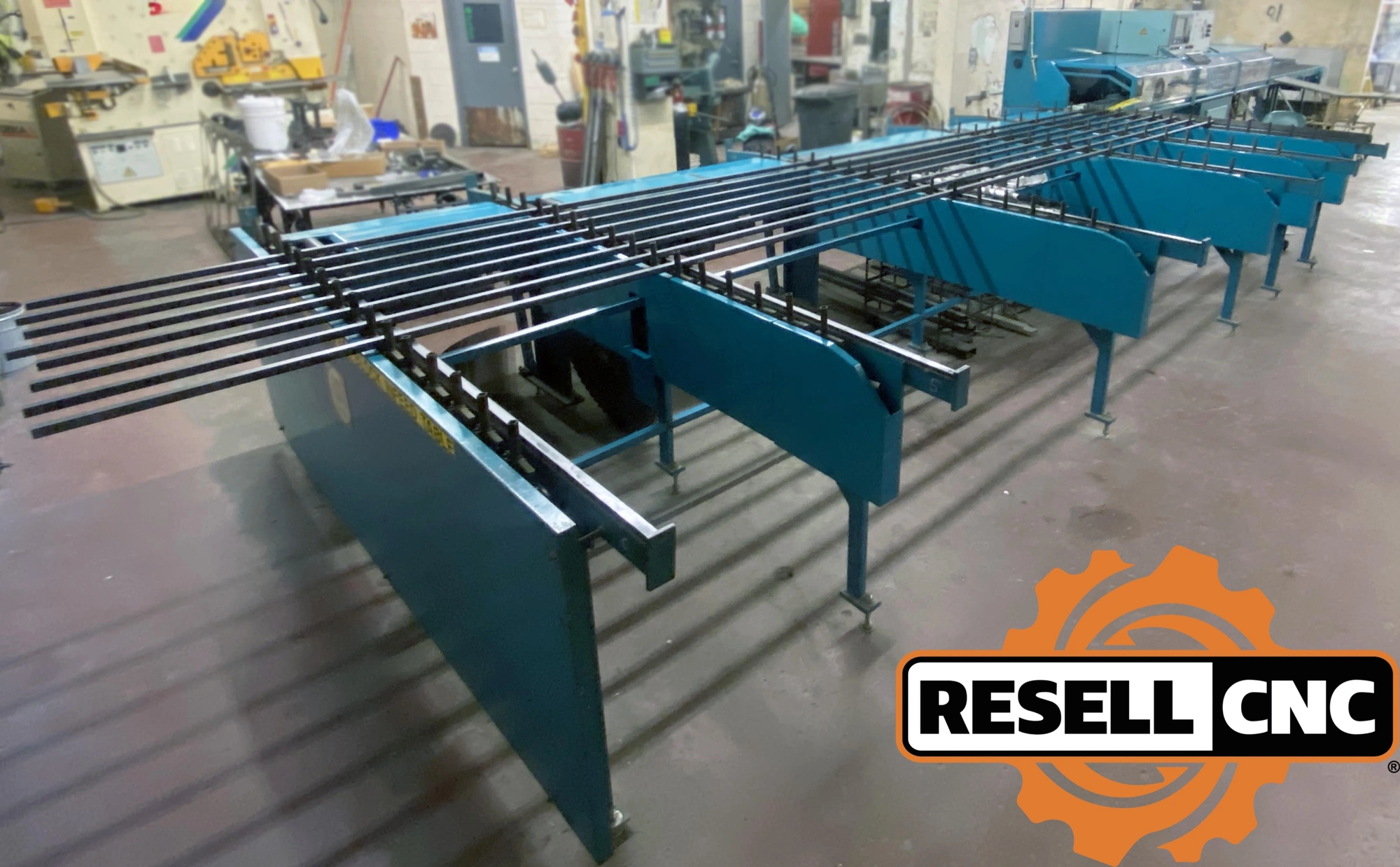

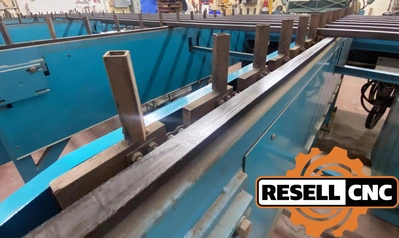

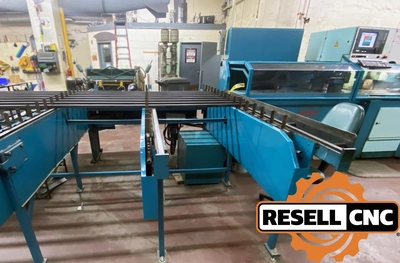

14 Position Chain In-Feed for 24' Lengths
15' Conveyor Out-Feed
Bar Capacity: 6.3
B Axis: false
C Axis: false
Electrical: 460V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false

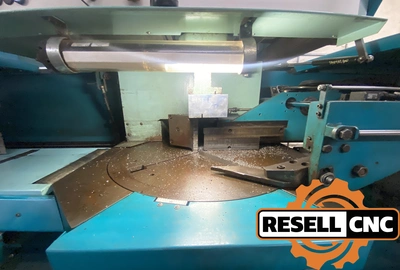

Saw Type: Cold Saw
Single Turret: false
Single Turret Live Tooling: false
Speeds: 30/60/120/240 SFM
Spindle Motor: 4.8
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
