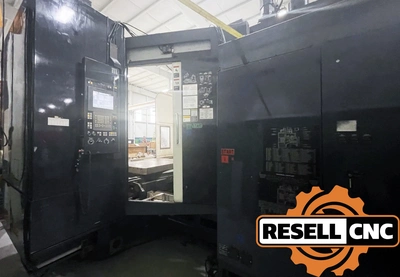

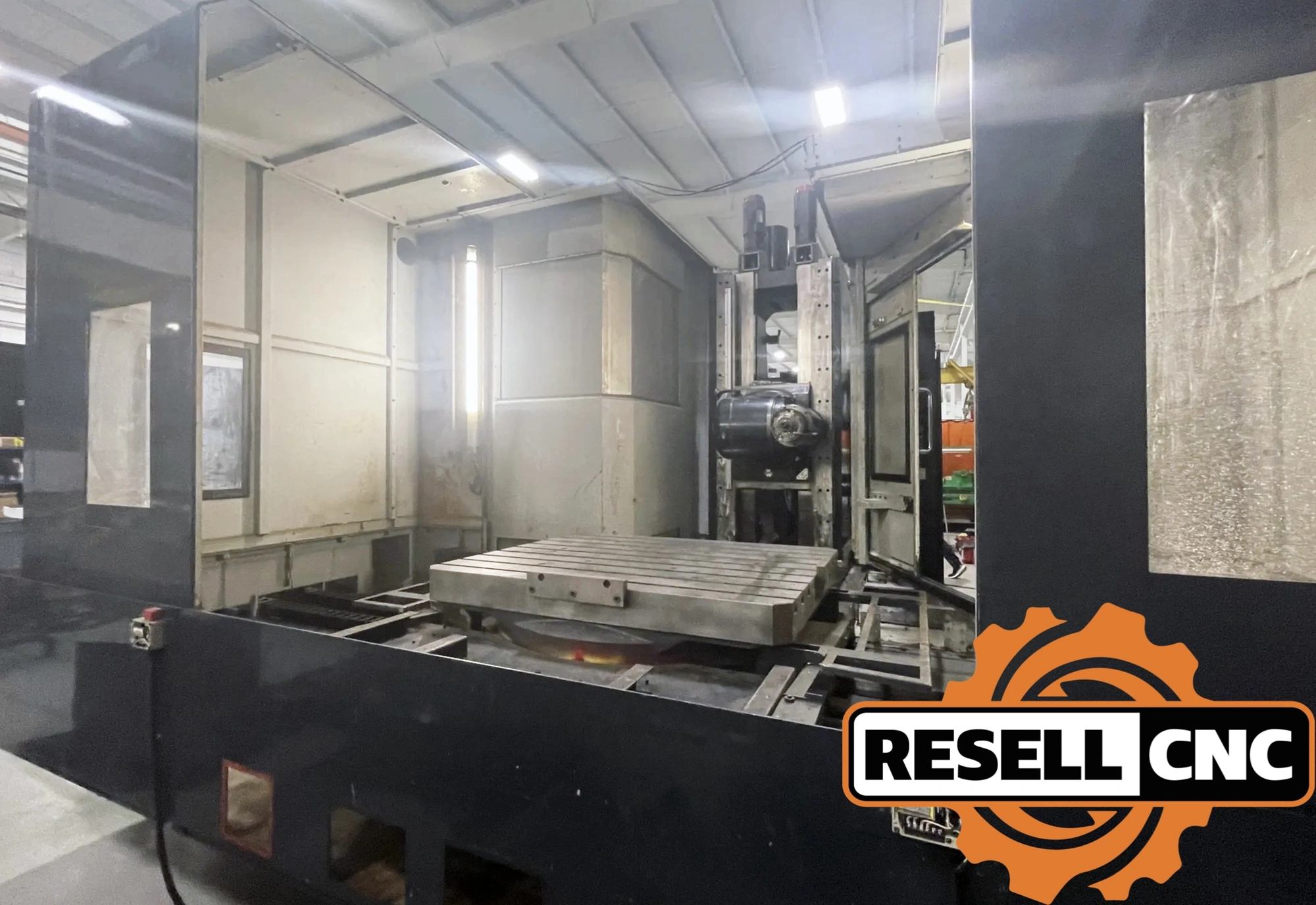

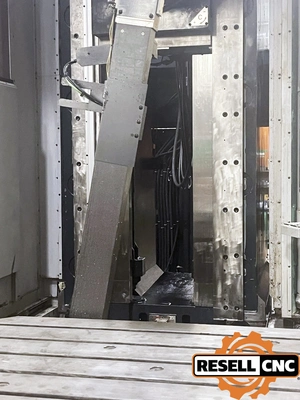

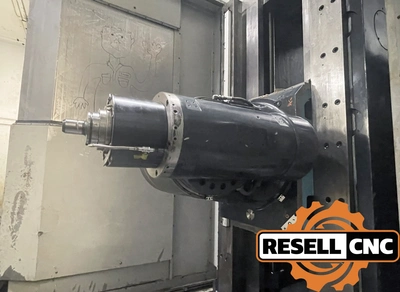

USED 2024 Makino MCC2013VG

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: Renishaw Probe Software

(600) Macro Common Variables

Additional Machine Specs: Blum Non-Contact Tool Measurement

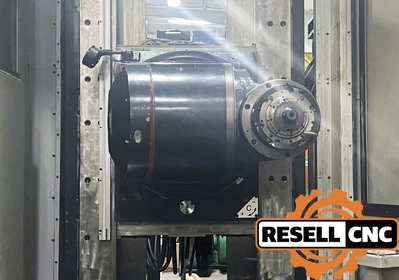

A-Axis Spindle Tilt - -30 degrees to +30 degrees (0.001 degree increments)

C-Axis Spindle Head Rotation - +/- 185 degrees (0.001 degree increments)

B-Axis Table Rotation - 360 degrees (0.001 degree increments)

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

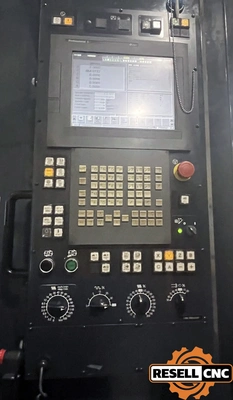

Control Make Model: Makino Professional 5 (Fanuc 30i)
Control Options: Helical Interpolation, Rigid Tapping, Inch/Metric Conversion, Manual Pulse Generator / Pendant, Macros
Coolant Psi: 1000.0
Coolant Type S: Flood Coolant, Thru-Spindle Coolant

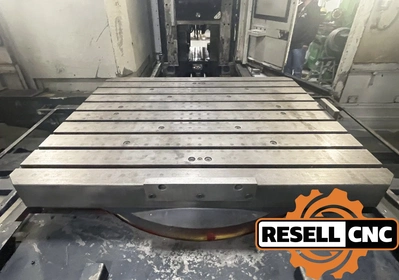

Horizontal Table Pallet Size In MM: 1500.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Coolant Filter, Tool Parts Probe, Mist Collector, Automatic Tool Length Measurement System, Worklight
Max Table Pallet Load: 22000.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Speed: 12000.0
Spindle Taper Other: HSK-100/A
Spindle Taper Type: Other
Sub Spindle: false
Table Pallet Indexing: 0.001
Tailstock: false

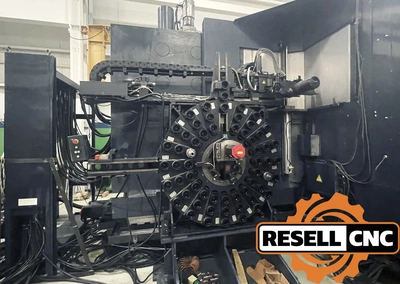

Tool Changer Type: Side Mount
Tool Magazine Capacity: 60.0
Twin Turret: false
X Travel: 78.7
Y Axis: false
Y Travel: 51.2
Z Travel: 51.2
