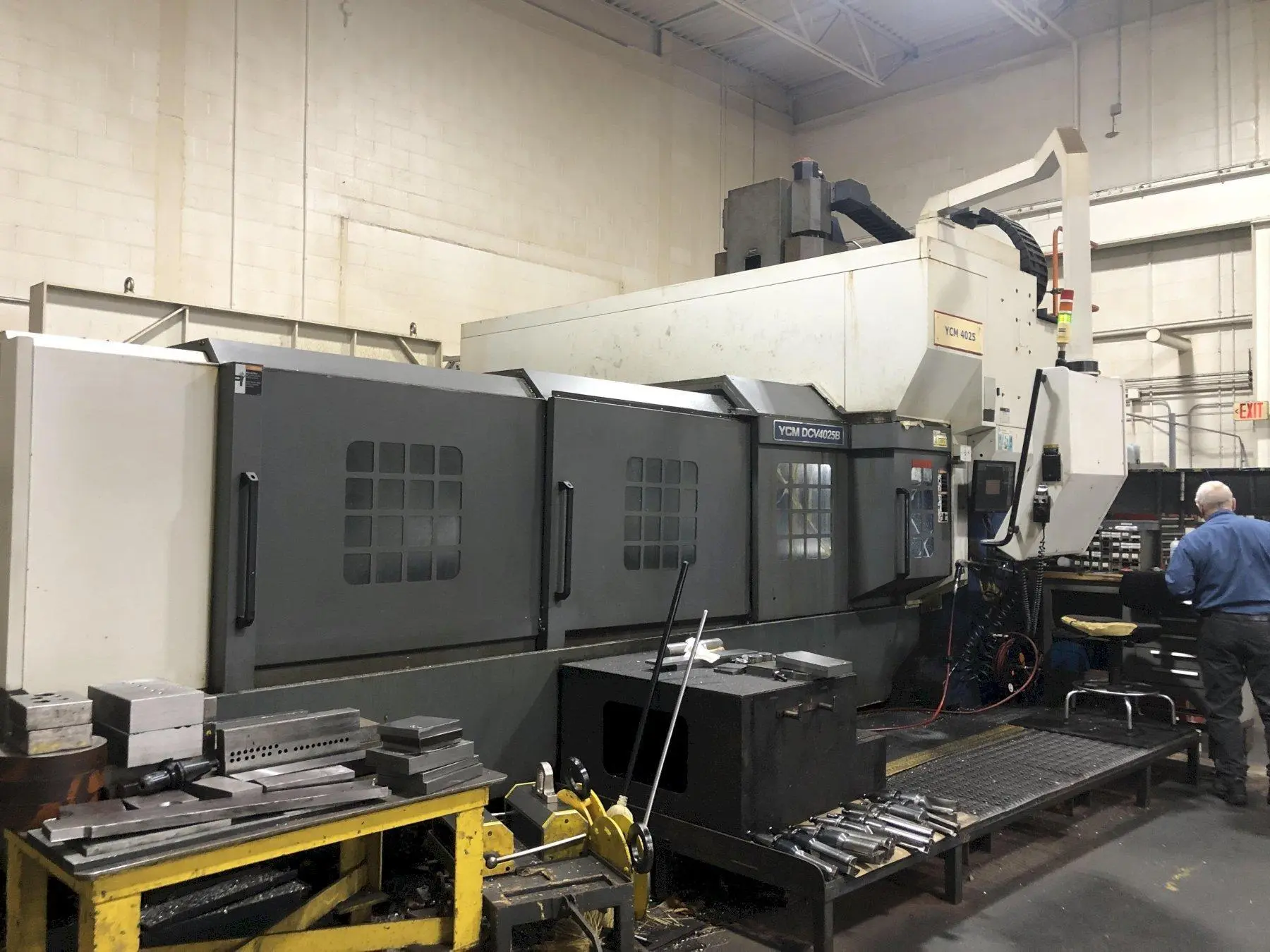

USED 2008 YCM DCV 4025B
Description
YCM DCV 4025B CNC Bridge Type Machining Center, 2008 model. This used gantry-type machining center combines reliability and precision for efficient operations. Ideal for those seeking robust performance in a professional setting.
Specifications
| X | 157.48" | 4,000 mm |
|---|---|---|
| Y | 98.43" | 2,500.1 mm |
| Z | 35.43" | 899.92 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT50 | CAT50 |
| Table-W | 67" | 1,701.8 mm |
| Table-L | 160" | 4,064 mm |
| Control | CNC | CNC |
| Dimensions | 318 in x 253 in x 164 in | 318 in x 253 in x 164 in |
| Weight | 77000 lbs | 77000 lbs |
CONTROL: MBX 200FB (FANUC)
TABLE SIZE.............................................: 158" x 94.5"
TABLE WEIGHT CAPACITY .................................: 44,092 LBS.
LONGITUDINAL TRAVEL (X)................................: 160"
CROSS TRAVEL (Y)................................: 98"
VERTICAL TRAVEL (Z)................................: 40"
FEED RATE X, Y, Z .....................................: 472/591/591 IPM
CUTTING FEED RATE .....................................: 0.04~394 IPM
SPINDLE SPEEDS.........................................: TO 10,000 RPM
SPINDLE DRIVE..........................................: 25/30 HP (18.5/22 kw)
SPINDLE TAPER..........................................: CAT 50
TOOL CHANGER ..........................................: 40 ATC
DISTANCE BETWEENS COLUMNS..............................: 107.9"
MAX. TOOL WEIGHT ......................................: 44.1 Lbs.
MAX. TOOL DIMENSIONS ..................................: 4.92" x 13.78"
DISTANCE SP NOSE TO TAPLE TOP..........................: 7.87~47.87"
GROSS MACHINE..........................................: 101,412 Lbs.
EQUIPPED WITH:
ELECTRICS-220/480
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
CHILLER UNIT
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
TOOL SELECTION RANDOM METHOD
