| size | 40" x 20" x 17" | 40" x 20" x 17" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 17.7" | 449.58 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | 50 | 50 |
| Table-W | 48" | 1,219.2 mm |
| Table-L | 20" | 508 mm |
| # Axis | 3 | 3 |
| Control | CNC (OSP P200MA) | CNC (OSP P200MA) |
| Dimensions | 135" x 97" x 84” | 135" x 97" x 84” |
| Weight | 16300 | 16300 |

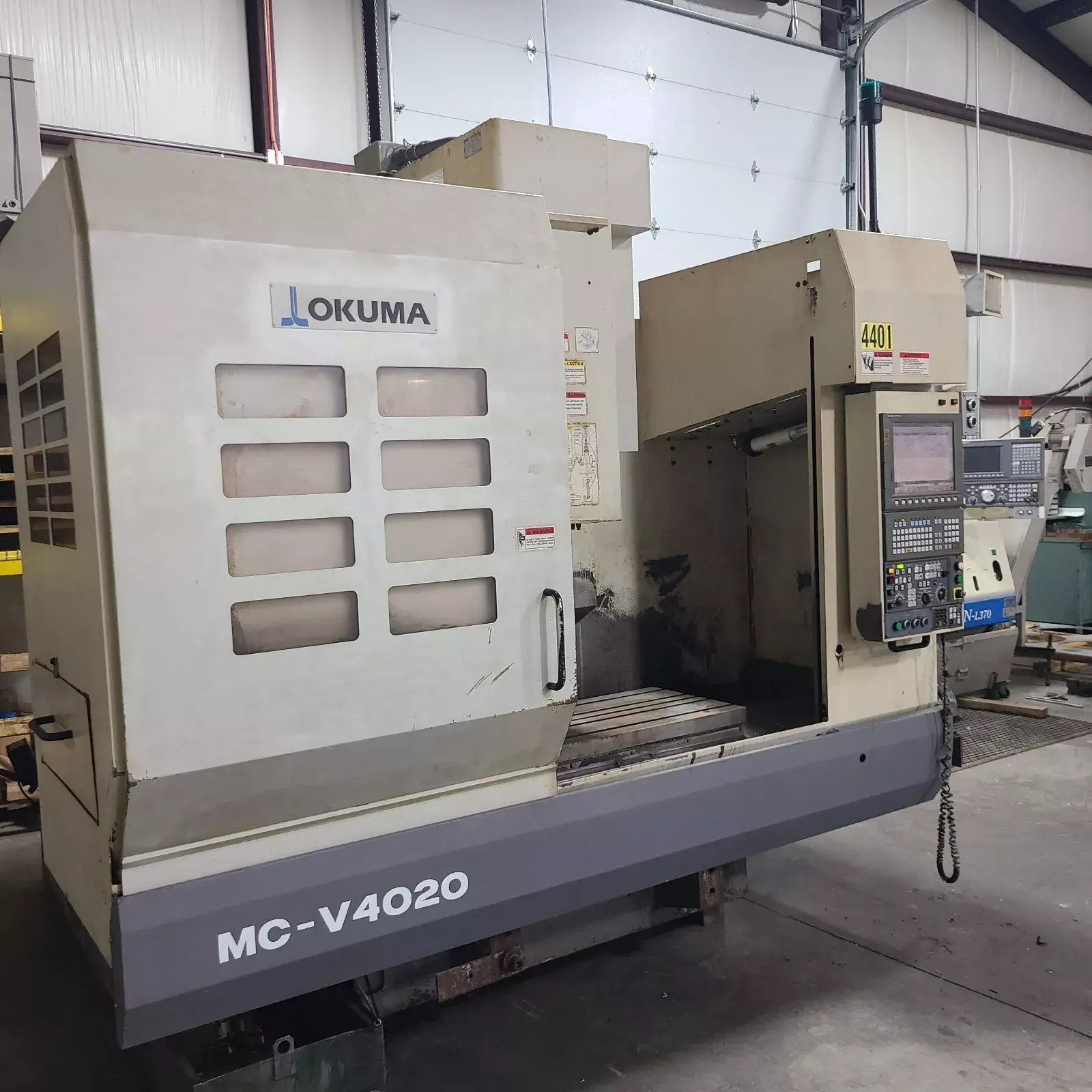

Okuma MC-V4020 Vertical Machining Center (2006)
Table Size: 48" x 20"
X Travel: 40"
Y Travel: 20"
Z Travel: 17"
Max Table Load: 1500 Lbs
Spindle Nose to Table: 6.3" - 24"
X and Y Axis Rapid Traverse: 1,417 IPM
Z Axis Rapid Traverse: 1,181 IPM
Spindle Taper: CAT 50
Spindle Speeds: 40 - 6000 RPM
Spindle Motor: 20 HP
Tool Positions: 32
Rapid Traverse, X & Y Axes 1417 IPM
Rapid Traverse, Z-Axis 1187 IPM
Cutting Feed Rate 0.04-1191 IPM
Approx. Weight 16,300 LBS
Machine Floor Space 135" x 108"
Machine Height 110"
Okuma OSP-P200M Controller, CAT50 Taper, 32 ATC, Manual Pulse Generator, Remote Jog Hand Wheel, Coolant Through Spindle Prep
