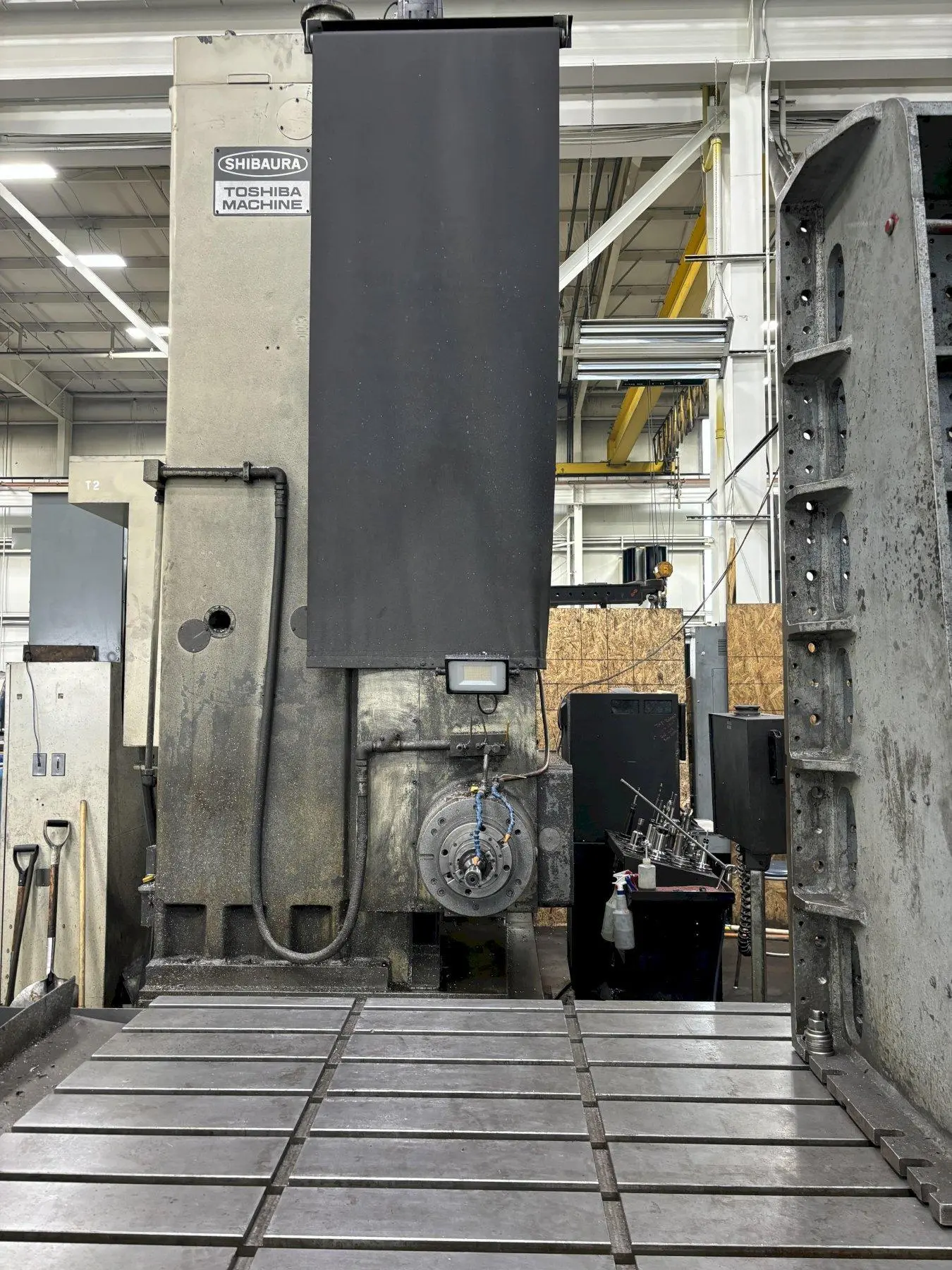

USED 1993 TOSHIBA SHIBAURA BP-13B-P7
Overview
Description
1993 Toshiba BP-13B-P7 CNC HBM,X-157", Y-87", Z-60",W-27", 168" x 60" Table, 2500 RPM, CAT 50 Taper, Mitsubishi 70 Series, CNC Retrofit with new drives & ballscrews 2015
Specifications
| Spindle Size | 5.12" | 130.05 mm |
|---|---|---|
| X-Horiz Tvl of Table | 157" | 3,987.8 mm |
| Y-Vert Tvl of Head | 87" | 2,209.8 mm |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 168" | 4,267.2 mm |
| Table-L | 60" | 1,524 mm |
| Spindle Tvl. | 27" | 685.8 mm |
| Control | CNC (MITSUBISHI) | CNC (MITSUBISHI) |
| Weight | 65,000 | 65,000 |
Control.................................: Mitsubishi 70 Series (Retrofit)
Spindle Diameter........................: 5.12"
Table Size..............................: 60" x 168"
X Travel................................: 157"
Y Travel................................: 87"
Z Travel Column In/Out..................: 60"
W Axis Spindle Travel...................: 27"
Spindle Speeds..........................: 2,500 RPM
Spindle Taper...........................: # 50
Max. Table Load.........................: 33,000 Lbs.
Machine Weight..........................: 65,000 Lbs.
Equipped With:
Mitsubishi 70 Series Control
All new Mitsubishi Spindle Motor & Drives
Glass Scales X & Y
20gig Hard Drive
High Speed Machining
Telescoping Stainless Steel Way Covers
Toshiba Hardened and Ground Large Flat Ways
Coolant
New Turcite X & Y axis installed last year 2024
