2 Axis, Collet Chuck, OSP E100L CNC, Chip Conveyor
| size | 8" chuck | 8" chuck |
| Swing | 20.8" | 528.32 mm |
| Machining Length | 20.47" | 519.94 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 14.5" | 368.3 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma Osp E100L) | CNC (Okuma Osp E100L) |

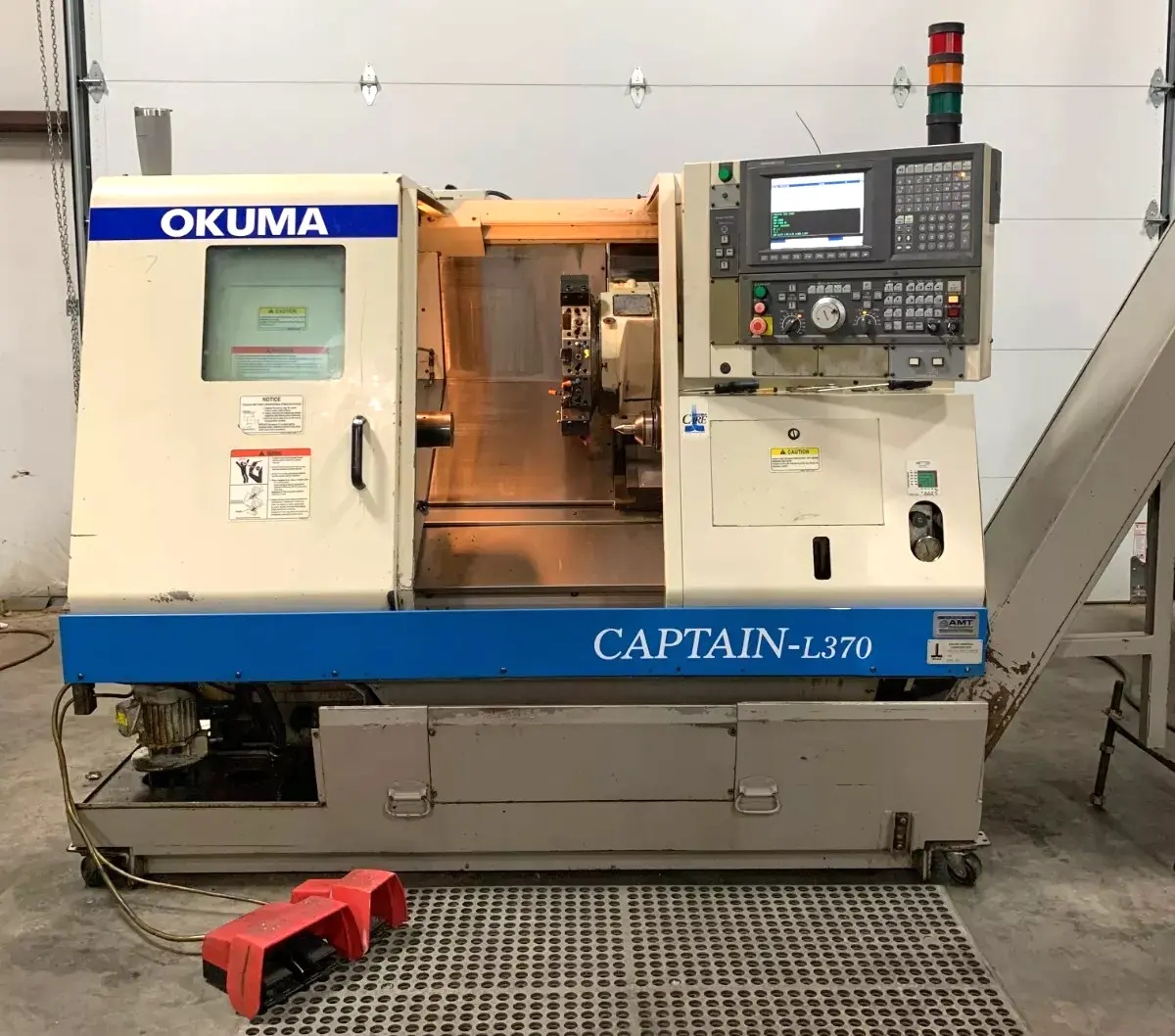

Okuma Captain L370 2 Axis CNC Lathe (2001)
Max Turning Diameter: 14.56
Max Turning Length: 20.47
Max Bar Capacity: 2.05
Swing Over Slide: 15.78
Swing Over Bed: 21.65
Distance Between Centers: 22.29
Travel:
X Axis Travel: 10.23
Z Axis Travel: 20.47
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP
Overall Dimensions: 110 x 68 x 80 High
Overall Dimensions: 140 x 68 x 80 High with Chip Conveyor
Weight : 9000 lbs Approx.
OSP-E100L CNC Control
12-Station Turret
Collet Chuck
Touch Setter
Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
