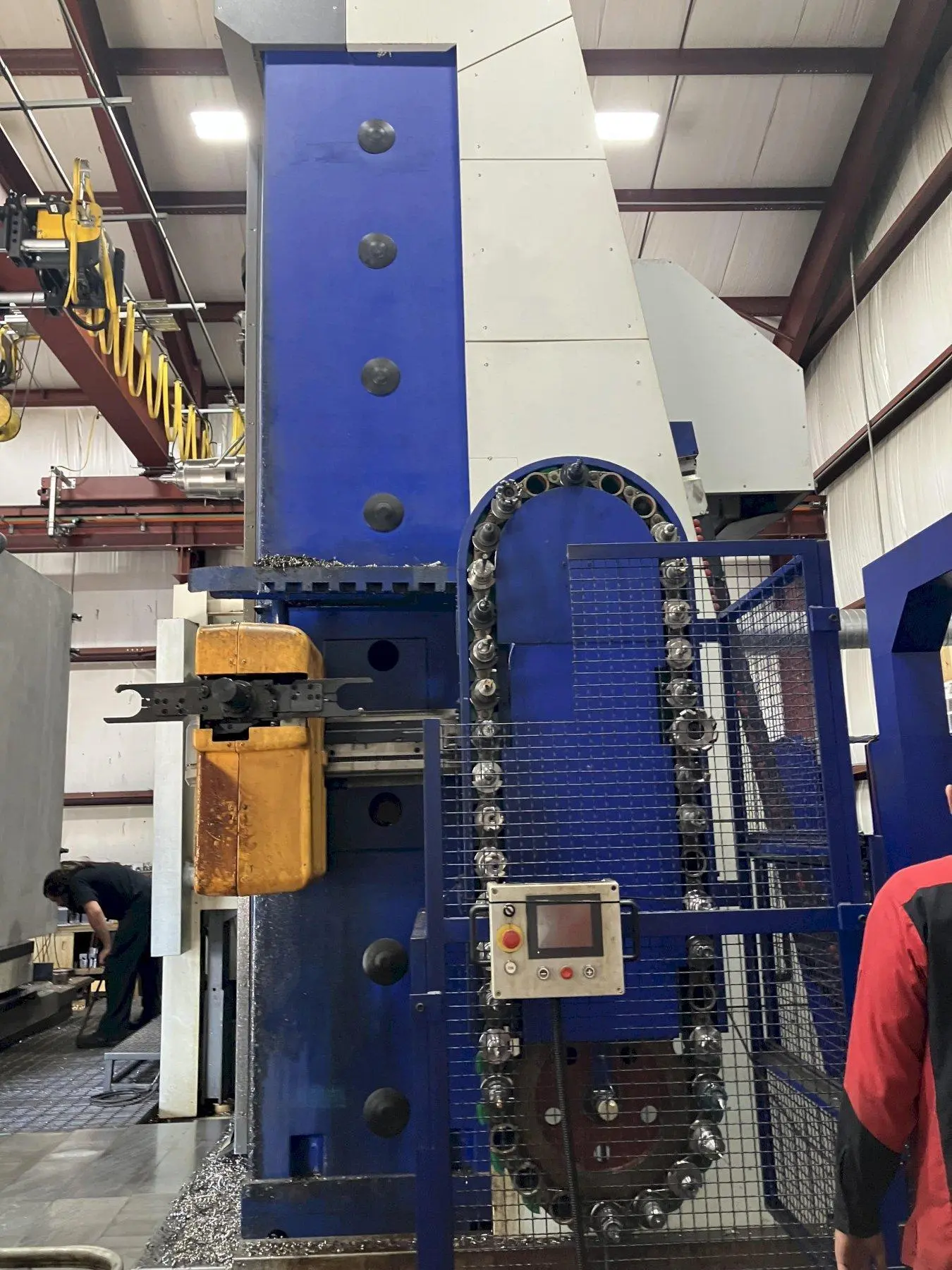

2012 TOS WHQ-13 CNC Horizontal Boring Mill, Heidenhain i530 control. 5.12" spindle, 197" table travel, 50 hp power, 3,000 RPM speed, rotary table, and tooling
| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 197" | 5,003.8 mm |
| Y-Vert Tvl of Head | 118" | 2,997.2 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 71" | 1,803.4 mm |
| Table-L | 98" | 2,489.2 mm |
| Spindle Tvl. | 27.56" | 700.02 mm |
| Control | CNC (Heidenhain i530) | CNC (Heidenhain i530) |
| Dimensions | 370 in x 240 in x 180 in | 370 in x 240 in x 180 in |
| Weight | 55000 lbs | 55000 lbs |
Control ..........................: Heidenhain TNC i530
Spindle Diameter .................: 5.1"
Spindle Taper ....................: #50
Maximum Spindle Speed ...........: 3,000 RPM
Spindle Drive Motor ..............: 50 HP
Travels X-Axis ...................: 197" (5 Meter)
Y-Axis (Vertical).........: 118" (3 Meter)
W-Axis (Spindle) .........: 39" ( 1 Meter)
Z-Axis Column in/out .....: 86"
Table Size .......................: 71" x 98" (Rotary)
Maximum Load .....................: 56,000 Lbs.
Equipped With:
Rotary Table Index: 360,000 Degrees Full Contouring Rotary
T-Type (Column In/Out)
All Hardened Ways
Spindle Oil Temp. Compensation
Coolant Filter Paper Roll Type
Coolant Through Spindle
Renishaw Probe
Chip Conveyor
Auto Lube System
Mist Collector
Spindle Nose Support
40 ATC Tool Changer
