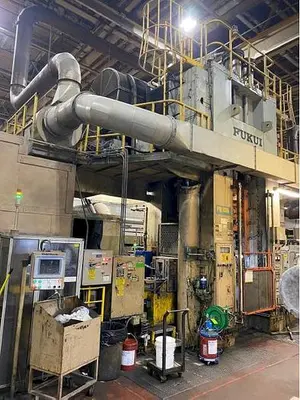

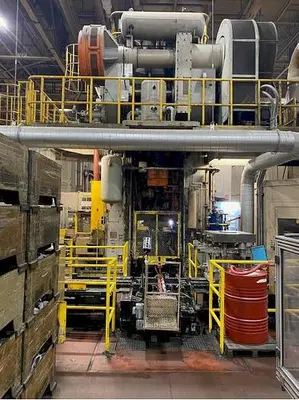

The 1991 FUKUI 1000 Ton Mechanical Single Crank Cold Forging Press is a used industrial press designed for heavy-duty applications. The model MSF 1000 boasts a substantial tonnage of 1,000 with a stroke length of 11.18" (300mm) and a shut height of 33.46" (850mm). The bed size measures 25.4" (700mm) x 31.49" (800mm), ensuring ample workspace. With a slide adjustment of 2" (50mm) and a bolster thickness of 10.62" (270mm), this press is built for precision and durability.
This press is equipped with numerous features including an air clutch, air brake, air counterbalance, and hydraulic overload protection. Additional functionalities such as a pneumatic ram knockout, mechanical bed knockout, and pneumatic upper die clamp enhance operational efficiency. The unit is also fitted with a hydraulic lower die clamp, recirculating lube system, portable palm station, and exit conveyor. It operates at 30 - 32 strokes per minute, driven by a 200 H.P. (150KW) main motor, making it a versatile and powerful asset for forging operations.
Sold in "As-Is" condition, this press is suitable for industries requiring robust performance and reliability.
Tonnage: 1,000
Stroke length: 11.18" (300mm)
Shut height: 33.46" (850mm)
Slide adjustment: 2
Bolster thickness: 10.62" (270mm)
Main motor: 200 H.P. (150KW)
