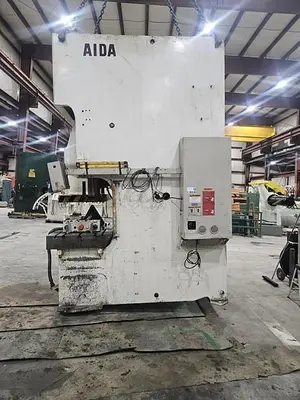

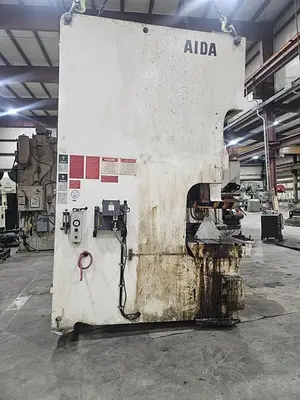

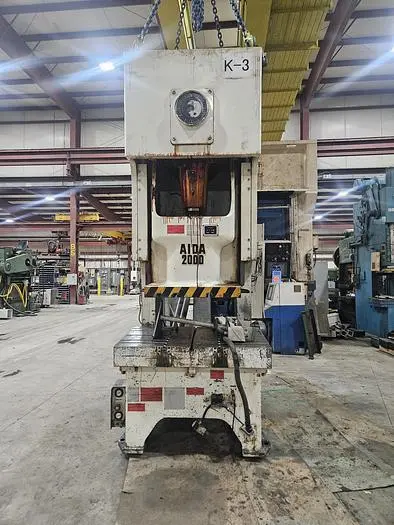

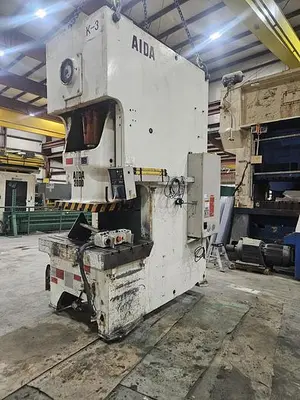

The AIDA MODEL NC1-2000(2)E is a used gap frame press with a capacity of 220 tons, suitable for a variety of industrial tasks. It offers a slide stroke of 9.84 inches and operates between 25 to 50 strokes per minute, allowing adaptability to different manufacturing needs. The machine's precision is supported by a slide adjustment of 4.33 inches, enabling accurate forming.
The press features a die height of 17.72 inches and provides a spacious slide area of 34.6 x 25.6 inches, along with a bolster area of 54.7 x 33.1 inches. These dimensions cater to diverse tooling and workpiece configurations, enhancing its versatility in complex operations.
Equipped with an air clutch and brake, air counterbalance, hydraulic overloads, and hydraulic die clamping, this machine is a reliable choice for operations requiring sturdy performance and consistent results. It offers an efficient and cost-effective solution for manufacturers aiming to boost production capabilities with a dependable and well-maintained piece of equipment.

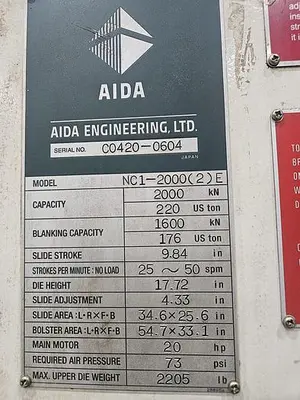

Capacity: 220 Tons
Slide Stroke: 9.84
SPM: 25-50
Die height: 17.72
Slide adjustment: 4.33
Slide area: 34.6 x 25.6
Bolster area: 54.7 x 33.1
