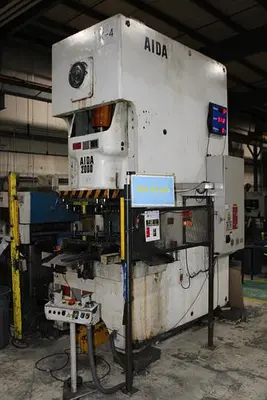

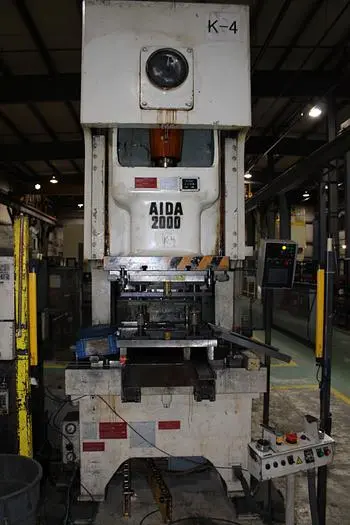

The AIDA MODEL NC1-2000(2)E is a robust gap frame press with a capacity of 220 tons, suitable for various industrial applications. Featuring a slide stroke of 9.84 inches and a speed range of 25 to 50 strokes per minute, it offers the flexibility required for diverse production needs. The press includes a slide adjustment of 4.33 inches, ensuring precision in forming operations.
Designed to accommodate a variety of tooling setups, the machine has a die height of 17.72 inches. It provides ample space for different workpieces with a slide area of 34.6 x 25.6 inches and a bolster area of 54.7 x 33.1 inches. These dimensions enhance its versatility and allow for handling a wide range of tasks efficiently.
Additional features such as an air clutch and brake, air counterbalance, hydraulic overloads, and hydraulic die clamping further contribute to its reliable performance. This used Aida gap frame press remains a cost-effective solution for manufacturers seeking to improve production capabilities with a dependable machine.
Capacity: 220 Tons
Slide Stroke: 9.84
SPM: 25-50
Die height: 17.7
Slide adjustment: 4.33
Slide area: 34.6 x 25.6
Bolster area: 54.7 x 33.1
