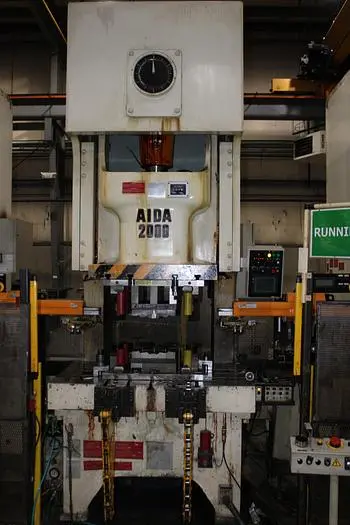

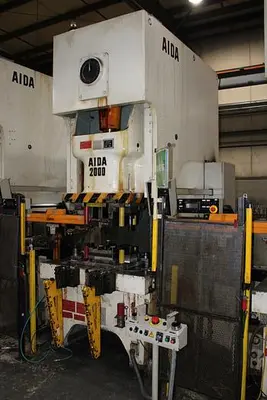

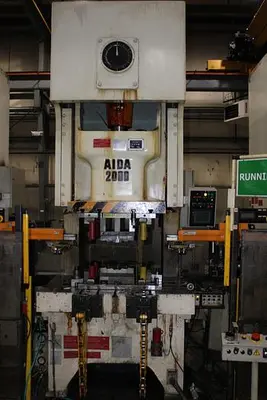

The AIDA Model NC1-2000(2)E is a robust 220-ton gap frame press ideal for various industrial applications. This used press features a hydraulic system equipped with overload protection, ensuring operational safety and durability. The machine's air clutch and brake, alongside an air counterbalance system, optimize performance and control for precision fabrication tasks.
With a stroke length of 9.8 inches and a stroke rate ranging from 25 to 50 strokes per minute, this press is designed for efficiency and adaptability. It offers a slide adjustment of 4.33 inches and a substantial slide area measuring 34.6 inches left-to-right by 25.6 inches front-to-back, accommodating a wide range of pressing needs. The bed area further supports operations with dimensions of 54.7 inches left-to-right by 33.1 inches front-to-back.

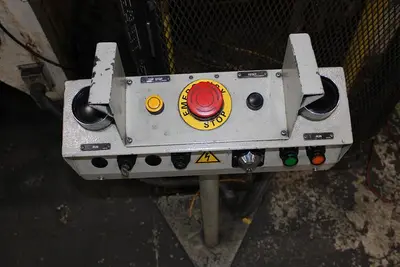

For enhanced safety, the machine is fitted with palm buttons and light curtains, adding layers of protection for operators. The inclusion of hydraulic die clamping makes changing dies quicker and more reliable, aiding in minimizing downtime. This serial number C0420-0853 unit represents a comprehensive solution for pressing tasks requiring reliability and precision.

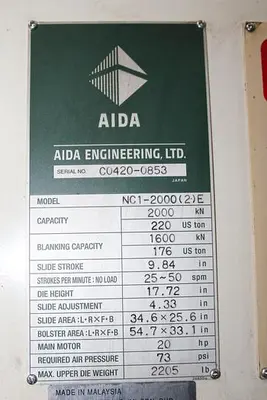

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-0853
MANUFACTURE YEAR: 2012
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
