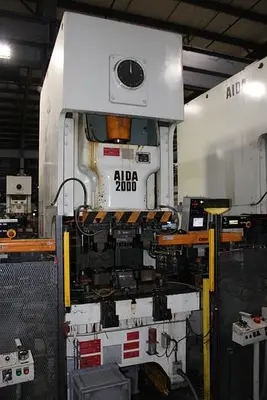

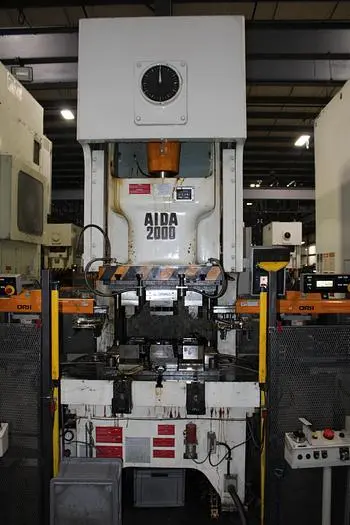

The 2013 AIDA NC1-2000(2)E gap frame press is a robust machine with a capacity of 220 tons, suitable for industrial tasks requiring precision. It has a stroke length of 9.84 inches and a slide adjustment of 4.33 inches, which provide operational flexibility. The slide area measures 34.6 inches by 25.6 inches, and the bed area is 54.7 inches by 33.1 inches, facilitating various applications.

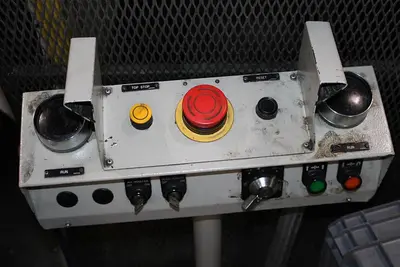

This press is designed for safety and efficiency, featuring an air clutch and brake, air counterbalance, and hydraulic overload protection. Modern safety measures, including light curtains and palm buttons, are integrated to ensure secure operation. Hydraulic die clamping enhances precision and ease of use, making adjustments straightforward.
Although pre-owned, the press has been maintained to operational standards, ensuring reliability and performance for demanding applications. Its durable construction and advanced safety features make it a valuable addition to manufacturing environments committed to boosting productivity with minimal setup modifications.

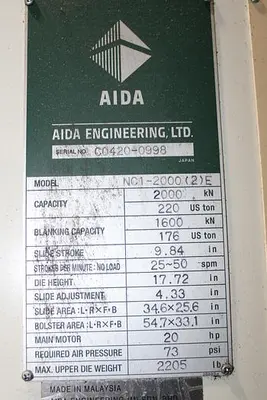

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-0998
MANUFACTURE YEAR: 2013
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
