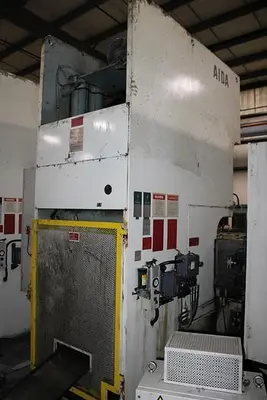

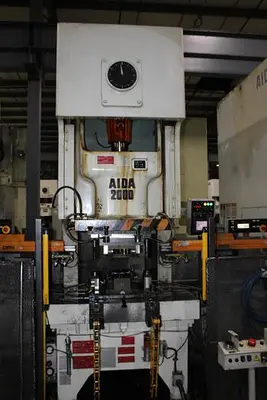

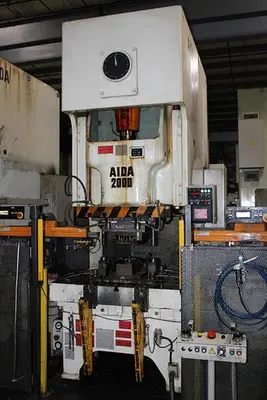

The AIDA NC1-2000(2)E gap frame press offers a substantial 220-ton capacity, perfect for demanding industrial tasks that require precision. It features a stroke length of 9.84 inches and a slide adjustment of 4.33 inches, allowing for versatile application use. The press has a slide area of 34.6 inches by 25.6 inches and an expansive bed area of 54.7 inches by 33.1 inches.
Designed with efficiency and safety in focus, this machine includes an air clutch and brake, air counterbalance, and hydraulic overload protection. Modern safety technologies like light curtains and palm buttons enhance its operational reliability, while hydraulic die clamping supports precision and ease of use.
Despite being a used model from 2013, this press has been maintained to meet high operational standards, ensuring dependable performance. Its sturdy construction and advanced features make it a valuable addition for manufacturers aiming to boost productivity with minimal adjustments.
MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-0996
MANUFACTURE YEAR: 2013
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
