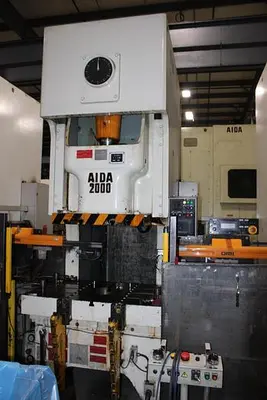

The 2013 AIDA NC1-2000(2)E is a robust gap frame press with a capacity of 220 tons, well-suited for industrial applications that demand precision. It features a stroke length of 9.84 inches and offers a slide adjustment of 4.33 inches, allowing flexibility in its operations. The slide area measures 34.6 inches by 25.6 inches, while the bed area is substantial at 54.7 inches by 33.1 inches, providing ample space for various tasks.

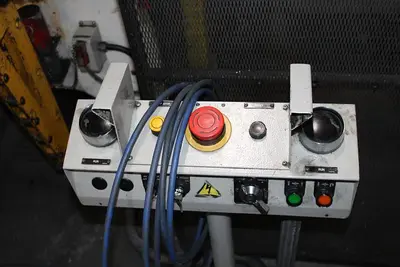

This press is designed with operator safety and efficiency as priorities, featuring an air clutch and brake, air counterbalance, and hydraulic overload protection. Additional safety elements include light curtains and palm buttons, which ensure secure and reliable operation. The hydraulic die clamping further enhances operational ease and precision, making it a practical choice for manufacturing environments.
As a used machine, it has been well-maintained to meet operational standards, offering reliable performance for demanding tasks. Its sturdy construction and advanced features make it advantageous for any manufacturing setup aiming to boost productivity with minimal setup changes.
MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-1002
MANUFACTURE YEAR: 2013
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
