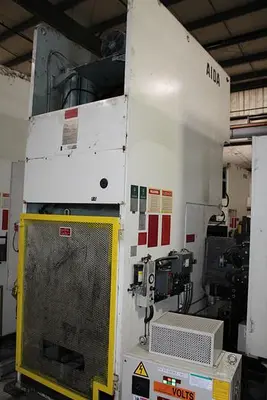

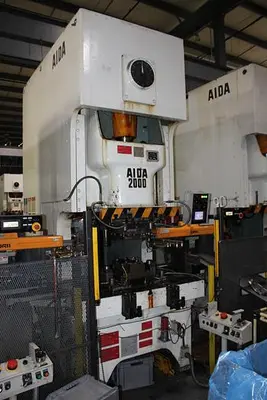

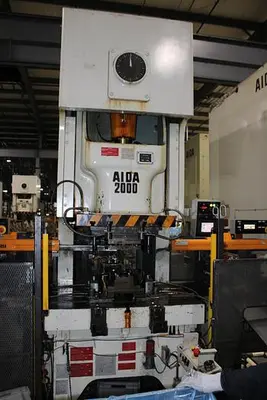

The 2013 AIDA NC1-2000(2)E gap frame press offers a robust 220-ton capacity, suitable for precise industrial applications. This machine boasts a stroke length of 9.84 inches and features a slide adjustment of 4.33 inches, providing versatility in handling various tasks. The slide area dimensions are 34.6 inches (left to right) by 25.6 inches (front to back), supported by a bed area measuring 54.7 inches by 33.1 inches.
Safety and efficiency are prioritized with an air clutch and brake, air counterbalance, and hydraulic overload protection. Modern safety integrations such as light curtains and palm buttons enhance operational safety, while hydraulic die clamping ensures precision and ease of use.
As a pre-owned unit, this AIDA press has been maintained to uphold operational standards, promising reliable performance in demanding environments. Its sturdy construction and advanced features make it a valuable investment for manufacturers seeking to boost productivity with minimal setup adjustments.
MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-0999
MANUFACTURE YEAR: 2013
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
