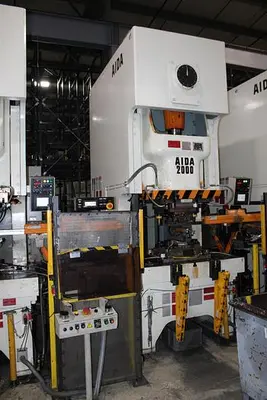

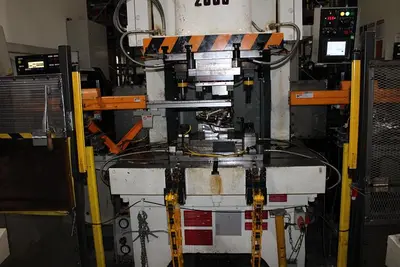

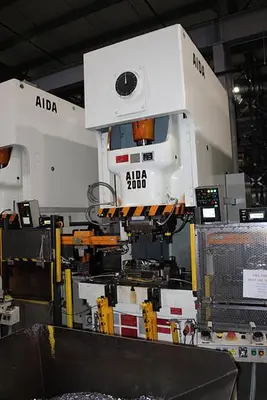

The AIDA NC1-2000(2)E is a robust 220-ton gap frame press designed for demanding operations in metal forming and fabrication. Manufactured in 2018, this used model offers a stroke length of 11.02 inches and an adjustment capacity of 3.15 inches. The shut height is set at 19.09 inches, facilitating various operational depths.

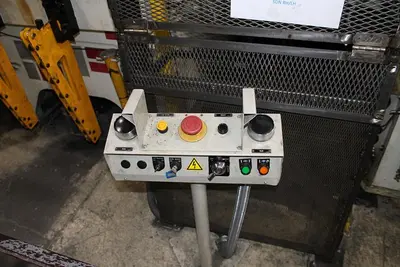

The press features a slide area measuring 34.6 inches left to right by 25.6 inches front to back, and a bed area of 54.7 inches by 33.1 inches. For enhanced safety and performance, the machine is equipped with an air clutch and brake system, air counterbalances, and hydraulic overloads. It also includes light curtains, die clamping mechanisms, and palm buttons to ensure operator safety and ease of use.
Overall, the AIDA NC1-2000(2)E offers a reliable and efficient solution for businesses seeking to enhance their manufacturing capabilities with a high-performance gap frame press.

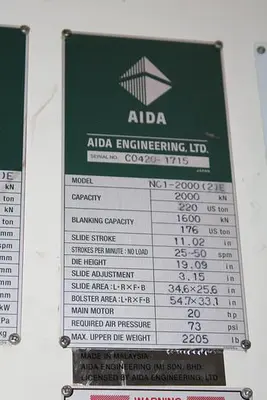

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-1715
MANUFACTURE YEAR: 2018
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 11.02"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 19.09"
SLIDE ADJUSTMENT: 3.15"
