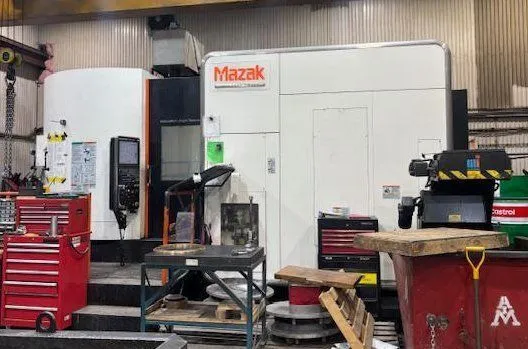

2010 Mazak Multiplex 6200YB Multi-Axis CNC Lathe, Twin-Spindles, Dual Turrets, Y-Axis, Live Tooling, Gantry Loading System, High-Pressure Coolant, 10" Kitagawa Power Chucks, Chip Conveyor
| Max Swing | 12.5" | 317.5 mm |
| Turning Dia | 10.24" | 260.1 mm |
| Machining Length (Shaft work) | 21" | 533.4 mm |
| Machining Length (Chuck work) | 7" | 177.8 mm |
| # Axis | 8 | 8 |
| Chuck Size (Main) | 10" | 254 mm |
| Chuck Size (Sub) | 10" | 254 mm |
| Through Spindle Hole (Main) | 2.95" | 74.93 mm |
| Through Spindle Hole (Sub) | 2.95" | 74.93 mm |
| Power (Main) | 30 hp | 22.4 kW |
| Power (Sub) | 30 hp | 22.4 kW |
| Max RPM (Main) | 5,000 RPM | 5,000 RPM |
| Max RPM (Sub) | 5,000 RPM | 5,000 RPM |
| Max RPM (Milling Tool) | 4,500 RPM | 4,500 RPM |
| X1/X2-Axis Travel | 9.45" | 240.03 mm |
| Z1/Z2-Axis Travel | 17.32" | 439.93 mm |
| Spindle Nose (Main) | A2-6 | A2-6 |
| Spindle Nose (Sub) | A2-6 | A2-6 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Turret Capacity | 2 X 12 | 2 X 12 |
| Made In | Japan | Japan |
| Control | CNC (Mazatrol 640T) | CNC (Mazatrol 640T) |
| Dimensions | 140.55" X 78.54" X 82.28" | 140.55" X 78.54" X 82.28" |
| Weight | 15,840 | 15,840 |
High-pressure coolant system (213 psi)
Twin spindles (5000 rpm)
(2) 10" thru-hole Kitagawa power chucks
Dual-turrets (12 tools)
4500 rpm rotary tools (both turrets)
Gantry loading system (12-pallets)
Y-axis
C-axis
Automatic tool eye (L/R)
Overload detection
Turret air blast
Assorted tooling as pictured (includes 2 live tools)
