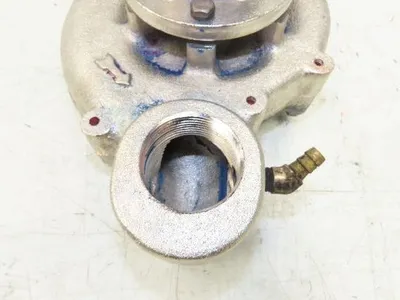

Graymills Superflo Agitator 1.5" Vertical Immersion Pump 2Hp 460V 3PH CEM7037T
USD $360.99
Overview
Specifications
In Good Used Condition. Removed from a Working Environment.
Pump was used for ink, has been cleaned and tested @460V.
Graymills Superflo Agitator series A-24540-KF. (Tag is missing on this one)

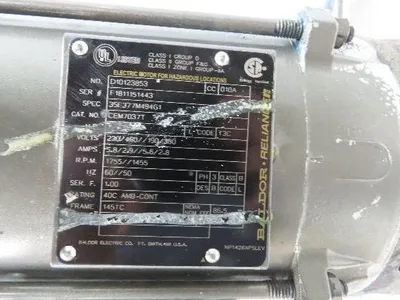

2Hp 230/460V 3PH. Reliance explosion proof motor. CEM7037T (145TC)

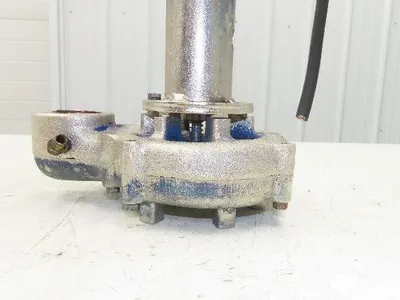

1-1/2" NPT discharge.

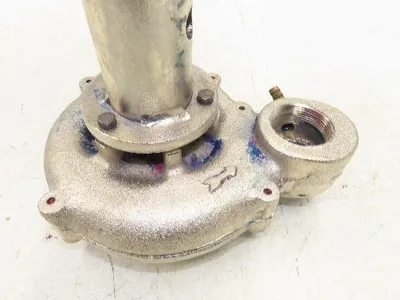

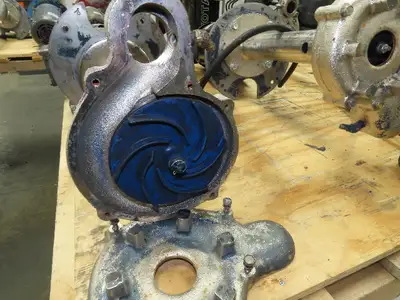

7" Pump casing dia. 5" Plastic impeller. Steel casing, Teflon coated cast iron.
18" Immersion depth. (Length from flange to bottom of pump)

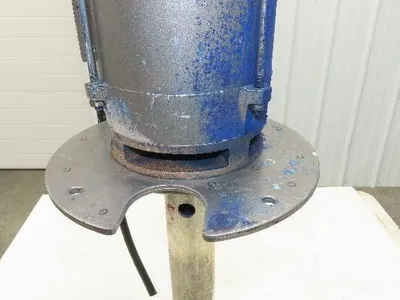

10-1/2" Dia mounting flange.
33" Overall height.
Agitator pumps are designed for use with liquids containing solids which must be kept in suspension or require constant circulation to maintain uniform viscosity. A port in the pump volute bypasses a jet stream of fluid to "stir" tank contents.
