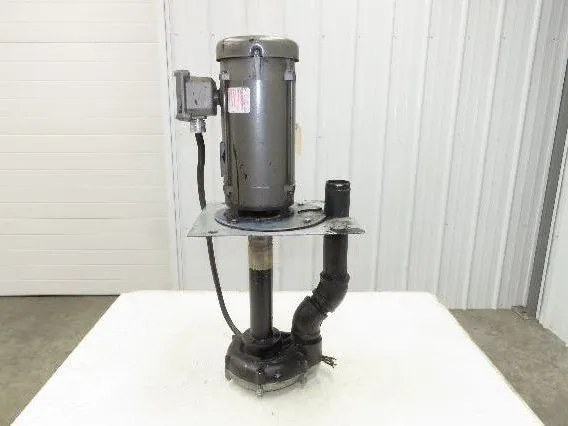

Graymills Superflo Agitator 2" Vertical Immersion Pump 2Hp 460V 3PH CEM7037T

USD $360.99
1 available
Overview
Manufacturer:
GRAYMILLS
Stock #:
272308
Specifications

In Good Used Condition.  Removed from a Working Environment.
Pump was used for ink,  has been cleaned and tested @460V.
Graymills Superflo Agitator series.  (Tag is missing on this one)

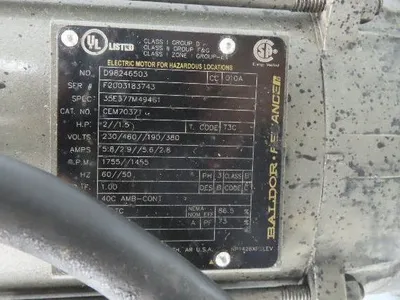

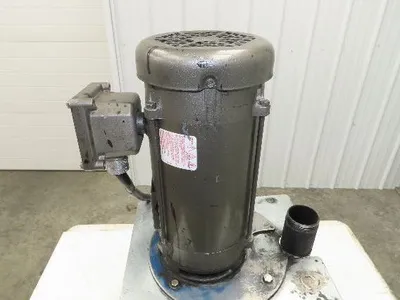

2Hp 230/460V 3PH.  Reliance explosion proof motor. CEM7037T (145TC)
2" NPT discharge.

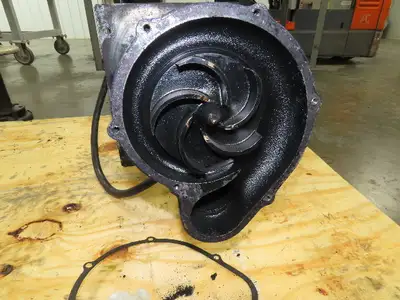

8" Pump casing dia.  5" Plastic impeller.  Steel casing, Teflon coated cast iron.
17" Immersion depth.  (Length from flange to bottom of pump)

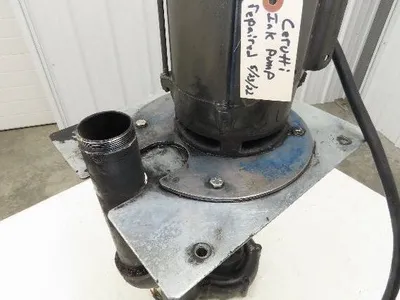

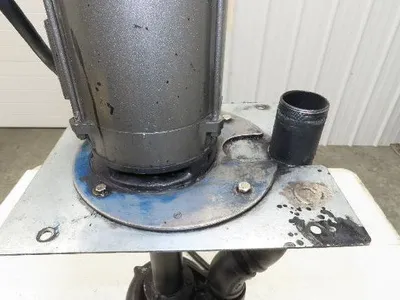

10-1/2" Dia round mounting flange with a square plate added 12"x 14-1/2"
33" Overall height.

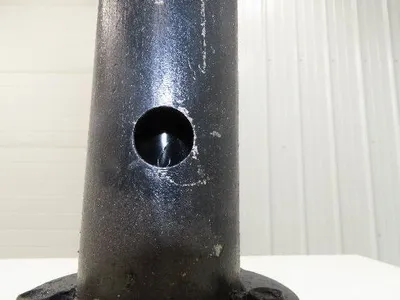

Agitator pumps are designed for use with liquids containing solids which must be kept in suspension or require constant circulation to maintain uniform viscosity. A port in the pump volute bypasses a jet stream of fluid to "stir" tank contents.
