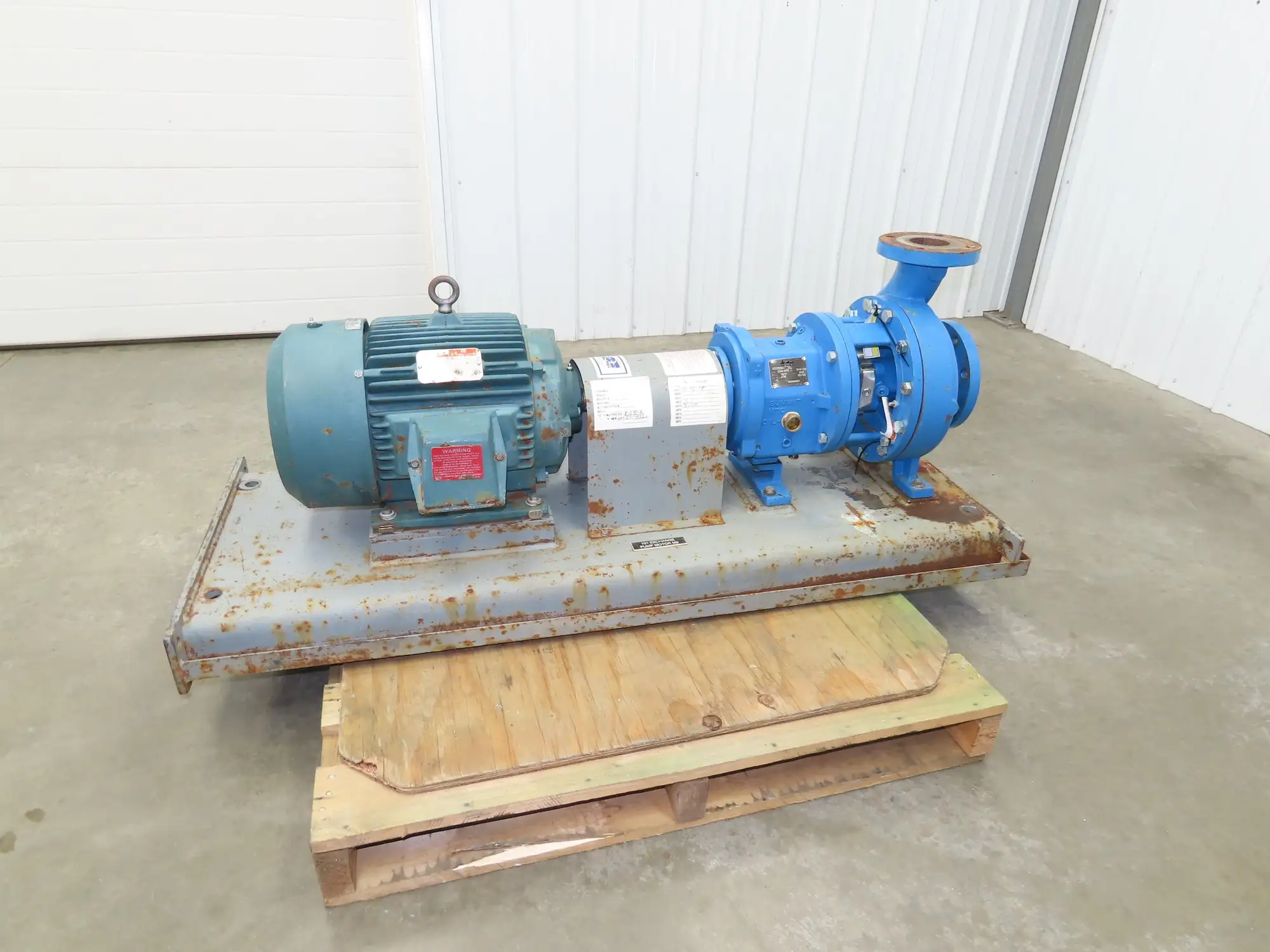

Summit 2196 MTO Centrifugal Pump 3x4x10" SS Impeller 600GPM 380'H 15Hp 3PH Motor

USD $3,324.95
1 available
Overview
Manufacturer:
SUMMIT
Stock #:
303486
Specifications

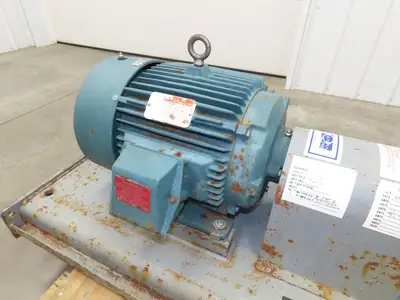

Motor Specs: 15Hp 1765 RPM 230/460V 3PH 254T Reliance XEX
Pump Type and Construction: Horizontal Centrifugal Ductile Iron
Intake Size: 4" (9" Flange Dia)
Discharge Size: 3" (7-1/2" Flange Dia)

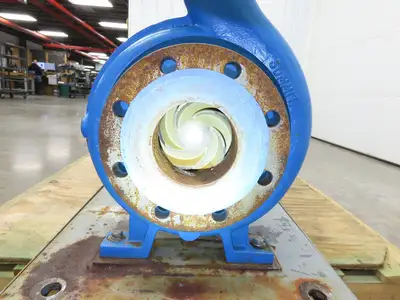

Impeller Size: 9.19" Stainless
Flow Capacity: 300 GPM @ 90 FTH, 600 GPM @ 380 FTH

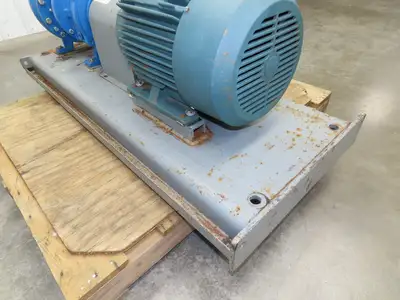

Overall Length: 62"L x 24"W Steel base with drain pan.
In Good Used Condition, Removed from a Working Environment. Tested @460V.
