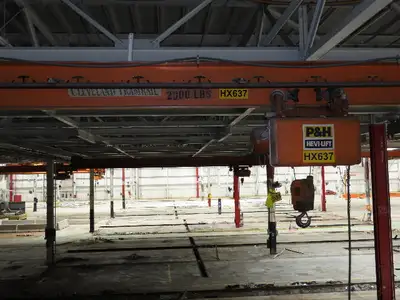

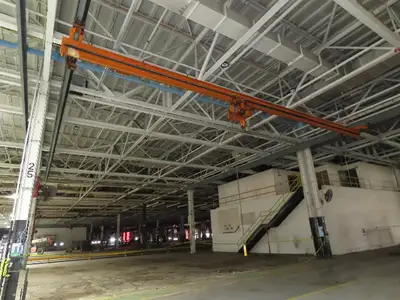

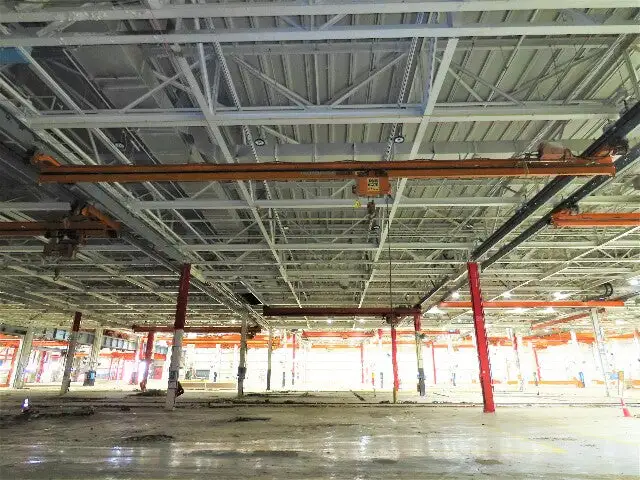

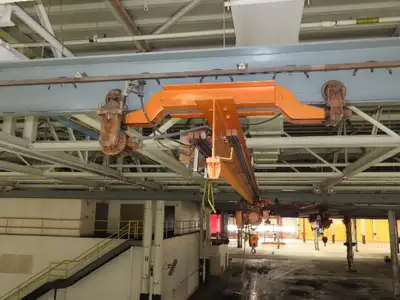

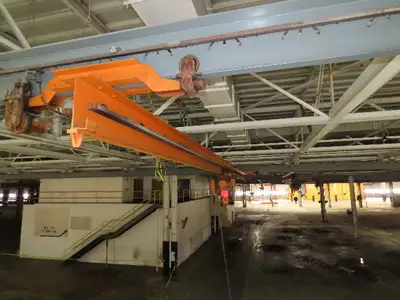

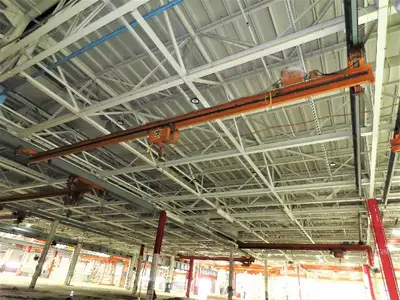

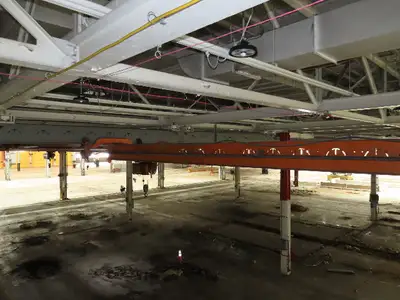

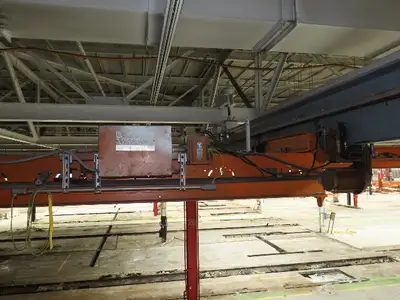

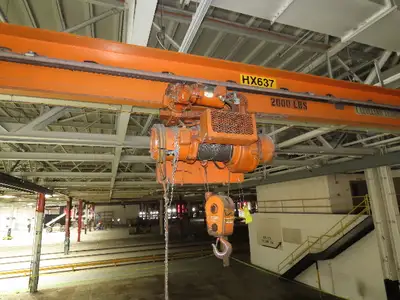

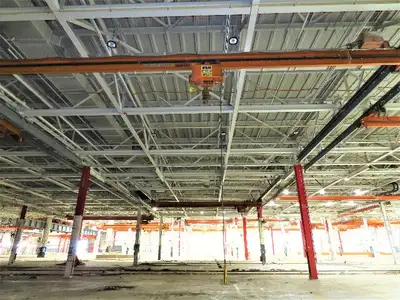

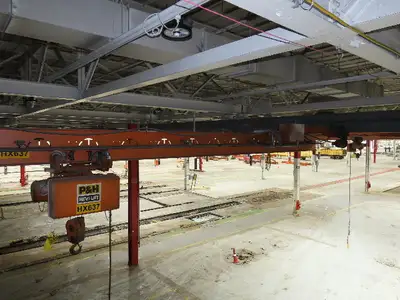

Cleveland Tramrail P&H 1 Ton Single Girder Underhung Bridge Crane 45' 10" Span

Capacity (tons): 1
Capacity (lb): 2000
Volts: 460
Phase: 3
Hanging Style: Underhung
Runway Beam Distance Between Centers (Span): 45' 10"

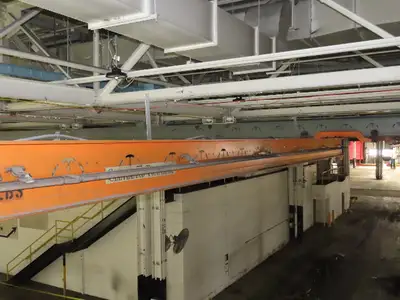

Main Girder Beam Size (Height x Width x Length): 16"H x 9.5"W x 47' 10" Length (3.25" bottom flange)
Bridge Speed (feet per minute): Single speed

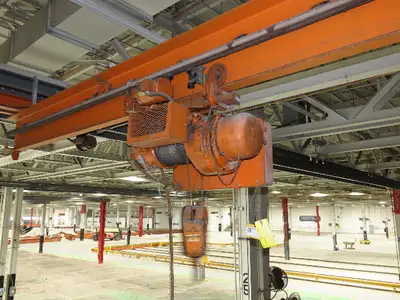

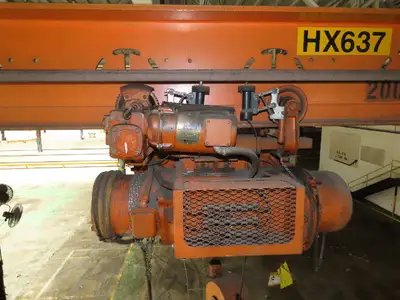

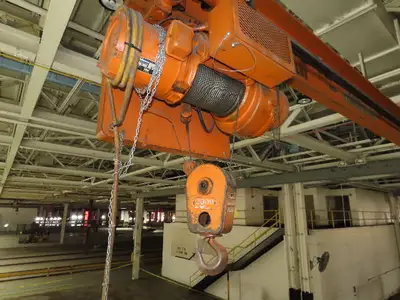

Hoist Brand: P&H
Lift Travel (feet): 26' 7"
Lift Speed (feet per minute): 20

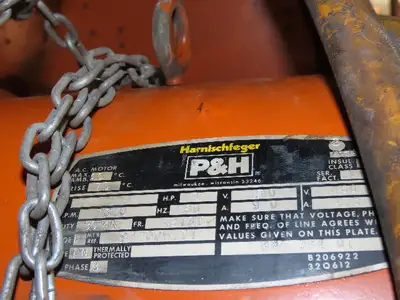

Motor Horse Power: 3
Lifting Medium: Cable
Pendant/Control Length From Bottom of Hoist (ft): 15' 5"
Hoist Power Trolley Speed (feet per minute): 80
Hoist Trolley Length of Travel: 44' 8"
Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 43"
Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 60"
Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 68"
Bridge Crane is in working condition.  Tested on site before removal.
Includes corded pendant only.  Not set up for wireless.
Single speed bridge, trolley and hoist.

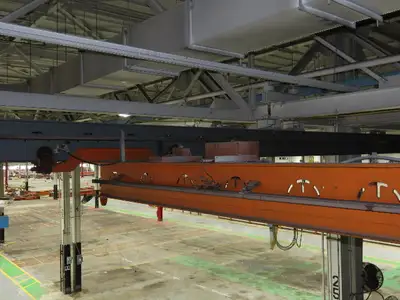

End truck length: 68"
