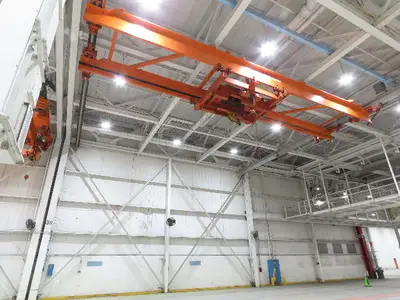

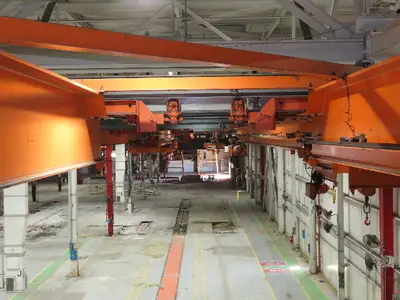

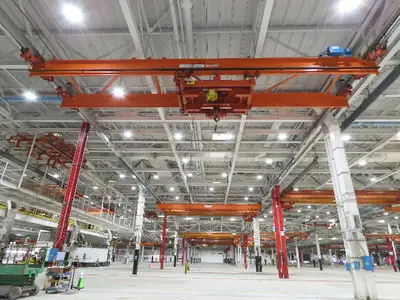

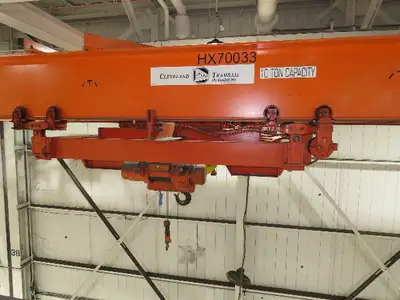

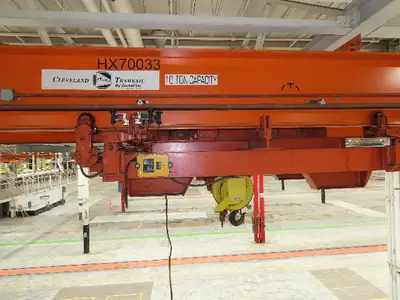

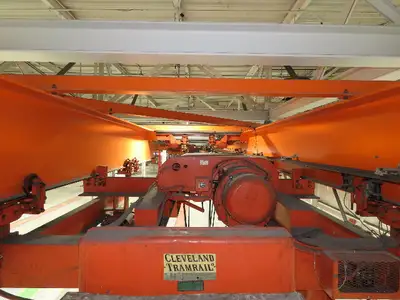

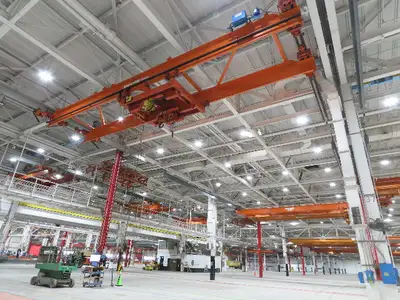

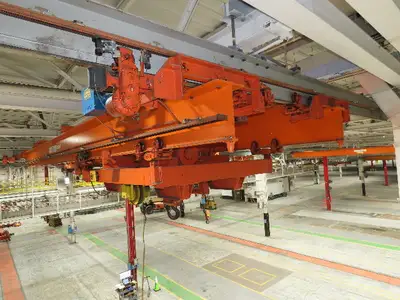

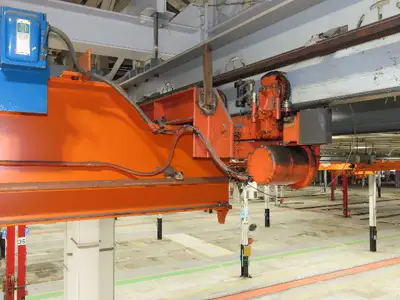

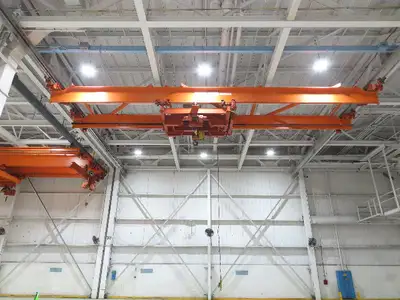

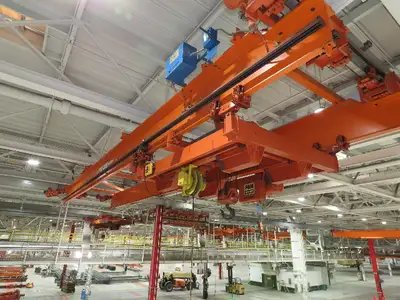

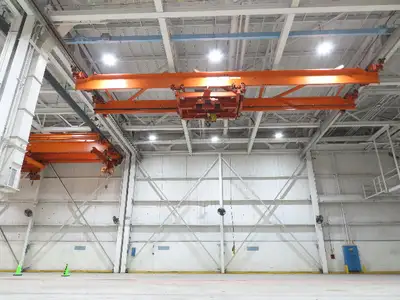

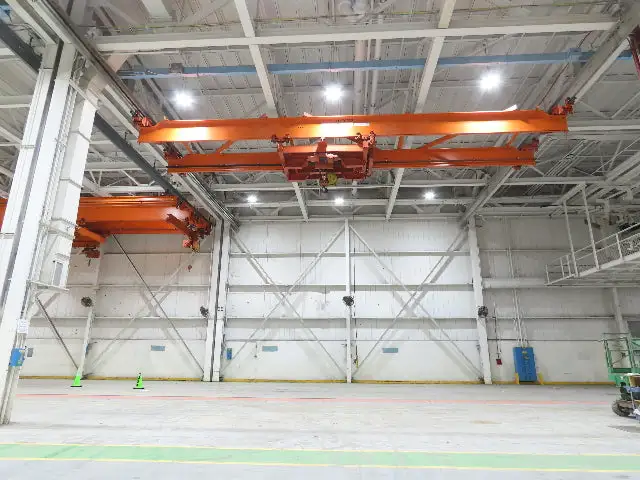

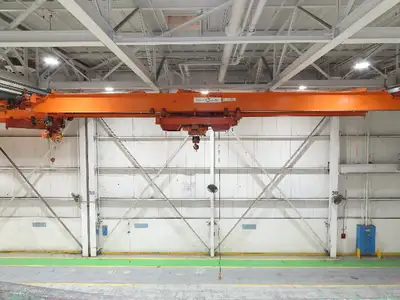

Cleveland Tramrail P&H 10 Ton Double Girder Underhung Bridge Crane 45' 10" Span

Capacity (tons): 10
Capacity (lb): 20000
Volts: 480
Phase: 3
Hanging Style: Underhung
Runway Beam Distance Between Centers (Span): 45' 10"
Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47' 10" Length (3.25" flange) Beam height slopws down to 20" for truck mounting)

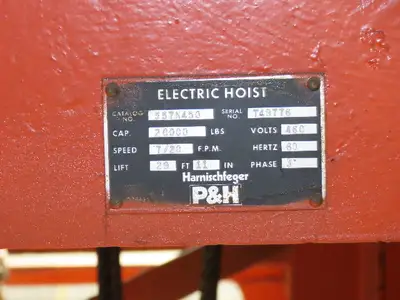

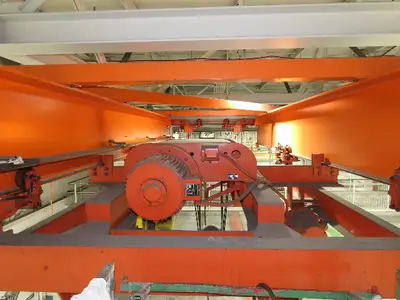

Hoist Brand: P&H
Lift Travel (feet): Main hoist 24" (2nd hoist 23' 2")
Lift Speed (feet per minute): 7/20

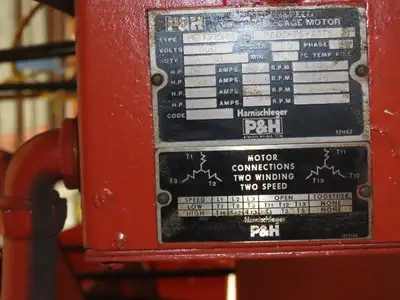

Motor Horse Power: 15
Lifting Medium: Cable
Pendant/Control Length From Bottom of Hoist (ft): 22'
Hoist Power Trolley Speed (feet per minute): 108
Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): Main hoist 52" (2nd hoist hook is 8" lower than main hoist hook)
Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 88"
Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 72"
Bridge Crane is in working condition.  Tested on site before removal.

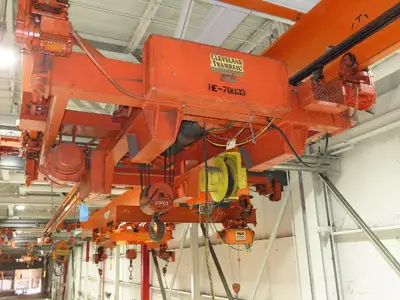

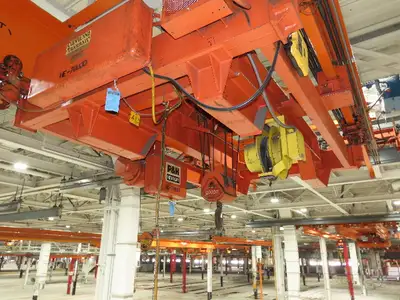

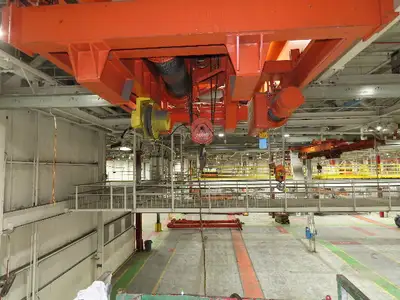

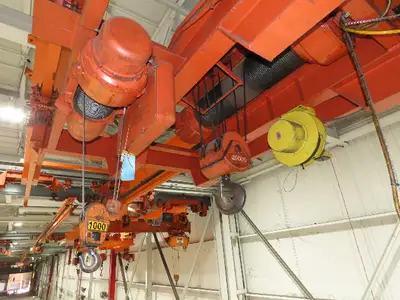

10 ton main hoist with a 1/2-ton auxilliary stationary hoist.

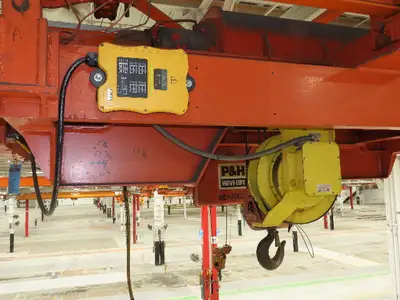

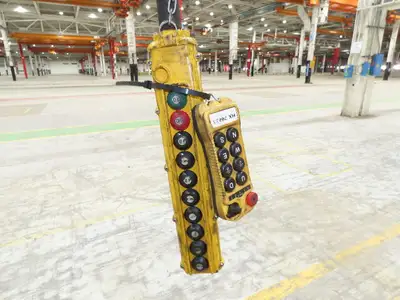

Includes corded and wireless pendants. (Hoist is currently wired to the corded pendant only)
Single speed bridge and trolley.
2-speed main hoist.

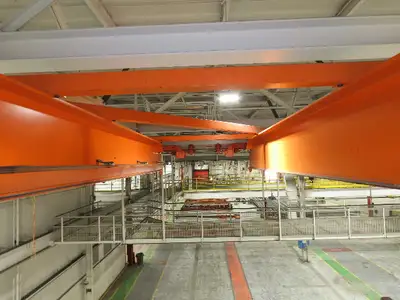

Girder beam span: 7' 11"

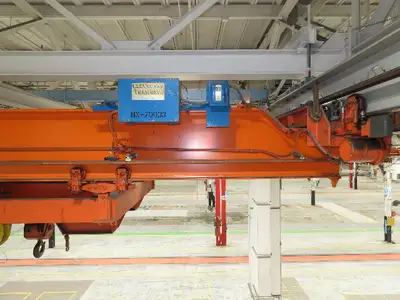

Overall width: 14' 5" (End truck to end truck)
