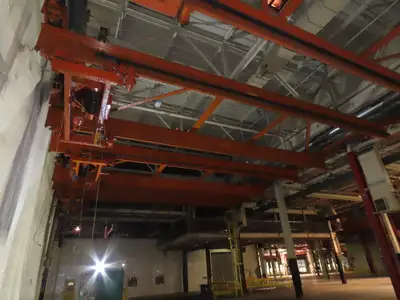

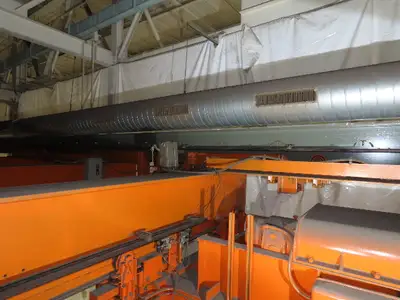

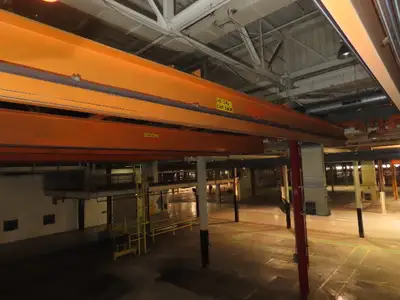

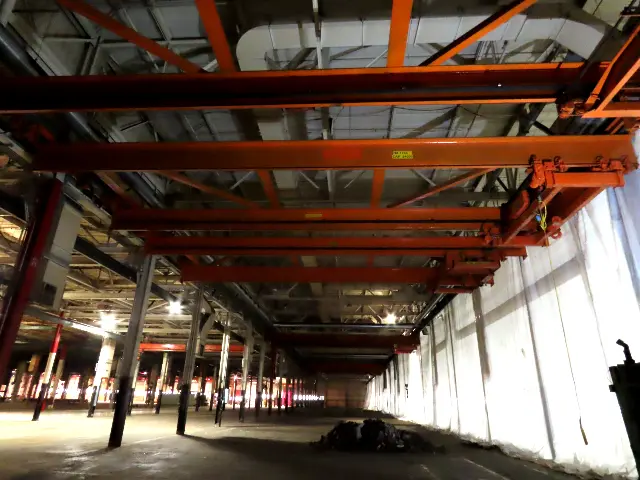

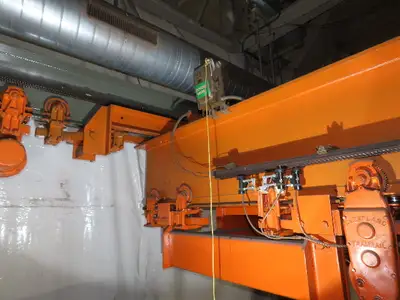

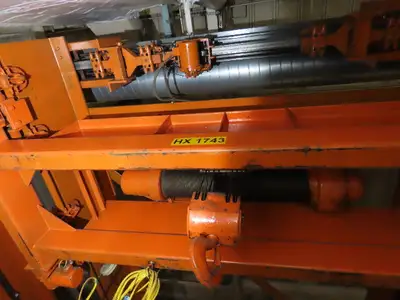

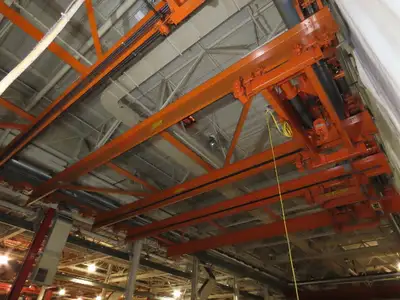

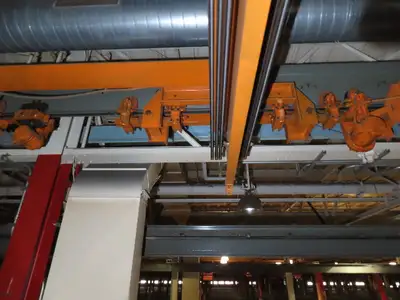

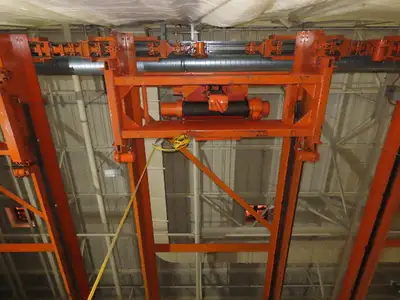

Cleveland Tramrail P&H 12 Ton Double Girder Underhung Bridge Crane 45' Span

Capacity (tons): 12
Capacity (lb): 24000
Volts: 460
Phase: 3
Hanging Style: Underhung
Runway Beam Distance Between Centers (Span): 45'
Main Girder Beam Size (Height x Width x Length): 28"H x 14"W x 47'L

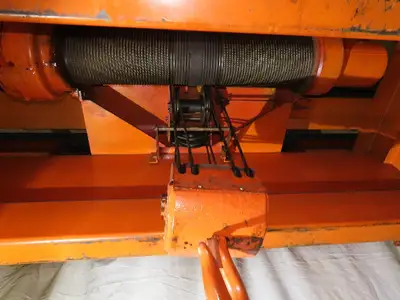

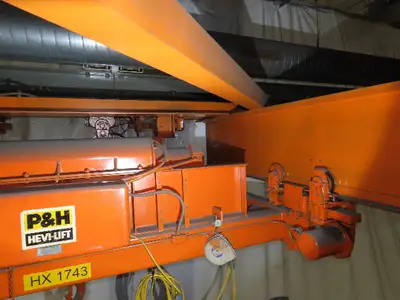

Hoist Brand: P&H
Lift Travel (feet): 26'
Lift Speed (feet per minute): 10 FPM Single speed
Pendant/Control Length From Bottom of Hoist (ft): 24'
Distance From Bottom of Bridge Beam to Bottom of Hook Fully Retracted (inches): 32"
Distance From Bottom of Runway Beam to Bottom of Hook Fully Retracted (inches): 62"
Distance From Top of Bridge Crane to Bottom of Hook Fully Retracted (inches): 70"
Bridge Crane in good used condition.  We were unable to test the crane due to the power being cut.
Includes corded pendant only.  Not set up for wireless.
Single speed bridge and trolley, single speed hoist.

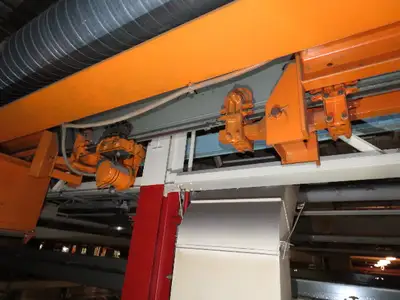

Trolley carriage length: 92"
End truck length:  96"
End truck wheel size:  6"
Girder beam span: 12'
Top braces are welded on.
