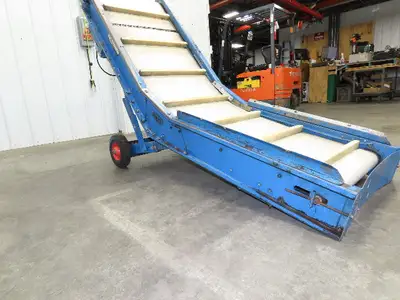

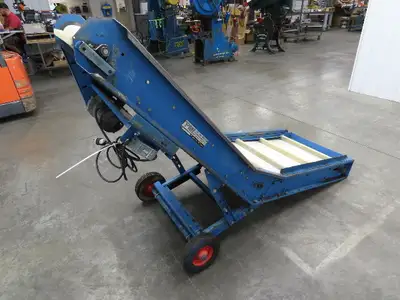

PMI Plastic Machinery Adj Incline Cleated Belt Conveyor 22"W x 90"L 115V 30FPM

Condition & Set-Up: In good working condition. Tested. Steel frame with adjustable incline on rubber wheels.
Drive Type: Chain Drive

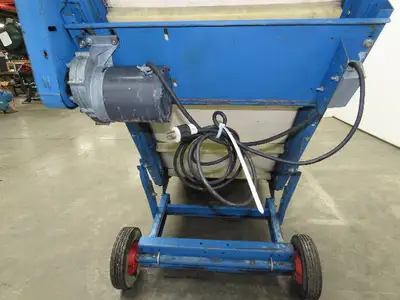

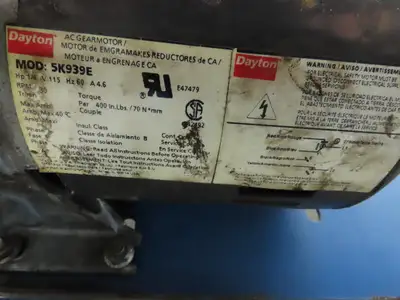

Motor & Gearbox: 1/4Hp 115V 30 RPM Dayton Gearmotor. 5K939E
Bed Length: 36" Infeed, 44 6" Incline length.
Frame Width: 28" (32" Wheel base width)
Bed Width: 22-3/4" (Conveying width)
Belt Width: 23-3/4"
Frame Height: 7"
Belt Speed: 30 FPM
Bed Height (From Floor): Infeed: 7" Discharge: 52" This is the current set up. Incline is adjustable at the front and has a center pivot point. Infeed end is easily lifted up to add more adjustment to incline.

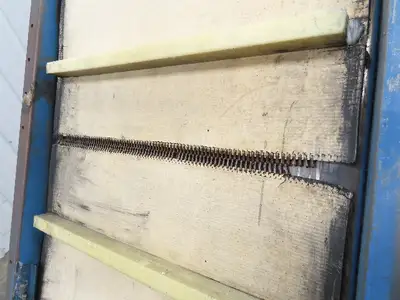

Belt Surface (Type) and Condition: Smooth rubber with cleats spaced 11" apart. 1-1/2" cleat height.
Voltage tested and wired for:: 115V
Overall Length: 90"
