Portec 24"x 90° Spiral Lift Curve Conveyor 19" Belt 230/460V 3PH Drive 72"L

Condition & Set-Up: Used, tested in working condition.
Drive Type: Direct drive, end drive.

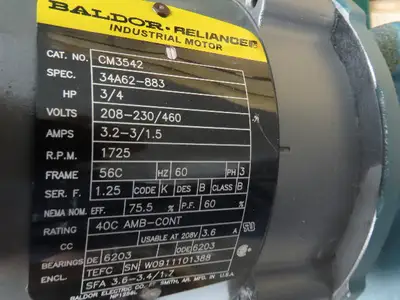

Motor & Gearbox: 3/4Hp 208-230/460V 3PH 15:1 Gearbox
Bed Length: 72" Overall
Bed Width (Inside): 19"
Belt Width: 19-1/2"
Frame Width (Outside): 24"
Frame Height (Sides): 8" Frame + 12" sides
Belt Speed: 125 FPM

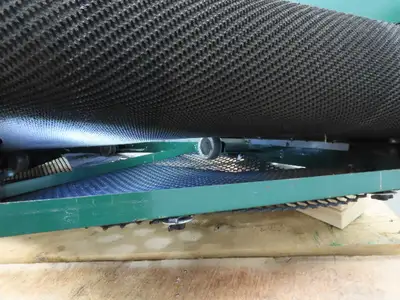

Belt Surface (Type): Grip Top
Overall Length: 72"
Conveyor elevates approximately 6"-7" (Height difference from top to bottom)
