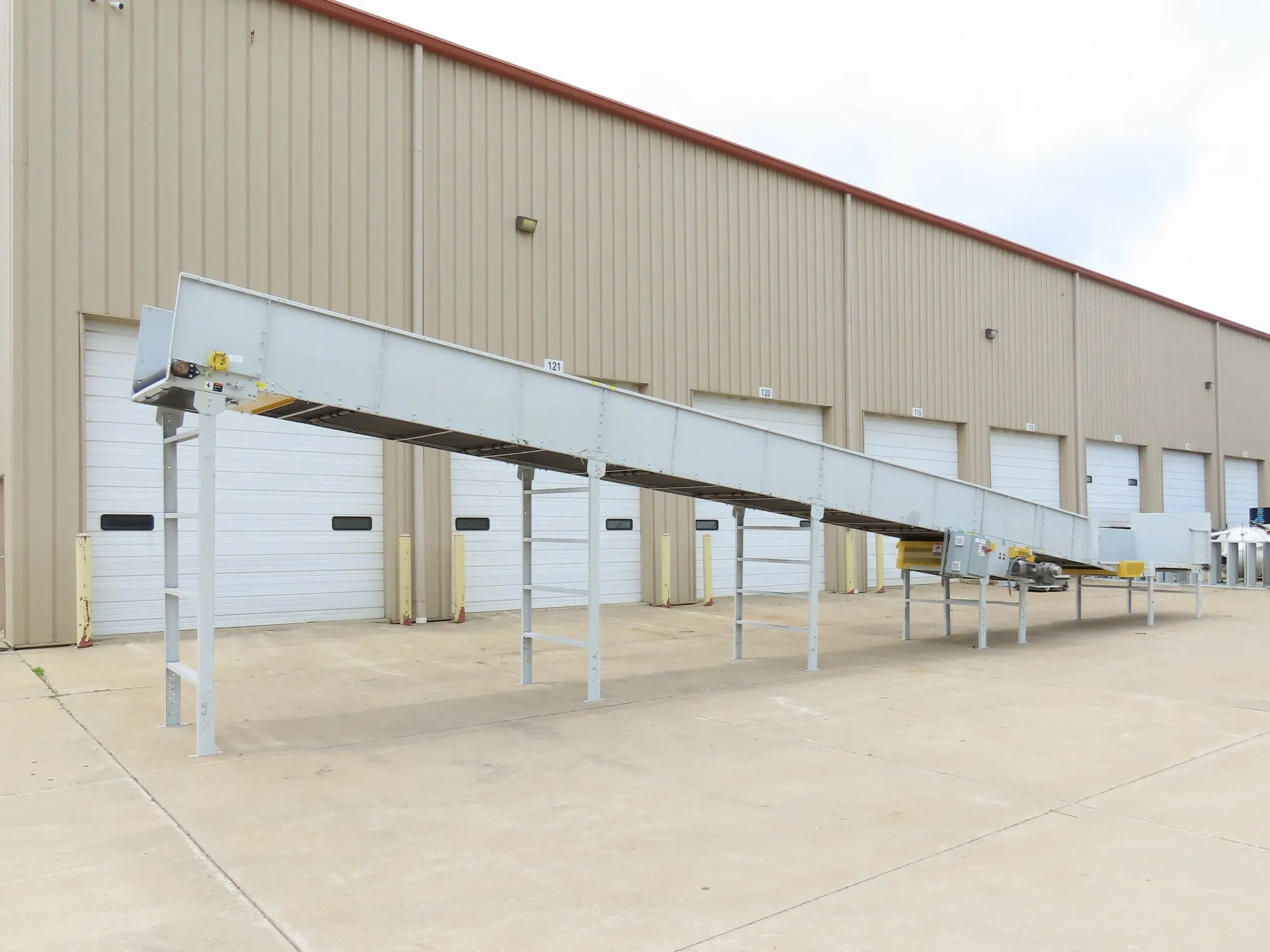

Hytrol BPC 49"x 56' Incline Belt Conveyor 7.5Hp 3PH Center Drive 170fpm 108"H

Hytrol Model BPC Serial # 15V481
Condition & Set-Up: Used condition, removed from a working environment. Tested.
Drive Type: Center drive, direct drive.

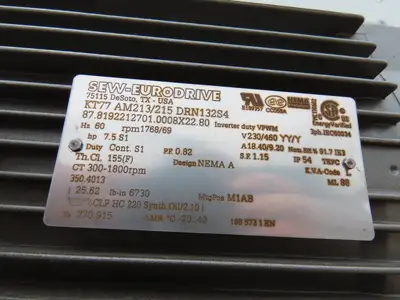

Motor & Gearbox: Sew Eurodrive KT77 AM213/215 DRN132S4 7.5Hp 230/460V 3PH Motor 25.62 Gearbox
Bed Length: 10' Flat entry bed. 46' Incline length.
Frame Width (Outside): 49"
Bed Width (Inside): 49"
Belt Width: 47-1/2"
Frame Height: 3-1/2"
Belt Speed: 170 FPM
Bed Height (From Floor): 28" to 34" max infeed height. 106" to 112" at the top. (Incline has pivot point adjustment)
Belt Surface (Type) and Condition: Rough top fabric
Overall Length: 56'
Voltage tested and wired for:: 460V
Skirting, Guard Rail Height: 24" From bed (Skirting will be removed and included for shipping)
Skid Size: 2 skids: 122"x 72"x 66"H and 130"x 54"x 38"H
Tested in working condition.
Shipping weight is approximate.
