NKE 6"x 22" Double Belt Conveyor Small Parts Slow Feed Chute 220V 1FPM
Overview
Specifications
In Good Used Condition. Removed from a Working Environment. Tested @220V 3PH.
Conveyor was used as a parts feeder for vibratory sorter unit.
This is a double unit, 2 conveyors mounted on steel frame. Conveyors are identical in size and specs except for the discharge chutes.

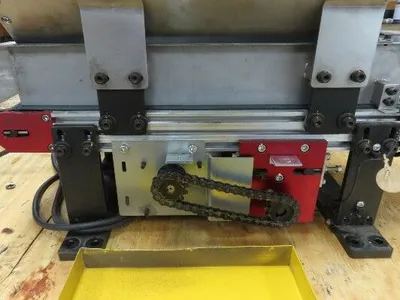

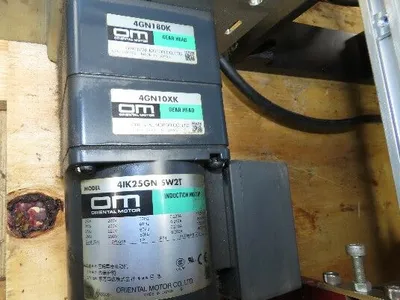

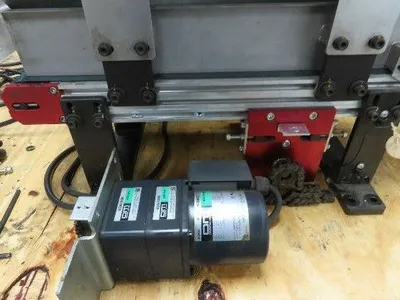

220V 3PH Oriental gearmotor chain drive double reduction. 10:1 and 180:1 reducers.
Aluminum frame, feed chute and sides.
Frame width: 7-1/4"
Belt speed: 1 FPM (Very slow, crawl speed)
Belt width: 5-7/8" (150mm)
Conveyor bed length: 21-1/2"
Conveyor bed height: 6-1/2"
Feed chute: 2-3/4"H x 5-1/4" inside width (on top of conveyor)
Overall height: 11-1/2"
Overall length: 29"
Tensioner type: Underside pulley take-up.
Also has photoeye sensors installed.
